Uniboot vs Standard LC Fiber Cables: Differences, Advantages & Selection Guide

■ Uniboot vs. Standard Fiber Cables: Which One to Choose?

Adapting data centers and communication networks to high-density and optimal space utilization requires careful choosing of fiber optic patch cable types. The two main varieties are LC uniboot fiber cables and LC standard fiber patches. It is worth exploring the advantages of each with a specific installation setting in mind.

In this article, we will draw a parallel between the structure, performance, and applications of LC uniboot and LC standard fiber cables to help you make the right choice.

■ LC Uniboot vs. LC Standard Fiber Cables: Key Differences

Cable Structure

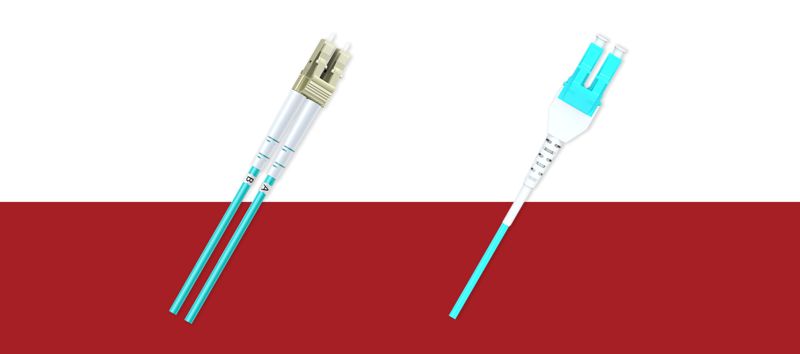

• LC Standard Fiber Cables

  These LC simplex connectors are joined by a clip, and there are two fibers in each connector. The assembly with two fibers is larger and uses more space on panels and chain cables.

• LC Uniboot Fiber Cables

  LC uniboot cables consist of two fibers packed into one round outer jacket. A standard duplex patch cord cable is bulkier by up to 50%. Therefore, increased airflow, neater cable management, and higher port density is done in patch panels or enclosures.

Connector Options

• Flat Clip Uniboot

  By providing additional space between the connectors, this design allows easier access for inserting or removing cables in crowded places.

• Push-Pull Tab Uniboot

  This is made for tool-less insertion and removal inside high-density panels. There is a tab on the connector to make it easy to grip and hold it tightly, even in a cramped space.

• Polarity Reversal

  In most cases, LC uniboot cables support polarity switching without the use of tools, increasing the simplicity of maintaining correct signal transmission in duplex communication as no changes of the wiring or the connectors is needed.

■ Which Type of Fiber Patch Cable Should You Choose?

✅ Choose LC Uniboot Cables If:

• Space Is Limited

  Thanks to their compact structure, these cables are suitable for high-density racks, server rooms, and snug enclosures.

• Quick Maintenance Is Required

  The push-pull tab design and the easy polarity reversal reduce the required time either during the installation or system upgrade.

• Better Cable Management Is Needed

  The decreased bulk decreases the resistance and more air circulation, leading to organized routing in cable trays and patch panels.

✅ Choose LC Standard Cables If:

• Cost Is a Priority

  Standard LC cables are more cost-effective, and it is easy to install them as a large-scale project without any restriction in space.

• The Existing System Uses Standard LC Connectors

  Generally, if your existing setup uses standard LC patch cords, it is easier to continue with the same system without much hassle and expense on acquiring new connectors.

■ LC Uniboot vs. LC Standard Fiber Cables Summary Comparison Table

■ Conclusion

LC uniboot and LC standard fiber cables are both dependable vehicles for optic links, but each performs admirably in other areas. If limited space, easy maintenance, and flexible polarity reconfiguration are the priorities, uniboot cables are the superior choice. On the other hand, standard LC cables remain a go-to choice for simple networks or low-cost deployments, due to its reliability and interconnections.

If you are uncertain about which type of fiber cable would best suit your environment, it is advisable to assess your space availability, installation frequency, and the total cost of deployment so as to arrive at the right decision.
