RS485 Cable for Modbus & BACnet - Reliable Industrial Connectivity

Model:
RS-485
Brand:
hellosignal
Categories:
Industrial Data Cable
Impedance:
120 ohm
Certificates:
UL, ETL, CE, CPR, RoHS
Packing:
roll, wooden spool, carton, pallet
Delivery time:
Normally 25 working days
Port of Loading:
NINGBO, SHANGHAI

Availability:



Inquire

Product Description

■ RS485 Cable

RS485 cable refers to a type of cable that is used specifically to carry out the RS485 communication standard. It is usually a twisted pair cable consisting of two or three wires, two of which transmit the data, and the other one, which is optional, is for grounding. RS485 is the cable standard enforcing reliable data transmission even over long distances or in environment fluctuating electric fields. RS485 cables have the following attributes:

Twisted Pair: This reduces the electromagnetic interference (EMI) because the wires are twisted together.

Differential Signaling: RS485 employs a differential signaling technique, contributing to the reduction of noise by sending one wire the signal while the other wire sends a negative copy.

Long Distance: RS485 can send out data over longer distances (up to 1200 meters), maybe even double the distance encoded in some other serial communication standards.

Multi-drop Capability: The system cases are allowed for many devices to connect to the same bus (cable).

Industrial Applications: RS485 is frequently adopted in industrial automation processes, such as controlling robots and devices that are required to cross long distances while having noise immunity levels.

■ Common Types of RS485 Cables

Twisted Pair Cables: These are the most popular types, often with a shield guaranteeing additional EMP (Electromagnetic Interference) reduction.

Shielded Cables: Shielding protects noise interference via a shield as an additional protective element.

Unshielded Cables: These are applicable for the circumstances where the background noise is not so high.

Cat5/Cat6 Ethernet Cables: It is noticed that these wire connections are not purpose-built for RS485 communications; still, they could be used, providing they are within the range where the wires performance will not be degraded.

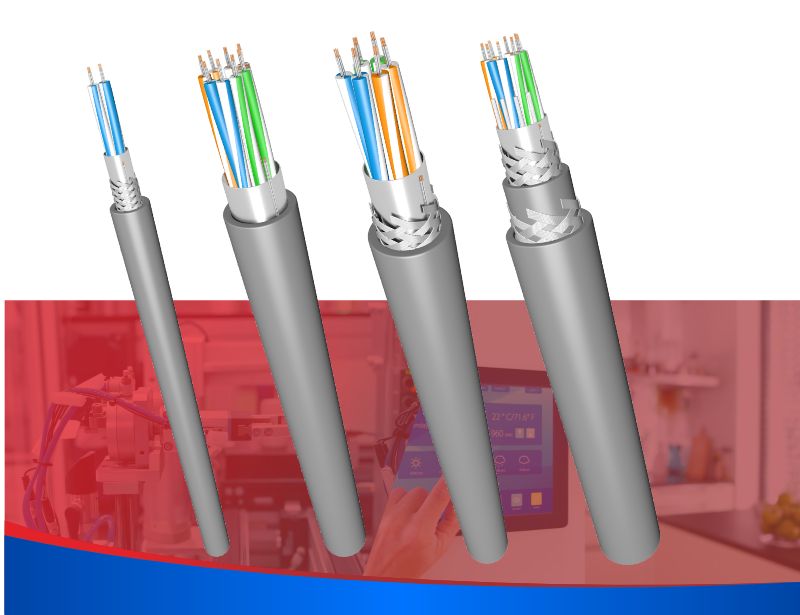

What is an RS485 Cable

■ When to use RS485 cables

Long distances: When data is transported over wiring length higher than 100 meters.

Noisy environments: When the signals are exposed to interference from other electrical equipment radiation.

Multi-drop networks: It is the situation when one bus serves several devices.

Industrial applications: Commonly used in critical industries, where reliability and long-distance communication are considered to be vital.

■ RS485 Cable Selection Guide

Reliable RS485 Cables for Every Application

Looking for the right RS485 cable? Whether you're working in clean indoor offices or demanding industrial environments, choosing the correct cable makes all the difference in signal reliability and system safety.

This guide helps you easily understand the key differences and pick the best-fit model.

RS485-RS232 Cable

■ Shielding Type Comparison

Shielding Type	Features	Interference Protection	Recommended Use
Foil Shield	Basic aluminum foil layer	Basic	Indoor use, low EMI areas
Foil + Braid Shield	Foil + tinned copper braid (65–90% coverage)	Moderate to Strong	Industrial control systems
Foil + Braid + Steel Armor	Enhanced braid + steel wire armor	Maximum	High EMI, outdoor or underground

■ Jacket Material

Jacket Type	Features	Ideal Conditions
PVC	Flexible, economical	Indoor, general use
LSZH (Eca Rated)	Flame retardant, low smoke, halogen-free	Data centers, eco-conscious sites
PE	UV-resistant, water-resistant, durable	Outdoor ducting or burial
FEP / CMP	High-temp resistant, fire-rated	Vertical shafts, IT rooms
LSZH-SWB-LSZH	Full protection with armor & fire safety	Extreme environments

■ Insulation Materials

Insulation Type	Key Benefit	Applications
FPE	Low capacitance, long-distance	High-performance signal systems
PE	Durable, cost-effective	Industrial setups
FEP	Heat and chemical resistant	High-temp or harsh environments

■ Conductor & Pair Count

Wire Gauge (AWG)	Usage
28 AWG	Space-saving, short distance
24 AWG	Longer distance, lower attenuation

■ Conductor & Pair Count

Application Area	Suggested Series	Key Features
Indoor RS485/RS232 Communication	730 Series	Foil shield, PVC jacket, budget-friendly
Medium EMI Industrial Environment	731 / 7320 Series	Dual shielding (foil + braid), 24 AWG
EMI-sensitive or Long-Distance Use	7320 Series (90% braid)	Enhanced shielding, superior signal quality
Fire-Resistant or Halogen-Free Demand	732011 / 732021 / 732031	LSZH or FEP jackets, UV-resistant
Outdoor / Duct / Burial Installation	732025 (PE Jacket)	Weatherproof and abrasion-resistant
Harsh Industrial, Underground, High EMI	7320x6 (Armored)	SWB armor + LSZH jacket, triple protection

Need Help Choosing?

Let our experts help you select the ideal cable for your environment.
Contact us for a customized solution, datasheet, or bulk OEM support.

Michael

Michael is a Product manager and Chief Executive Officer at Zion Communication.

Specializes in copper communications, security systems, and network cabling.

michael@zion-communication.com

+86 13757188184

■ FOIL

PIC	SKU	Conductor	Insulation	Shield	Jacket	Environmental Suitability
	73004	4 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester	PVC	Indoor use
	73005	5 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester	PVC	Indoor use
	73006	8 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester	PVC	Indoor use
	73012	12 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester	PVC	Indoor use

■ FOIL+BRAIDING

PIC	SKU	Conductor	Insulation	Shield	Jacket	Environmental Suitability
	73102	2 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 65%	PVC	Indoor (Not Riser or Plenum)
	73103	3 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 65%	PVC	Indoor (Not Riser or Plenum)
	73104	4 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 65%	PVC	Indoor (Not Riser or Plenum)
	73105	5 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 65%	PVC	Indoor (Not Riser or Plenum)

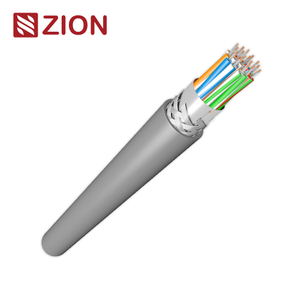

	73106	8 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 65%	PVC	Indoor (Not Riser or Plenum)
	73112	12.5 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 65%	PVC	Indoor (Not Riser or Plenum)
	73118	18 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 65%	PVC	Indoor (Not Riser or Plenum)
	73125	25 pairs 28 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 65%	PVC	Indoor (Not Riser or Plenum)

PIC	SKU	Conductor	Insulation	Shield	Jacket	Environmental Suitability
	73201	1 pair 24 AWG Stranded TC	PE (Polyethylene)	Aluminum + Polyester +TC Braid 90%	PVC	Indoor
	73202	2 pairs 24 AWG Stranded TC	PE (Polyethylene)	Aluminum + Polyester +TC Braid 90%	PVC	Indoor
	73203	3 pairs 24 AWG Stranded TC	PE (Polyethylene)	Aluminum + Polyester +TC Braid 90%	PVC	Indoor
	73204	4 pairs 24 AWG Stranded TC	PE (Polyethylene)	Aluminum + Polyester +TC Braid 90%	PVC	Indoor

PIC	SKU	Conductor	Insulation	Shield	Jacket	Environmental Suitability
	732011	1 pair 24 AWG Stranded TC	PE (Polyethylene)	Aluminum + Polyester +TC Braid 90%	LSZH Eca	Indoor, LSZH, UV
	732013	1 pair 24 AWG Stranded TC	FEP (Fluorinated Ethylene Propylene)	Aluminum + Polyester +TC Braid 90%	PVC CMP	Indoor
	732014	1 pair 24 AWG Stranded TC	FEP (Fluorinated Ethylene Propylene)	Aluminum + Polyester +TC Braid 90%	FEP CMP	Indoor, Oil Resistant
	732021	2 pairs 24 AWG Stranded TC	PE (Polyethylene)	Aluminum + Polyester +TC Braid 90%	LSZH Eca	Indoor, Sunlight-Resistant, Non-Halogenated, Oil Resistant
	732023	2 pairs 24 AWG Stranded TC	PE (Polyethylene)	Aluminum + Polyester +TC Braid 90%	PVC CMP	Indoor
	732024	2 pairs 24 AWG Stranded TC	FEP (Fluorinated Ethylene Propylene)	Aluminum + Polyester +TC Braid 90%	FEP CMP	Indoor, Oil Resistant
	732025	2 pairs 24 AWG Stranded TC	PE (Polyethylene)	Aluminum + Polyester +TC Braid 90%	PE	Water Exposure, Below-Grade Conduit, Indoor & Outdoor Use, Sunlight Resistant
	732031	3 pairs 24 AWG Stranded TC	PE (Polyethylene)	Aluminum + Polyester +TC Braid 90%	LSZH Eca	Indoor, Non-Halogenated, Sunlight & Oil Resistant
	732041	4 pairs 24 AWG Stranded TC	PE (Polyethylene)	Aluminum + Polyester +TC Braid 90%	LSZH Eca	Indoor, Non-Halogenated, Sunlight & Oil Resistant

■ FOIL+BRAIDING+SWB

PIC	SKU	Conductor	Insulation	Shield	Amour	Jacket	Environmental Suitability
	732016	1 pair 24 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 90%	Steel Wire Braiding	LSZH/SWB/LSZH	Indoor, LSZH, UV
	732026	2 pairs 24 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 90%	Steel Wire Braiding	LSZH/SWB/LSZH	Indoor, Sunlight-Resistant, Non-Halogenated, Oil Resistant
	732036	3 pairs 24 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 90%	Steel Wire Braiding	LSZH/SWB/LSZH	Indoor, Sunlight-Resistant, Non-Halogenated, Oil Resistant
	732046	4 pairs 24 AWG Stranded TC	FPE (Foam Polyethylene）	Aluminum + Polyester +TC Braid 90%	Steel Wire Braiding	LSZH/SWB/LSZH	Indoor, Sunlight-Resistant, Non-Halogenated, Oil Resistant

Need Help Choosing?

Let our experts help you select the ideal cable for your environment.
Contact us for a customized solution, datasheet, or bulk OEM support.
