Knx cable
hellosignal

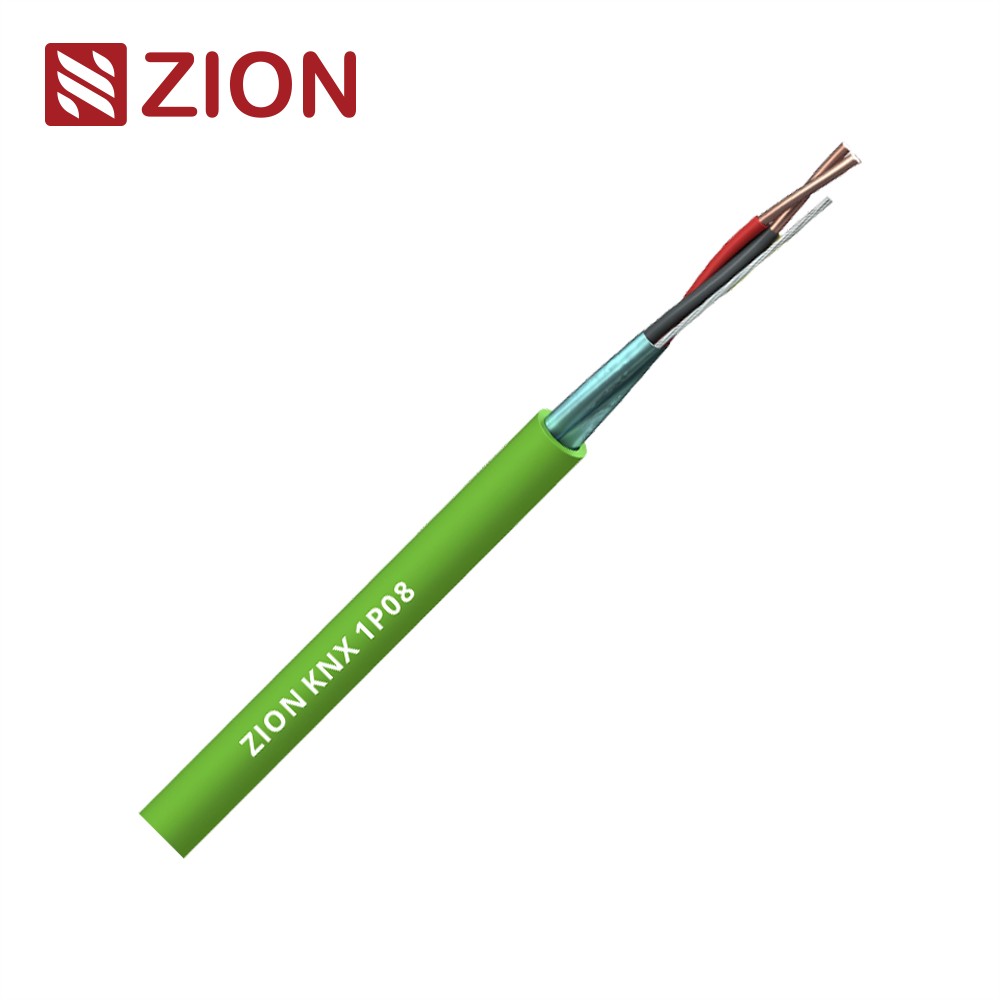

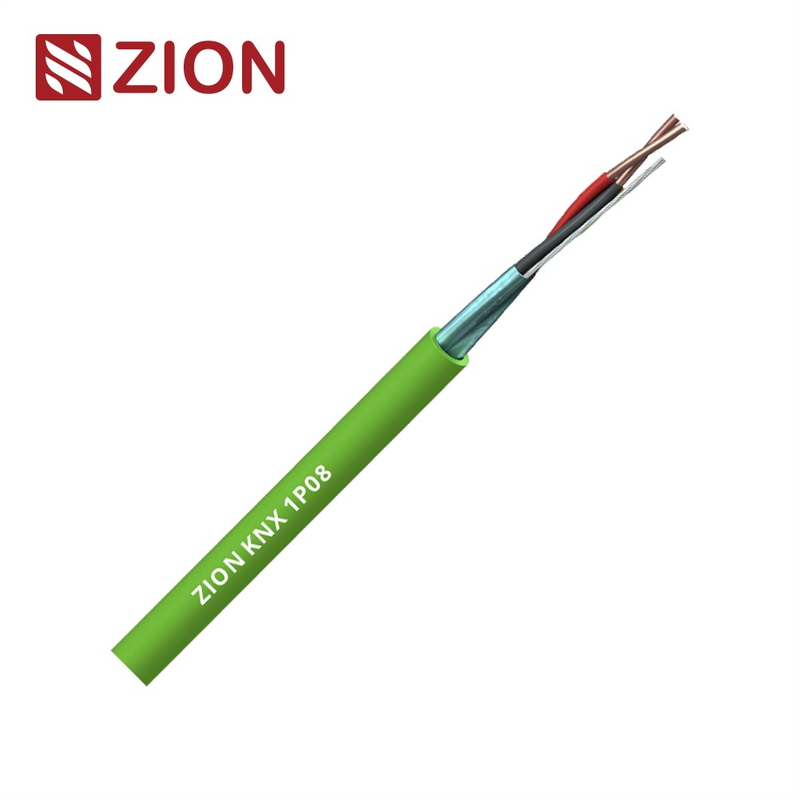

KNX1P08-OE
Power and Control Cables
SKU: KNX1P08-OE
Designed for intelligent building automation systems, this cable is ideal for
Lighting control
Blind/shutter control
Air-conditioning and heating systems
Security system integration
ZION Certified KNX cables ensure seamless communication between devices, enabling smooth system operation, simple scalability, and a smart environment that is comfortable, energy-efficient, and secure.

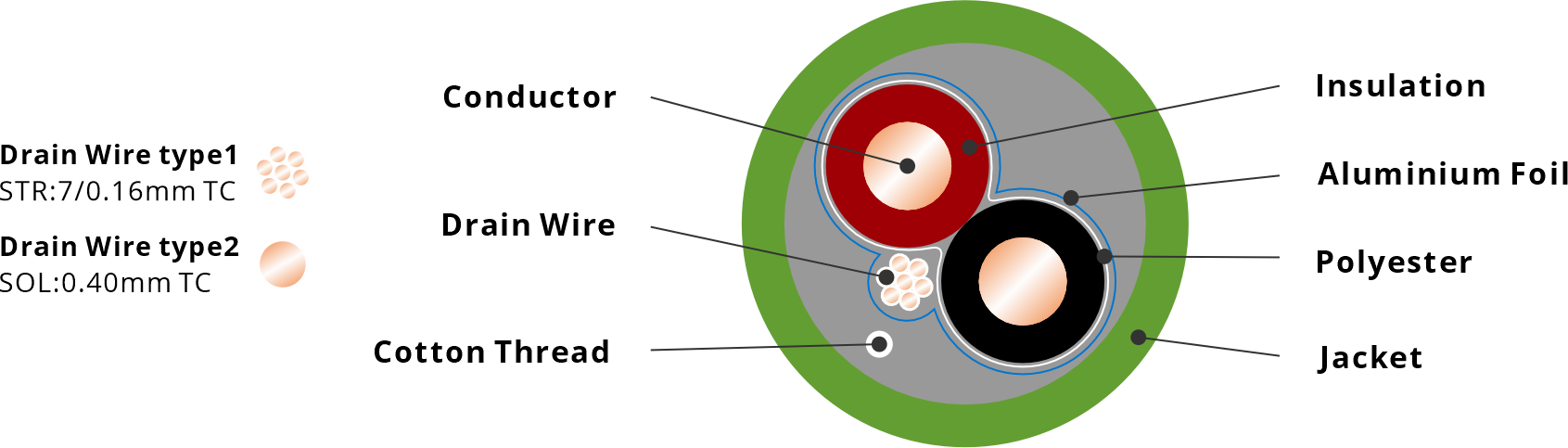

Conductor OD & Material : | 1/0.8mm Bare Copper | ||
Cross Section: | 0.50 mm2 | ||
Number of Pairs : | 1 | ||
Conductor Counts: | 2 | ||
Insulation Material : | Polyethylene (PE) | ||
Insulation Diameter: | 1.40±0.05 mm (Non.Thickness:0.30mm) | ||
Insulation Non.Thickness: | 0.30mm | ||
Insulation color: | 1 Red 2 Black or Blue | ||
Overall Tape : | Polyester | ||
Drain Wire : | Tinned Copper (STR:7/0.16mm or SOL: 0.4mm) | ||
Overall Screen : | Overall Aluminium Foil (＞110% Coverage) | ||
Sheath Material : | Low Smoke Halogen Free (LSHF/LSZH) | ||
Sheath Diameter: | 5.50±0.30 mm | ||
Sheath Non.Thickness: | 1.20 mm | ||
Sheath Colour : | Green | ||
Nominal Conductor Resistance : | < 38.5 Ω/km |
Insulation Resistance : | > 200MΩ.M |
Capacitance (Cond. to Cond.) | 50 pF/m |
Voltage Rating : | 300V |
Test Voltage : | 4kV for 1 minutes |
Overall Diameter : | 5.5 ± 0.3mm |
Operating Temperature Rating : | -20°C to +70°C |
Min.Bend Radius During Installation: | 55 mm |
Min.Setting Radius: | 27.5 mm |
Flame Retardant : | BS EN 60332-1-2 |
Low Smoke Generation : | BS EN 61034-2 |
Halogen Gas Emission : | BS EN 60754-1&2 |
RoHS Compliant : | Yes |
CE Compliant : | LVD (2014/35/EU), CPR (305/2011) |
CPR Classification : | Eca (EN50575:2014+A1:2016) |
Marking on Sheath | ZION NO.KNX1P08 KNX CABLE LSZH Eca ×××M |
Inner Package | Wooden Spool |
Outer Package | Carton/Color Box, Pallet (or Per customer's request) |
KNX2P08-OE100 | 100M/Wooden Spool |
KNX2P08-OE300 | 300M/Wooden Spool |
KNX2P08-OE500 | 500M/Wooden Spool |
KNX2P08-OE1000 | 1000M/Wooden Spool |
Delivery time | Normally 25 days after received the deposit. |
Brand | ZION OR OEM |
