Unitube Non-armored Cable

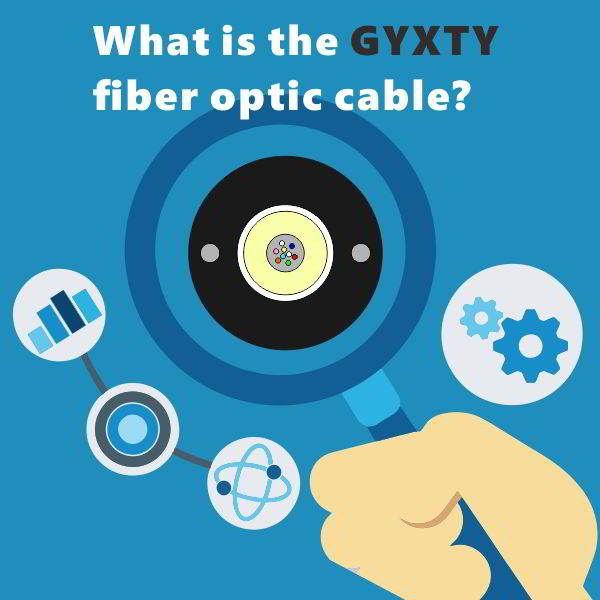

Structural features：Central tube cable(also called loose tube cables)
Optical fiber applications place: Overhead laying
Fiber optic cable types：GYXTY
Fiber Numbers:1-12 fibers
Recommended index: 3 stars
Outdoor communication, metal reinforcement member, center tube, fully filled, entrained reinforcement polyethylene sheathed cable.
The fIbers ,250μm，are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.Over the tube,water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides .The cable is completed with a polyethylene (PE) sheath.
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube ling compound ensure a critical protection of Two parallel steel wires ensure tensile strength
PE PE sheath protects cable form ultraviolet radiation
Small diameter, light weight and friendly installation
Long delivery length
Standards
Complies with Standard YD/T 769-2010.
No. | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
No. | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
No. | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
No. | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
Item | Specification |
Fiber type | Single mode |
Fiber material | Doped silica |
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
£ 0.35 dB/km £ 0.32 dB/km £ 0.21 dB/km £ 0.24 dB/km |
Point discontinuity | £ 0.05 dB |
Cable cut-off wavelength | £ 1260 nm |
Zero-dispersion wavelength | 1300 ~ 1324 nm |
Zero-dispersion slope | £ 0.092 ps/(nm2.km) |
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm | £3.5 ps/(nm. km) £5.3 ps/(nm. km) £18 ps/(nm. km) £22 ps/(nm. km) |
PMDQ (Quadrature average*) | £0.2 ps/km1/2 |
Mode field diameter @ 1310 nm | 9.2±0.4 um |
Core / Clad concentricity error | £ 0.5 um |
Cladding diameter | 125.0 ± 0.7 um |
Cladding non-circularity | £1.0% |
Primary coating diameter | 245 ± 10 um |
Proof test level | 100 kpsi (=0.69 Gpa), 1% |
Temperature dependence 0oC~ +70oC @ 1310 & 1550nm | £ 0.1 dB/km |
