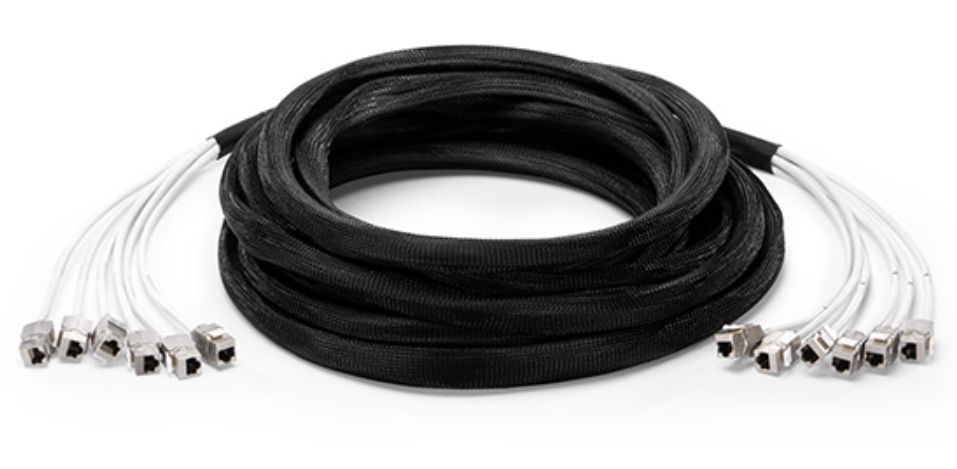

Cat 6a S/FTP Jack to Jack Trunk Cables

Ideal for Backbone and Cross-connect Cabling Systems

Description

ZION pre-terminated CAT6a S/FTP trunk cables provide a quick solution for links in the entire data center solution.
They are ideal for environments with frequent moves, adds, and changes, offering fast and efficient installation of
multiple point-to-point connections.

Application

Data Center Cabinets / Telecommunications Racks / Quick Network Deployment

Technical Specification

• Available in variable bundle sizes of 6, 8, or 12 cores depending on your inquiry.
• Level: Plenum, Riser, LSZH, Dca, Eca CPR rating.
• Custom lengths in 0.50-meter increments. Total trunk length shall not exceed ANSI/TIA standards.
• Unique identification number on the label at the end for each cable.
• Out Jacket: PVC/LSZH or braiding material.
• ISO/IEC 11801-1, EN 50173-1, TIA 568
• Data center cabling standards ISO/IEC 11801-5,ISO/IEC 22237-5, EN 50600-2-4, EN 50173-5, and TIA 942.
• Rated for 500MHz communications
• Designed for 10G Base-T Ethernet
• Pass the Fluke Channel Test

Specification (Datasheet)

Product Type

SKU

6ASCV1MG-12JJ-BRB (Please check ZION'S trunk cable code)

Shielding Type

Shielded (S/FTP)

Termination End

Jack to Jack

Cable Count

6/8/12

Storage temperature

-40℃ ~ +70℃

Operating temperature

-10℃ ~ +60℃

Single Patch Cable Datasheet

Conductor:

Solid Oxygen-free copper

Conductor QTY(Pairs)

4 Twisted Pairs

Wire Gauge (AWG)

23AWG (0.565 ±0.005mm)

Insulation Material:

Skin-foam-skin PE

OD of Insulation

1.33±0.05 mm

Insulation Color
Per
TIA/EIA 568-B

Orange, White/White-Orange

Blue, White/White-Blue

Green, White/White-Green

Brown, White/White-Brown

Shielded 1 Material

AL/PET Foil

Shielded 1 Coverage

≥ 125%

Shielded 2 Material

0.10mm Tinned Copper

Shielded 2 Coverage

≥40%

Sheath/Out Jacket:

LSZH OR PVC

OD of sheath

7.5 ± 0.3 mm

Thickness of sheath

0.55 ± 0.05 mm

Breakout Length

0.3 m

Color

Gray/Blue or customzied

Termination End

Jack Type

CAT6a S/FTP  Keystone Jack

Jack Material

PC (Polycarbonate)

Jack Pins

Phosphor Bronze,TIN GOLD 3U"

RJ45 Contact Lift

Min. 750 Times

IDN Life

Min. 250 Times

Outer Jacket

Material

PVC/LSZH/Braiding

Electrical Chatracteristics (20℃）

The following are laboratory data at 20°C. Actual environments may vary slightly.

Data Rate Support

10G Base-T

Standard Bandwidth

500 MHz

Impedance (1-250MHz)

100 ± 15 Ω

Impedance (250-500MHz)

100 ± 22 Ω

Delay Skew (1-100MHz)

≤45 ns/100m

Max. DC Resistance

9.38 Ω/100m

Max. DC COND. RESI. Unbalance

0.05

Mechanical Chatracteristics

Before Aging Tesnsile Strength

≥13.5 Mpa

Before Aging Elongation

 ≥150 %

Aging Period

100℃×24h×7d   (℃×hrs)

After Aging Tensile Strength

≥12.5 Mpa

After Aging Elongation

≥125 %

Cold Bend

No Visible Cracks

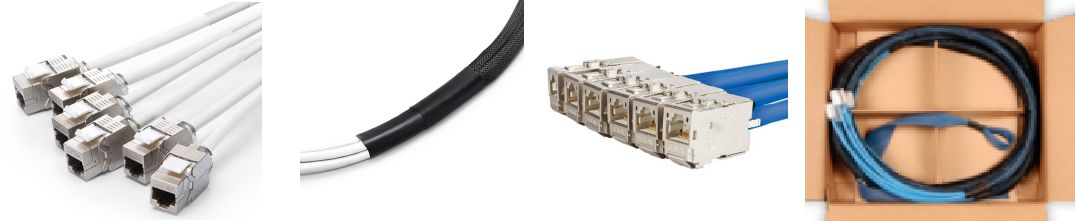

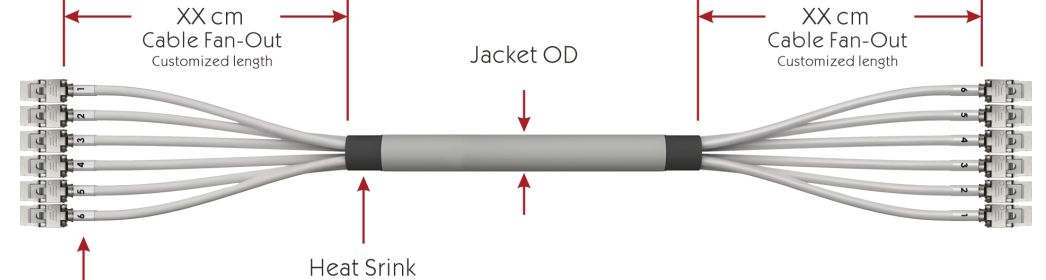

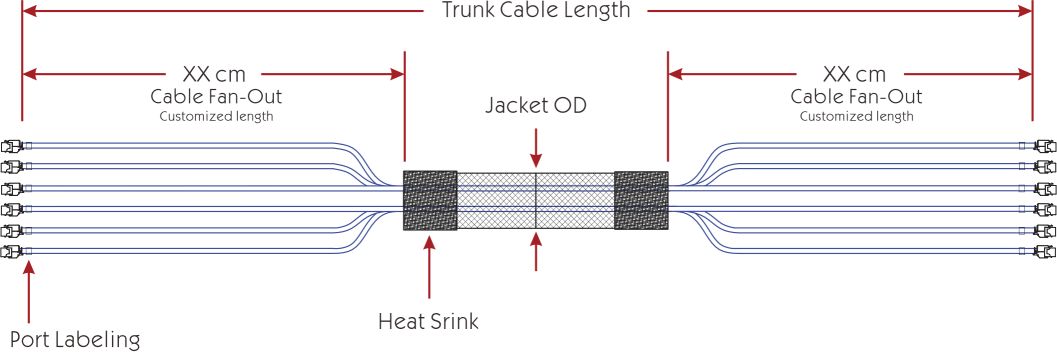

Schematic of the finished product

The actual number of cores will be 6,8,12; the color can also be customized according to customer requirements.

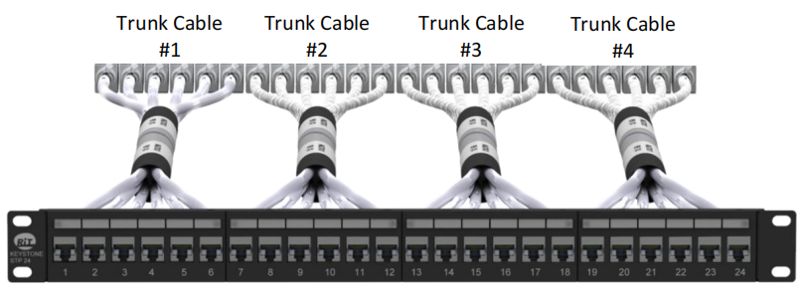

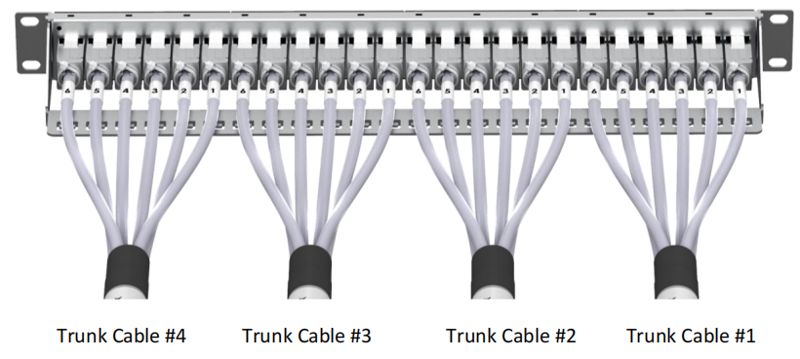

Trunk Cable Assemblies are compatible with ZION keystone patch panels

ZION'S Trunk Cable Code:

6A S C O 05M BL-12 J J-BR B
①②③④ ⑤   ⑥  ⑦⑧⑨⑩⑪

Cable Type

Conductor

Conductor
material

Outer sheath
material

Cable
length

Cat6 sheath color

Cores

End A

End B

Out
Jacket
Material

Out
Jacket
Color

6A=
S/FTP CAT6A

S=Solid

C=
Bare Copper

V= PVC
O=LSZH

1=1M
1.5=1.5M
...
10=10M


White

Pink

6
8
12

Plug
Jack

Plug
Jack

V=PVC
VR=Riser
VP=Plenum
O=LSZH
BR=Braiding

Brown

Blue

Grey

Green

Red

Blue

Yellow

Black

Black

Grey

Violet

①

②

③

④

⑤

⑥

⑦

⑧

⑨

⑩

⑪

ZION'S Trunk Cable Code:

Cat 6A S/FTP Jack to Jack Trunk Cables

Conductor: 0.56mm Copper;  Cable OD:7.5±0.3mm; Max Length based on 10Gbps: up to 30meter.

Zion Code

Description

6ASCV1MBL-12JJ-BRBL

CAT6a S/FTP 23AWG Trunk Cable Blue PVC Sheath 1Meter 12 Cores Black Braiding Jacket

6ASCV2MBL-12JJ-BRBL

CAT6a S/FTP 23AWG Trunk Cable Blue PVC Sheath 2Meter 12 Cores Black Braiding Jacket

6ASCV3MBL-12JJ-BRBL

CAT6a S/FTP 23AWG Trunk Cable Blue PVC Sheath 3Meter 12 Cores Black Braiding Jacket

6ASCV4MBL-12JJ-BRBL

CAT6a S/FTP 23AWG Trunk Cable Blue PVC Sheath 4Meter 12 Cores Black Braiding Jacket

6ASCV5MBL-12JJ-BRBL

CAT6a S/FTP 23AWG Trunk Cable Blue PVC Sheath 5Meter 12 Cores Black Braiding Jacket

...

...

6ASCV30MBL-12JJ-BRBL

CAT6a S/FTP 23AWG Trunk Cable Blue PVC Sheath 30Meter 12 Cores Black Braiding Jacket

OEM/ODM service for you

ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo on Plug & Boot  / Printing on Cable / Label/PE bag/Carton design
• Different Color & Different Lengths Available / Different Molding/Strain Relief
