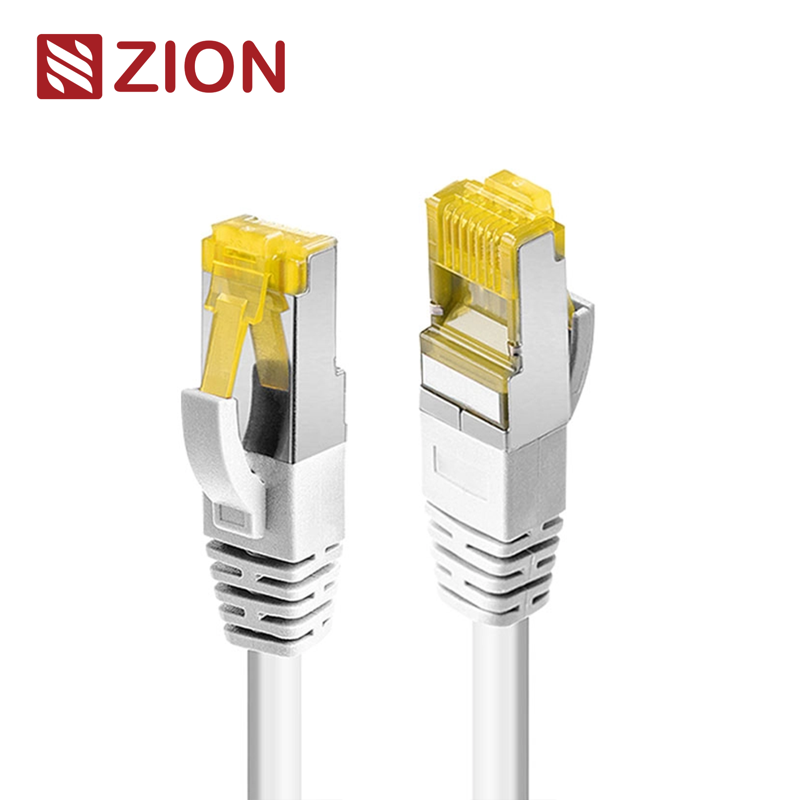

CAT.7 S/FTP RJ45 Patch Cord

CAT.7 S/FTP RJ45 Patch Cable

■ Application:

Category 7 cabling systems is playing a major role in data centers and
mission-critical environments upgrading to 10GBASE-T.

ZION Communication CAT7 S/FTP Patch Cords conforms to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE and CENELEC EN50173 for Category 7. The patch cords are 100% (FLUKE DSX 8000) tested per Cat.7 Channel up to 600 MHz. Designed for high speed protocols such as IEEE 802.3:10Base-T, 100Base-T, 1000Base-T, 10GBase-T,  HDBase-T A & B and ATM, CATV,computer,hubs,switches,
routers,DSL/cable modems and patch panel in Gigabit datacenter.

■ Specification:

CAT 7 S-FTP CAT 6A RJ45 Patch Cord

Conductor:

· Material: Stranded bare copper

· Pairs: 4 pairs

Insulation:

· Material: Skin-Foam-Skin PE (Polyethylene) for each pair, ensuring improved electrical insulation and reduced cross-talk.

Color Coding (TIA/EIA 568-B Standard):

· Pair 1: Orange, White/White-Orange

· Pair 2: Blue, White/White-Blue

· Pair 3: Green, White/White-Green

· Pair 4: Brown, White/White-Brown

Shielding:

· Individual Shield: Each pair is shielded with Al/PET foil, with the aluminum facing outwards and offering 100% coverage to protect against electromagnetic interference (EMI).

· Overall Shield: TC (Tinned Copper) or Al_Mg (Aluminum-Magnesium) braiding, with >30% coverage for added protection against external noise.

Outer Jacket:

· Material: LSZH (Low Smoke Zero Halogen) or PVC (Polyvinyl Chloride) for the outer sheath.

Electrical Specifications:

· Frequency Range: 1 - 600 MHz, ensuring reliable high-speed data transmission.

· Impedance: 100Ω, optimized for network performance and signal integrity.

· Max Resistance Unbalance: 2%, ensuring uniformity across the pairs for consistent performance.

· Current Rating: 1.5A, suitable for most Ethernet and power-over-Ethernet (PoE) applications.

· Voltage: 36 VAC / 56 VDC, ideal for both residential and commercial use.

Operating Temperature:

· Min: -40°C

· Max: +65°C, ensuring stability in various environmental conditions.

RJ45 Connector Specifications:

Connector Type:

· Plug: RJ45, suitable for standard Ethernet networking.

Material:

· Plug Housing: Polycarbonate, offering durability and lightweight strength.

· Boot: LSZH or PVC, designed to reduce strain and prevent damage to the cable.

Electrical Contact:

· Front Connection: Phosphor Bronze with 50μ inch gold over nickel plating, providing reliable contact and corrosion resistance.

Shielding:

· Blades: Copper Alloy, Nickel plated, ensuring excellent conductivity and EMI shielding.

Durability:

· Mating Cycles: Rated for 750 mating cycles minimum, ensuring longevity and reliable performance under frequent use.

■ Characteristics:

Cat 7 S/FTP RJ45 Patch Cord – Product Overview

Key Specifications:

· Version: Cat 7

· Class: G (I)

· Max Operating Frequency: 600 MHz

· Shielding Type: S/FTP (Shielded Foiled Twisted Pair)

· Plug Connector: RJ45

· Used For:

o 10GBase-T (up to 20 meters)

o Faster server interconnection

o Data center connections

Compliance:

· Standard: ISO/IEC TR 11801-99-1

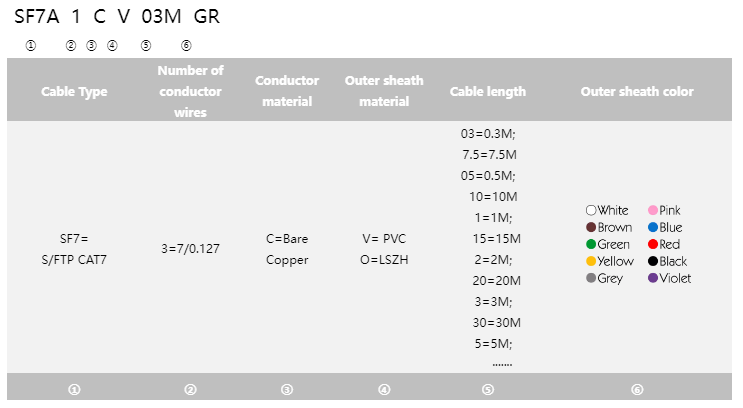

■ Product Code:

■ Ordering Information：

CAT 7A S/FTP 28AWG Copper Conductor RJ45 Patch Cord

Conductor: 7/0.127mm Copper;  Cable OD:6.0±0.2mm; Max Length: up to 20meter.

Zion Code & Description:

 SF73CO05MGR: CAT 7 S/FTP 28AWG Copper CAT6A RJ45 Patch Cord, LSZH, Gray, 0.5m

 SF73CO1MGR: CAT 7 S/FTP 28AWG Copper CAT6A RJ45 Patch Cord, LSZH, Gray, 1m

 SF73CO2MGR: CAT 7 S/FTP 28AWG Copper CAT6A RJ45 Patch Cord, LSZH, Gray, 2m

 SF73CO3MGR: CAT 7 S/FTP 28AWG Copper CAT6A RJ45 Patch Cord, LSZH, Gray, 3m

 SF73CO5MGR: CAT 7 S/FTP 28AWG Copper CAT6A RJ45 Patch Cord, LSZH, Gray, 5m

 SF73CO7AMGR: CAT 7 S/FTP 28AWG Copper CAT6A RJ45 Patch Cord, LSZH, Gray, 7m

 SF73CO10MGR: CAT 7 S/FTP 28AWG Copper CAT6A RJ45 Patch Cord, LSZH, Gray, 10m

 SF73CO15MGR: CAT 7 S/FTP 28AWG Copper CAT6A RJ45 Patch Cord, LSZH, Gray, 15m

 SF73CO20MGR: CAT 7 S/FTP 28AWG Copper CAT6A RJ45 Patch Cord, LSZH, Gray, 20m

■ OEM/ODM service for you

ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo on Plug & Boot

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available

• Different Molding/Strain Relief

■ Packing
