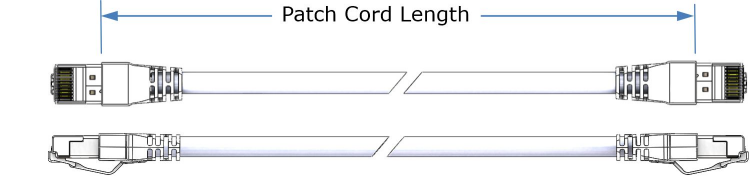

CAT.5e U/UTP RJ45 Patch Cord

CAT.5e U/UTP RJ45 Patch Cable

■ Application:

Category 5e cabling systems is playing a major role in data centers and
mission-critical environments upgrading to 1GBASE-T.

ZION Communication CAT5e U/UTP Patch Cords conforms to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE and CENELEC EN50173 for Category 5e.

The patch cords are 100% tested per Cat.5e Channel up to 100 MHz. Designed for high speed protocols such as IEEE 802.3:10Base-T, 100Base-T, 1000Base-T,

HDBase-T A & B and ATM, CATV,computer,hubs,switches,routers,DSL/cable modems and patch panel in Gigabit datacenter.

■ Specification:

CAT 5e U-UTP RJ45 Patch Cord – Product Overview

Key Specifications:

· Conductor: Stranded Bare Copper for optimal conductivity and flexibility.

· Pairs: 4 Pairs for reliable data transmission.

· Insulation: HDPE (High-Density Polyethylene) for strong electrical insulation and reduced signal loss.

· Frequency Range: 1 - 100 MHz, suitable for standard Ethernet networks.

· Impedance: 100Ω for stable signal transmission and minimal interference.

· Max Resistance Unbalance: 2%, ensuring uniform electrical performance across all pairs.

· Current Rating: 1.5A for general-purpose networking applications.

· Voltage Rating: 72 VDC Max for safe operation in most low-voltage Ethernet applications.

· Operating Temperature: -20°C to +60°C, making it suitable for various indoor environments.

Shielding:

· Individual Shielding: Each pair is shielded with Al/PET Foil for 100% coverage, ensuring excellent protection from external electromagnetic interference (EMI).

· Overall Shielding: U-UTP (Unshielded Twisted Pair) design with no additional shielding for the overall cable, suitable for environments with lower EMI.

Cable Jacket:

· Material: Available in LSZH (Low Smoke Zero Halogen) or PVC for improved safety during a fire event (LSZH version) or standard environmental protection (PVC version).

Connector:

· Plug Material: Polycarbonate for durability and impact resistance.

· Type: RJ45, compatible with most network equipment like routers, switches, and computers.

· Boot Material: Available in LSZH or PVC, with Snagless design for easy installation and secure cable retention.

· Contact Pins: Phosphor Bronze with 50μ-inch Gold over Nickel Plating for high-quality conductivity and corrosion resistance.

· Blades: Copper Alloy, Nickel Plated for further durability and enhanced electrical performance.

Durability:

· 750 Mating Cycles Min. for the connector, ensuring longevity and reliability in frequent connections and disconnections.

■ Characteristics:

CAT 5e U/UTP RJ45 Patch Cord - Product Overview

Version & Classification:

· Version: Normal

· Class: Cat 5e

· Max. Operating Frequency: 100 MHz

Shielding Type:

· Shielding: U/UTP (Unshielded Twisted Pair)
This is a basic design without additional shielding for the overall cable, making it suitable for environments with low interference.

Plug Connector:

· Type: RJ45
Widely compatible with networking equipment like routers, switches, and computers.

Used For:

· 1GBase-T (Gigabit Ethernet) for cable lengths up to 100 meters. This makes it ideal for general networking in offices, homes, and small to medium-sized businesses.

· Faster server interconnection and connections in data centers, particularly where speeds up to 1Gbps are required.

Note:

· Meets ISO/IEC TR 11801-99-1, an international standard for networking cables, ensuring that the product complies with high performance and reliability standards.

Applications:

· 1Gbps Ethernet connections for general-purpose networking.

· Server-to-server interconnections for networking in data centers.

· Suitable for VoIP (Voice over IP), CCTV systems, and low-to-medium bandwidth networking applications.

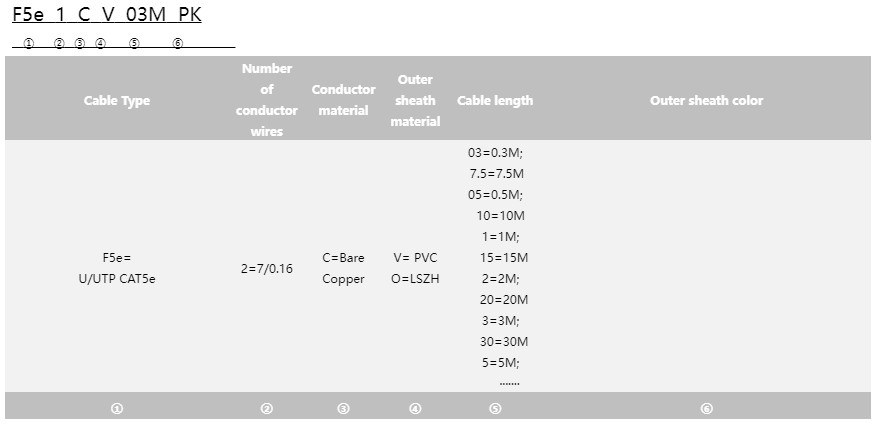

■ Product Code:

■ Ordering Information：

Zion Code and Descriptions:

1. F5E2CO05MPK

Description: CAT 5e U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Pink, 0.5m

2. F5E2CO1MPK

Description: CAT 5e U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Pink, 1m

3. F5E2CO2MPK

Description: CAT 5e U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Pink, 2m

4. F5E2CO3MPK

Description: CAT 5e U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Pink, 3m

5. F5E2CO5MPK

Description: CAT 5e U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Pink, 5m

6. F5E2CO7MPK

Description: CAT 5e U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Pink, 7m

7. F5E2CO35MPK

Description: CAT 5e U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Pink, 35m
