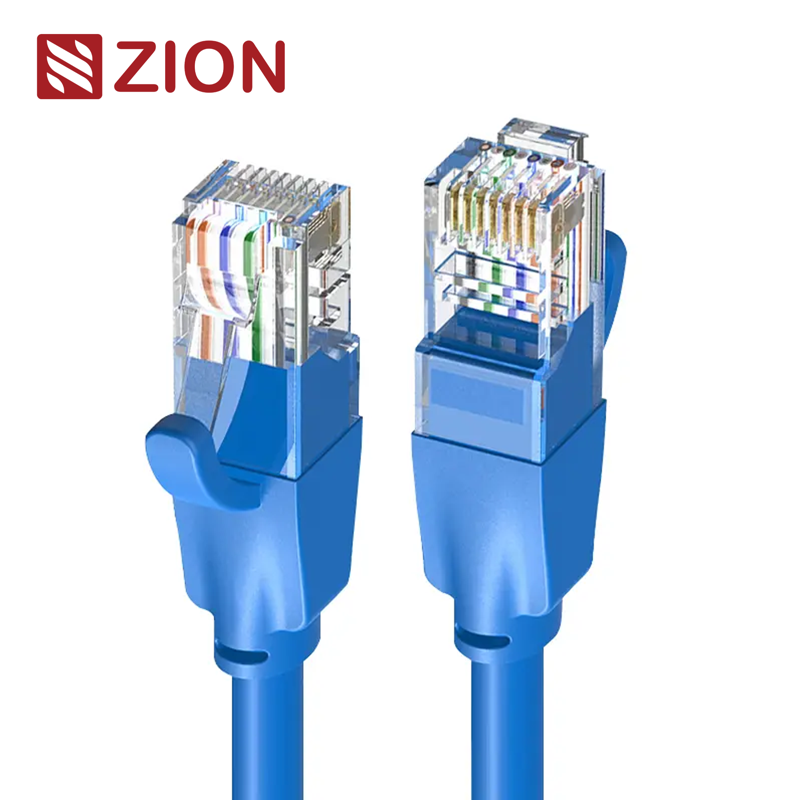

CAT.6 U/UTP RJ45 Patch Cable Product Data
Application
Category 6 cabling systems are playing a major role in data centers and mission-critical environments upgrading to 10GBASE-T.
ZION Communication CAT6 U/UTP patch cords conform to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE and CENELEC EN50173 for Category 6. The patch cords are 100% tested per Cat.6 Channel up to 250 MHz.
They are designed for high-speed protocols and equipment including IEEE 802.3 10Base-T, 100Base-T, 1000Base-T and 10GBase-T; HDBase-T A & B; ATM; CATV; computers; hubs; switches; routers; DSL/cable modems; and patch panels in Gigabit data centers.
Product category: Ethernet Patch Cable
Construction and Electrical Specifications
| Specification | Product data |
|---|---|
| Conductor | Stranded bare copper |
| Pairs | 4 pairs |
| Insulation | HDPE |
| Insulation color per TIA/EIA 568-B | Orange, White/White-Orange; Blue, White/White-Blue; Green, White/White-Green; Brown, White/White-Brown |

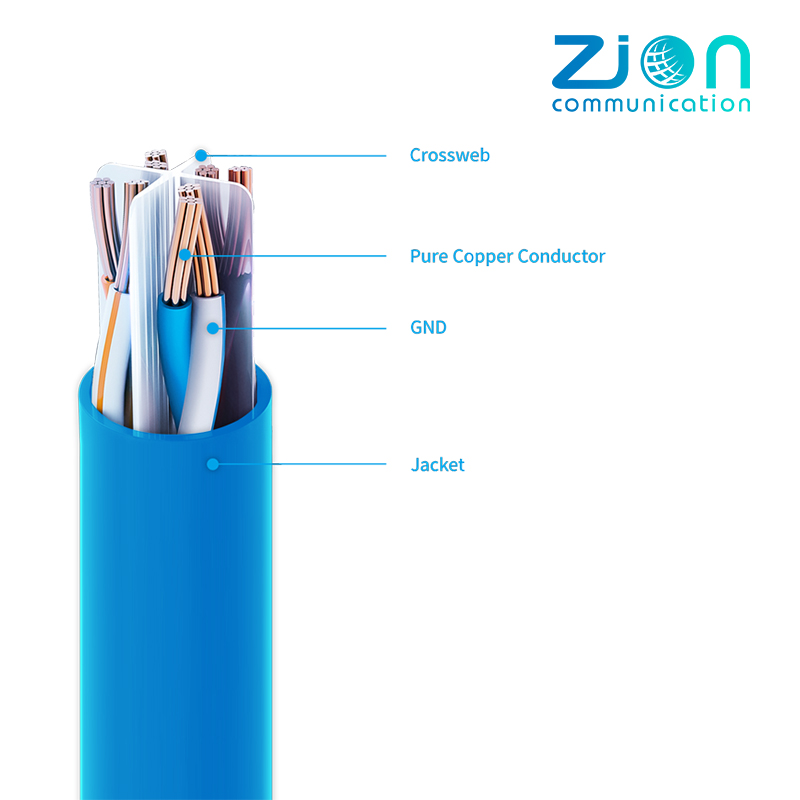

| Cross | Crossweb |
| Outer jacket | LSZH or PVC |
| Frequency range | 1–250 MHz |
| Impedance | 100 Ω |
| Maximum resistance unbalance | 0.02 |
| Current rating | 1.5 A |
| Voltage | 72 VDC max. |
| Operating temperature | Minimum −20°C, maximum +60°C |
Connector Construction
| Description | Material | Type |
|---|---|---|
| Plug | Polycarbonate | RJ45 |
| Boot | LSZH or PVC | Snagless |
| Front connection | Phosphor bronze with 50u inch gold over nickel plating | Blades |
| Durability | 750 mating cycles minimum | — |
Performance Characteristics
| Version | Class | Max. operating frequency | Shielding type | Plug connector | Used for | Note | Normal |
|---|---|---|---|---|---|---|---|
| Cat 6 | G (I) | 250 MHz | U/UTP | RJ45 | 10GBase-T (lengths of 55 m) | Faster server interconnection. Connections in data centres. | ISO/IEC TR 11801-99-1 |
Product Code Structure
U6 1 C V 03M BL ① ② ③ ④ ⑤ ⑥ 2 = 7/0.16
3 = 7/0.127
O = LSZH
05 = 0.5M; 10 = 10M
1 = 1M; 15 = 15M
2 = 2M; 20 = 20M
3 = 3M; 30 = 30M
5 = 5M; ······

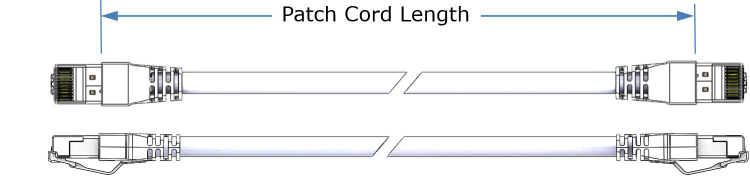

Ordering Information
CAT 6 U/UTP 24AWG Copper Conductor RJ45 Patch Cord
Conductor: 7/0.2 mm copper; cable OD: 6.0 ± 0.2 mm; maximum length based on 10 Gbps: up to 55 meters.
| ZION code | Description |
|---|---|
| U61CO05MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord, LSZH, Blue, 0.5 m |
| U61CO1MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord, LSZH, Blue, 1 m |
| U61CO2MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord, LSZH, Blue, 2 m |
| U61CO3MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord, LSZH, Blue, 3 m |
| U61CO5MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord, LSZH, Blue, 5 m |
| U61CO7MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord, LSZH, Blue, 7 m |
| U61CO10MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord, LSZH, Blue, 10 m |
| U61CO15MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord, LSZH, Blue, 15 m |
| ...... | ...... |
| U61CO55MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord, LSZH, Blue, 55 m |
CAT 6 U/UTP 26AWG Copper Conductor RJ45 Patch Cord
Conductor: 7/0.16 mm copper; cable OD: 5.4 ± 0.2 mm.
| ZION code | Description |
|---|---|
| U62CO05MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Blue, 0.5 m |
| U62CO1MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Blue, 1 m |
| U62CO2MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Blue, 2 m |
| U62CO3MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Blue, 3 m |
| U62CO5MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Blue, 5 m |
| U62CO7MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Blue, 7 m |
| ...... | ...... |
| U62CO35MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Blue, 35 m |
CAT 6 U/UTP 28AWG Copper Conductor RJ45 Patch Cord
Conductor: 7/0.127 mm copper; cable OD: 5.0 ± 0.2 mm.
| ZION code | Description |
|---|---|
| U63CO05MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord, LSZH, Blue, 0.5 m |
| U63CO1MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord, LSZH, Blue, 1 m |
| U63CO2MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord, LSZH, Blue, 2 m |
| U63CO3MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord, LSZH, Blue, 3 m |
| U63CO5MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord, LSZH, Blue, 5 m |
| U63CO7MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord, LSZH, Blue, 7 m |
| ...... | ...... |
| U63CO35MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord, LSZH, Blue, 35 m |
