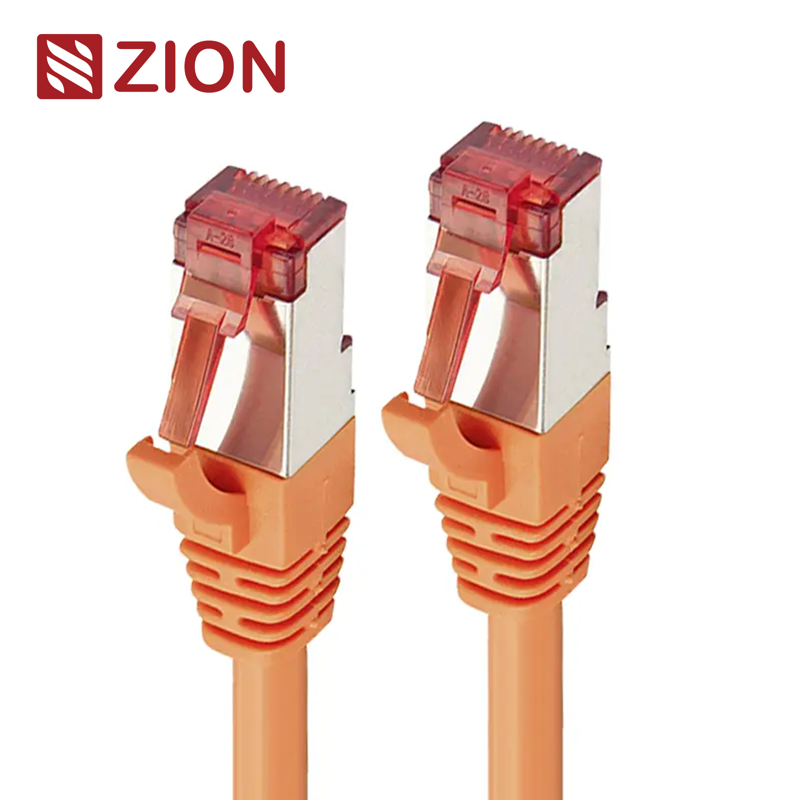

CAT.6 F/UTP RJ45 Patch Cord

CAT.6 F/UTP RJ45 Patch Cable

■ Application:

Category 6 cabling systems are playing a major role in data centers and
mission-critical environments upgrading to 10GBASE-T.

ZION Communication CAT6 F/UTP Patch Cords conform to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE, and CENELEC EN50173 for Category 6. The patch cords are 100% tested per Cat.6 Channel up to 250 MHz. Designed for high-speed protocols such as IEEE 802.3:10Base-T, 100Base-T, 1000Base-T, 10GBase-T,  HDBase-T A & B and ATM, CATV, computer, hubs, switches,
routers, DSL/cable modems, and patch panels in the Gigabit datacenter.

■ Specification:

Ethernet Patch Cable – CAT 6 F-UTP RJ45 Patch Cord

Conductor:

· Type: Stranded bare copper

· Pairs: 4 pairs

Insulation:

· Material: HDPE (High-Density Polyethylene)

Color Coding (TIA/EIA 568-B Standard):

· Pair 1: Orange, White/White-Orange

· Pair 2: Blue, White/White-Blue

· Pair 3: Green, White/White-Green

· Pair 4: Brown, White/White-Brown

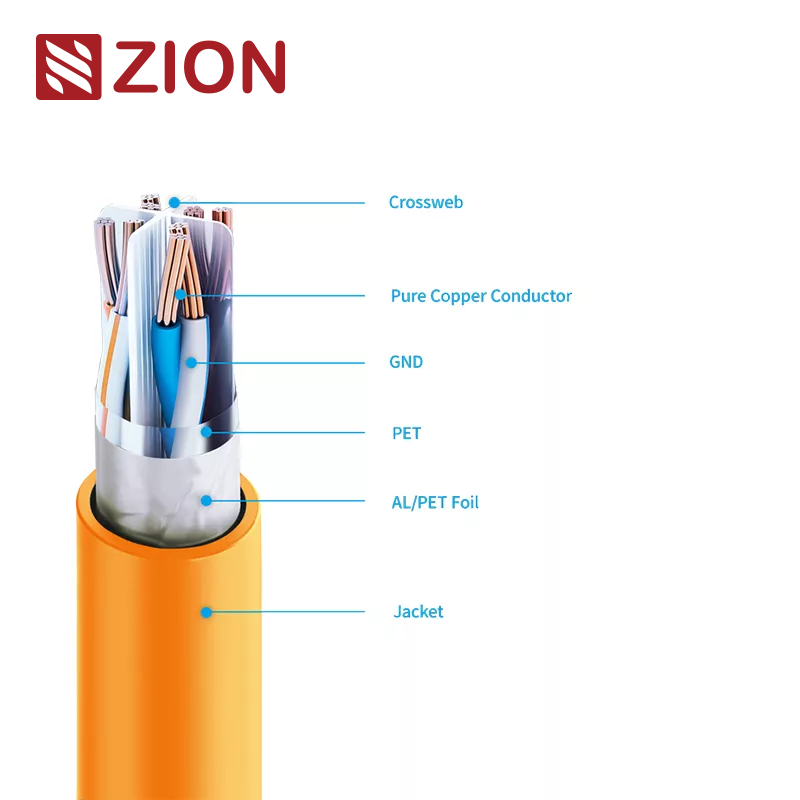

Shielding:

· Individual Shield: Each pair is shielded with Al/PET foil (aluminum facing outward) with 100% coverage for protection against EMI (Electromagnetic Interference).

· Crossweb: Ensures proper pair alignment and improves cable performance.

Outer Jacket:

· Material: LSZH (Low Smoke Zero Halogen) or PVC (Polyvinyl Chloride)

Electrical Specifications:

· Frequency Range: 1 - 250 MHz

· Impedance: 100Ω

· Max Resistance Unbalance: 2%

· Current Rating: 1.5A

· Voltage: 72 VDC Max.

Temperature Range:

· Operating Temp: Min. -20°C, Max. +60°C



RJ45 Connector Specifications:

Connector Type:

· Plug: RJ45

Material:

· Plug Housing: Polycarbonate

· Boot: LSZH or PVC (Snagless design)

Electrical Contact:

· Front Connection: Phosphor Bronze with 50μ inch gold over nickel plating for reliable electrical contact and corrosion resistance.

Shielding:

· Blades: Copper Alloy, Nickel Plated for superior conductivity and EMI shielding.

Durability:

· Mating Cycles: Rated for 750 mating cycles minimum, ensuring long-lasting performance in environments with frequent cable insertions and removals.



■ Characteristics:

CAT 6 F/UTP RJ45 Patch Cord – Product Overview

Version: Cat 6

Class: G (I)

Max. Operating Frequency: 250 MHz

Shielding Type: F/UTP (Foiled Unshielded Twisted Pair)

Plug Connector: RJ45

Used For:

o 10GBase-T (up to 55 meters)

o Faster server interconnection

o Data center connections

Compliance: ISO/IEC TR 11801-99-1

■ Product Code:

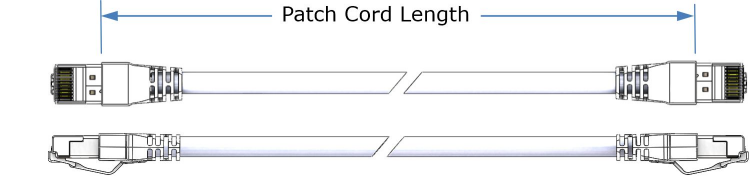

■ Ordering Information

CAT 6 F/UTP 26AWG Copper Conductor RJ45 Patch Cord

Conductor: 7/0.16mm Copper;  Cable OD:5.6±0.2mm;

Zion Codes & Descriptions:

Here are the available Zion Codes for the different lengths and options of the CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord:

· F62CO05MYL: CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Yellow, 0.5m

· F62CO1MYL: CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Yellow, 1m

· F62CO2MYL: CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Yellow, 2m

· F62CO3MYL: CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Yellow, 3m

· F62CO5MYL: CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Yellow, 5m

· F62CO7MYL: CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Yellow, 7m

· F62CO10MYL: CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Yellow, 10m

· F62CO15MYL: CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Yellow, 15m

· F62CO20MYL: CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Yellow, 20m

· F62CO25MYL: CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Yellow, 25m

· F62CO35MYL: CAT 6 F/UTP 26AWG Copper RJ45 Patch Cord, LSZH, Yellow, 35m
