Cat7 Ethernet Cable for Smart Buildings – Reliable 10G Backbone for BMS, KNX & WiFi 6

■1) What Is a Cat7 Ethernet Cable?

Cat7 (Category 7) is a fully shielded twisted pair Ethernet cable designed for 10 Gigabit Ethernet (10GbE) up to 100 meters, especially in environments where electromagnetic interference (EMI) and crosstalk are major risks. It is defined under    ISO/IEC 11801 Class F, with significantly stronger shielding and higher bandwidth compared to Cat6 and Cat6A.

A typical Cat7 cable uses 23 AWG oxygen-free copper conductors, individually foil-shielded twisted pairs, plus an overall braid screen. This S/FTP construction keeps signals clean and stable, even when cables run near power lines, VFDs, or wireless equipment.

■2) Core Technical Specifications

The table below summarizes the key technical parameters of a typical ZION Communication Cat7 cable,    from an engineering and project planning perspective.

■3) Cat7 vs Cat6 / Cat6A: Where Does It Really Help?

Cat6 and Cat6A are still widely used and cost-effective. Cat7 does not replace them in every case,    but it becomes the preferred option where EMI, cable bundling, and long-term PoE loads    are critical design factors.

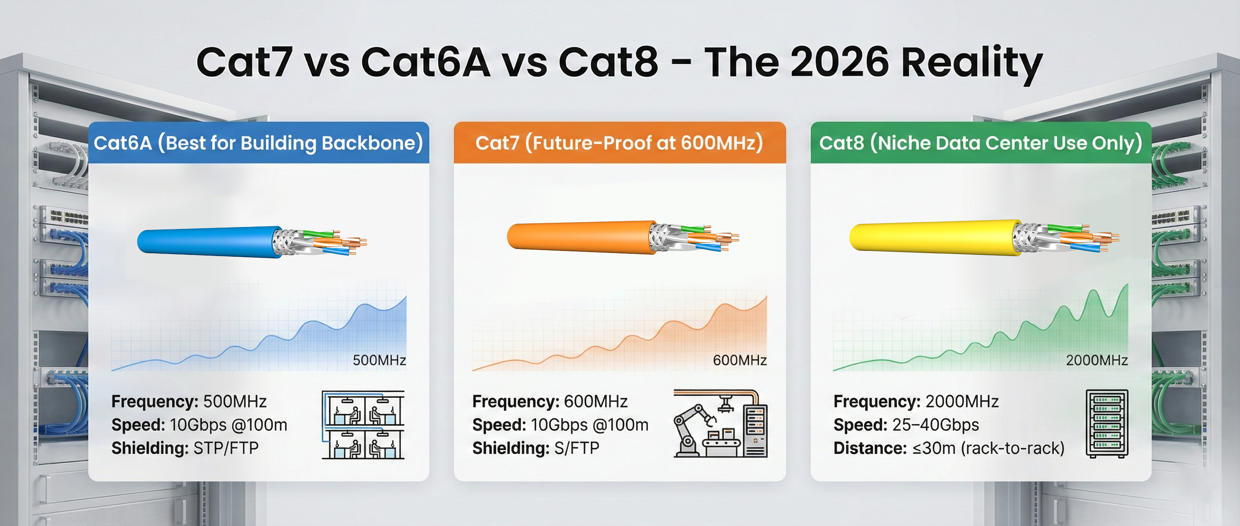

■4) Cat7 vs Cat8 in 2026: Do You Really Need Cat8?

Cat8 is often mentioned as the “next step” after Cat7. In practice, Cat8 is a short-range data center technology, while Cat7 remains the more realistic and    cost-effective option for building-wide cabling.

■5) PoE & Power Delivery on Cat7

Cat7’s 23 AWG conductors and shielding make it well-suited for PoE+/PoE++ applications,    especially when cables are bundled or run through hot environments such as risers and ceiling voids.

Compared to smaller-gauge UTP, Cat7 can:

• Reduce voltage drop under high PoE loads.

• Lower cable temperature rise in bundles.

• Improve stability for IP cameras, WiFi 6/6E/7 APs, and access control devices.

■6) Industry Use Cases: BMS, Industry 4.0, Security & High-End Residential

Cat7 becomes especially attractive when you combine high data rates, noisy electrical    environments, and long service life expectations. Below are some typical application clusters where ZION customers deploy Cat7 at scale.

6.1 Smart Buildings & BMS (including KNX)

In modern buildings, Cat7 is used as a converged backbone carrying:

• KNX / BMS gateways and supervisory controllers.

• Lighting control networks and DALI gateways.

• Access control and IP intercom systems.

• Environmental sensors, metering, and integration to the BMS server room.

Its strong shielding and PoE capability make Cat7 a robust choice for risers and IT rooms where power feeders and building services are densely packed.

6.2 Industry 4.0, OT Networks & Harsh EMI Environments

In manufacturing plants, warehouses, and utility facilities, Cat7 is often run:

• Next to variable frequency drives (VFDs) and high-power motors.

• Across long conveyor systems and robotic cells.

• Between PLCs, remote I/O racks, and industrial switches.

Here, the shielding and proper grounding of Cat7 can be the difference between “green” link LEDs and random packet loss, retries, or downtime.

6.3 Security, Surveillance & High-Performance Homes

For security and residential integrators, Cat7 offers a stable backbone for:

• PoE CCTV, perimeter cameras, PTZ domes.

• WiFi 6/6E/7 access points with high power profiles.

• Home theaters, media servers, and VR / gaming rooms.

■7) How to Choose the Right Cat7 Cable

The following checklist helps engineers and buyers quickly match ZION Cat7 variants to their project conditions.

■8) Decision Rules / Engineer’s Shortcut

The table below acts as a quick “engineering decision matrix” when selecting Cat6A vs Cat7 vs Cat8    for a new project or retrofit.

■9) ZION Communication Cat7 Portfolio

ZION Communication supplies a complete Cat7 ecosystem designed for project-grade installations, from structured cabling in smart buildings to heavy-duty industrial Ethernet.

• Cat7 S/FTP indoor LSZH installation cable.

• Cat7 outdoor PE and direct-burial armored cable.

• Shielded RJ45 plugs, keystone jacks, and patch panels.

• Factory-terminated Cat7 patch cords and pre-terminated trunks (on request).

While the Cat7 standard references GG45 and TERA, ZION’s Cat7 range is fully optimized for high-performance shielded RJ45 connectivity. This ensures:

• Easy interoperability with existing networks.

• Lower training and tooling requirements for installers.

• Maximum flexibility when upgrading from Cat6 or Cat6A.

■10) FAQ

Q1. Does Cat7 really support 100 m for 10G?

Yes. When installed according to standards and with proper shielding/grounding, Cat7 supports 10GBASE-T over the full 100 m channel (permanent link + patch cords).

Q2. Can I terminate Cat7 with standard RJ45 connectors?

Yes. ZION Cat7 is engineered to work with shielded RJ45 connectors and outlets, which simplifies installations and maintains full compatibility with existing switches and NICs.

Q3. Is Cat7 overkill for residential projects?

Not if you plan for a 10–15 year service life, multi-gig Internet, streaming, gaming, and heavy PoE    use. Many premium homes and villas now use Cat7 as the standard structured cabling layer.

Q4. What happens if I use Cat7 cable but unshielded jacks?

The link will still work electrically, but you will lose most of the EMI protection you paid for. Always pair Cat7 cable with shielded connectivity and proper grounding to realize its full benefit.

■11) Conclusion & Next Steps

Cat7 has evolved from a niche product into a mainstream high-performance copper standard for smart buildings, Industry 4.0, and security networks. It offers:

• 10Gbps performance up to 100 m with Class F headroom.

• Strong EMI immunity through full S/FTP shielding.

• Robust PoE+/PoE++ capability for dense powered devices.

• RJ45-based deployment that fits existing IT ecosystems.

For engineering teams and owners who want their cabling to outlive several generations of active    equipment, ZION Cat7 is a balanced, future-ready choice that controls risk without    overspending.
