Author: Luke Publish Time: 22-10-2025 Origin: Site

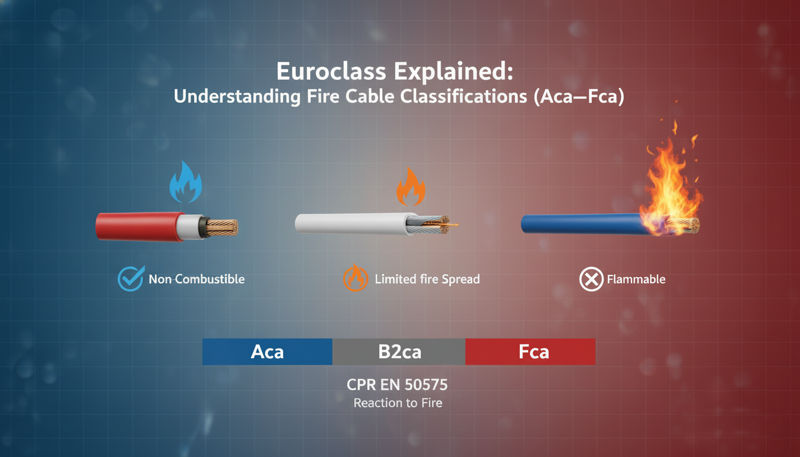

In Europe, the Euroclass system provides a standardized classification for the fire behavior of cables in buildings. Underlying EN 50575:2014, it's part of the Construction Products Regulation (CPR) framework that enforces rigorous fire safety regulations. This includes fire resistance, smoke emission, and toxic elements.
Moreover, the Euroclass system enables a common language among all EU member states, making it possible for designers, contractors, and inspectors to refer to cables with consistent and uniform fire safety features.

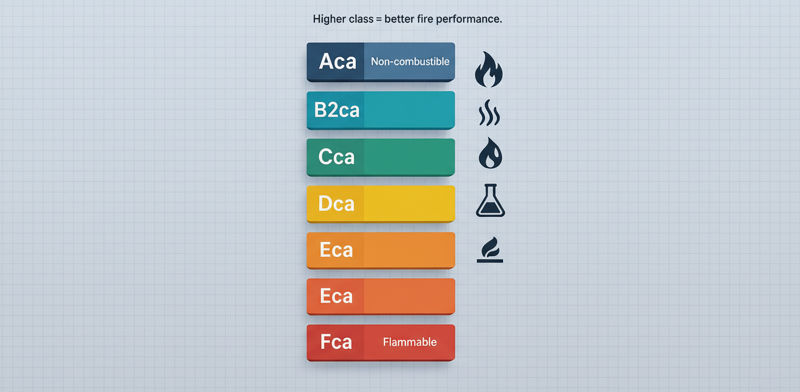

The classification of cables into Euroclass involves seven primary classes, which show how these cables react when they catch fire. The higher the class, the more efficient the cable in stopping flame propagation, reducing smoke emission, and releasing less heat.
Class | Performance Description | Typical Use |
Aca | Non-combustible materials (e.g., glass, ceramics) | Rarely used for cables |
B2ca | Very limited flame spread and smoke generation | Hospitals, public buildings |
Cca | Good flame retardancy, limited smoke, minimal droplets | Offices, schools, commercial buildings |
Dca | Moderate flame spread, higher smoke | Residential areas |
Eca | Basic flame propagation test | Single-family homes, low-risk installations |
Fca | Fails to meet minimum CPR test | Not suitable for fixed installations |

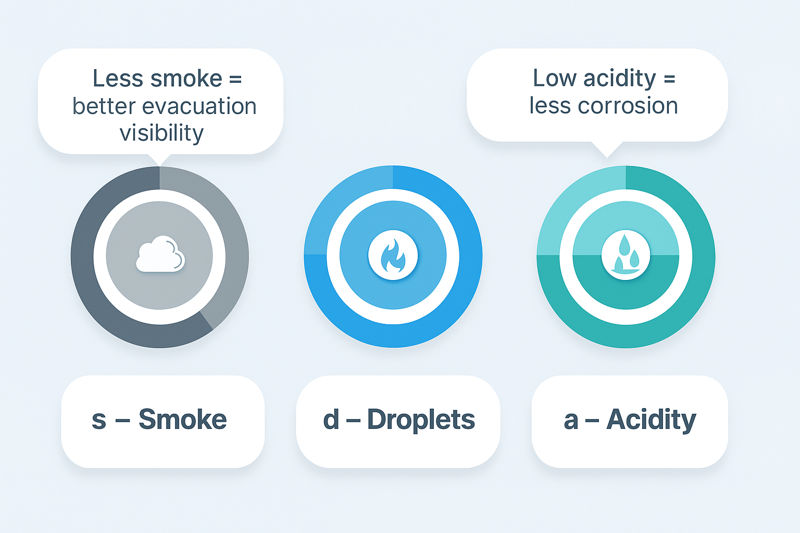

A further three additional indicators, representing the smoke, droplet, and acidity characteristics during the combustion process, are also included in the classification system alongside the main class (Aca–Fca).
s – Smoke Production
s1: Very little smoke (best)
s2: Moderate smoke
s3: No requirements or poor performance
d – Flaming Droplets / Particles
d0: No flaming droplets (best)
d1: Some flaming droplets
d2: No requirements or poor performance
a – Acidity (Gas Corrosivity)
a1: Very low acidity, non-corrosive (best)
a2: Low acidity
a3: No requirements or poor performance
For example, a cable labeled Cca s1b d0 a1 means:
Cca = good flame retardancy
s1b = very low smoke with limited light absorption
d0 = no flaming droplets
a1 = minimal acid gas emission
This makes it suitable for environments where safety, visibility, and low toxicity are critical during fire incidents.

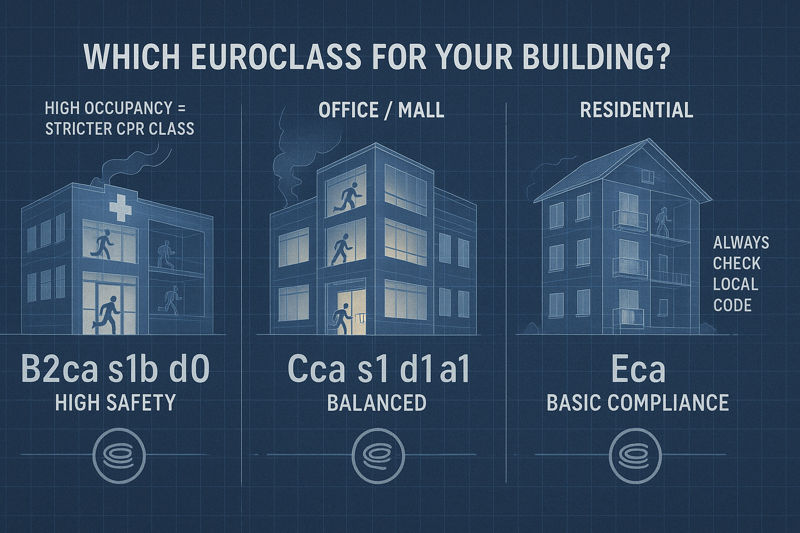

Various kinds of locations entail different levels of safety to consider, which could be based on occupancy density and evacuation complexity.
Building Type | Recommended Euroclass | Remarks |
Hospitals, Airports, Tunnels | B2ca s1b d0 a1 | Highest safety, minimal smoke/toxicity |
Office Buildings (>400 m²) | Cca s1 d1 a1 | Balanced performance for public spaces |
Shopping Malls, Theaters | Cca s1b d0 a1 | Smoke and droplet control for crowded areas |
Residential Buildings | Eca / Dca s2 d2 a3 | Basic compliance for lower risk |
Industrial or Utility Areas | Dca / Eca | Where public exposure is limited |
Make sure local building codes are in compliance. There are some regions, for instance, France, Germany, or Nordic countries, that may enforce more strict CPR compliance in certain categories of buildings and with certain installation heights.
Each cable contains the required documentation: DoP, CE marking, and a test report that has come from a notified laboratory.
The Euroclass system presents a clear, unified, and reliable frame for assessing safety of cables throughout Europe. Recognizing the importance of such classification, like Cca s1b d0 a1, can give engineers and installers the understanding to make appropriate decisions on cables for specific environments, thus balancing safety, compliance, and cost.
Through the production of CPR-compliant, high-performance cables, Zion Communication makes it possible for a safer building environment and correspondingly reliable global infrastructure.
