Author: James Publish Time: 26-06-2025 Origin: Site
Fiber-optic systems depend on precisely aligned interfaces called fiber connectors. These are sometimes described as fiber optic connector types. Picking the most appropriate fiber cable connector type from the numerous optical connector types available has a direct bearing on network performance, scaling up, and ongoing maintenance.
A fiber optic connector is a mechanical device that links two optical fibers so that light can be transmitted with minimum attenuation. The family of types of fiber connectors is broad, but every design contains:
Part | Role |
Ferrule | Holds the fiber core; usually zirconia ceramic |
Body / Housing | Plastic or metal shell that secures the ferrule |
Coupling Mechanism | Push-pull, threaded, or bayonet lock |
Boot & Strain-Relief | Protects the cable/connector interface |
Because fibers are only 8–62.5 µm wide, the alignment tolerance for any type of fiber connection is usually lower than only two microns.

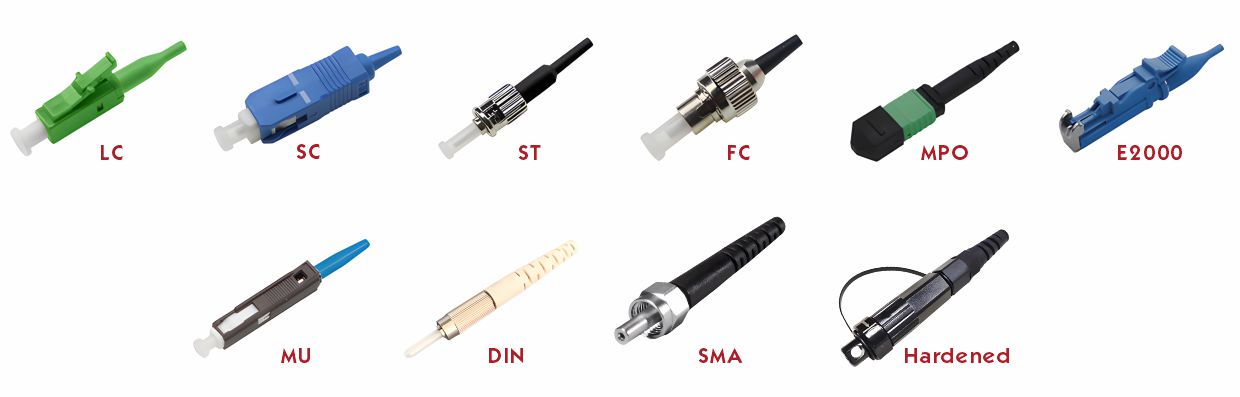

Connector | Polish | Typical Use | Keyword Notes |
SC | UPC / APC | FTTH, ODF | Classic square fiber connector |
LC | UPC / APC | High-density panels, SFP modules | Small form factor |
FC | UPC / APC | Test labs, telecom core | Threaded, vibration-proof |
ST | UPC | Legacy LANs, campus cabling | Bayonet twist-lock |
MPO/MTP | Flat / Angled | 40 G/100 G/400 G parallel optics | Multi-fiber solution |
E2000 | APC | Premium telecom, broadcast | Built-in shutter |
MU | UPC | Dense OLT/ONT gear | Mini-SC footprint |
DIN | UPC / APC | Railways, substations | Rugged industrial |
SMA | Flat | Military, sensors | All-metal shell |
Hardened (OptiTap/H-type) | APC | Outdoor FTTH drops | Waterproof pre-terminated |
The following are the connector types applied to a real installation you will mostly likely come across.
They are being defined as IEC 61754 or TIA/EIA-604 (FOCIS) according to the standards for interconnection.
Through polish style of manufacturers, the types of fiber optic connectors are broadly distinguished:
Polish | End-face | Return Loss | Color | Notes |
PC | Slight curve | ≥ 40 dB | – | Largely historical |
UPC | Ultra-polished | ≥ 50 dB | Blue | Default for data centers |
APC | 8° angle | ≥ 60–65 dB | Green | Essential for GPON/RF |
The higher the return loss (the lower the reflection), the more advantageous it is for RF video, CATV, and long-haul DWDM links.
Feature | Single-Mode | Multimode |
Core | 8–10 µm | 50/62.5 µm |
Cable Jacket | Yellow | Orange / Aqua |
Typical Connector | LC/SC/APC | LC/SC/UPC |
Reach | km-scale | ≤ 550 m @ 10 Gb/s |
Keywords | optical fiber connector types for SM | fiber optic cable connectors for MM |
Approach | Advantages | Best For |
Pre-Terminated Trunks | Lowest insertion loss; instant deployment | Data centers, telecom PoPs |
Fast Field-Installable | Flexibility; repair on demand | FTTH drops, small projects |
IEC 61754: Control dimensions of the optical connectors
GR-326-CORE: Telcordia performance spec for single-mode terminations
ISO/IEC 11801 & TIA-568: Complying with structured cabling
OTDR – shows graphical loss and events
Insertion-/Return-Loss Meter – certifies every fiber core connector pair
Visual Fault Locator – LED flashlight testing positive for continuity
200×/400× Microscope – to see scratches or dirt for every optic fiber cable connector
It is essential to clean up before mating; more than 80% of fiber optic link problems arise from dirt or dust particles in the connectors.
Scenario | Recommended Connectors | Keyword Reminder |
FTTH Indoor | SC/APC, LC/APC | “fiber optic connector types for FTTH” |
High-Density Data Center | LC/UPC & MTP | “fiber cable connector types in racks” |
Outdoor Harsh | Hardened OptiTap | “IP-rated optical fiber connector types” |
Industrial Vibration | DIN, FC | “rugged ofc connector type” |
Q1. Which fiber optic connectors are employed in industry the most?
Answer: LC and SC are very popular in HVAC circuits, whereas MTP/MPO are in high demand in the backbone. ST finds FYI in older multimode environments.
Q2. How do the types of fiber optic cable connectors affect the performance of the network?
With greater insertion loss and a higher return loss from quality connectors, system BER (bit-error-rate) attributes directly to the value of power budget available for the system.
Q3. What is the best fiber optic USB?
USB-to-fiber media converters with LC single-mode transceivers provide maximum 10 Gb/s bandwidth for a length of 10 km, which you may easily find on the market. It is nice to have a hot-swappable SFP-based unit as there is a choice of fiber connection type: single-mode or multimode to fit your environment.
Carrying knowledge about all variations of types of fiber optic connectors – ST connector bayonets and 144-fiber MTPs – into your proof of reliability is the key to installation of fiber optic infrastructure.
What is fiber connection type (single-mode/multimode) and polish (UPC/APC)? These specifications should match the application needs.
Observe the industry standards and apply testing, and maintain the level of insertion loss below 0.3 dB on the fiber optic connectors.
Planning to location your next project? Use this guide as a checklist to determine your fiber cable connector options – verify your optical connector types against the standards and choose the types of the fiber connectors that will give you the highest optical performance for years to come.
