Trunk Cable QR540

75 Ohm CATV Coaxial Cable

NO.7100416

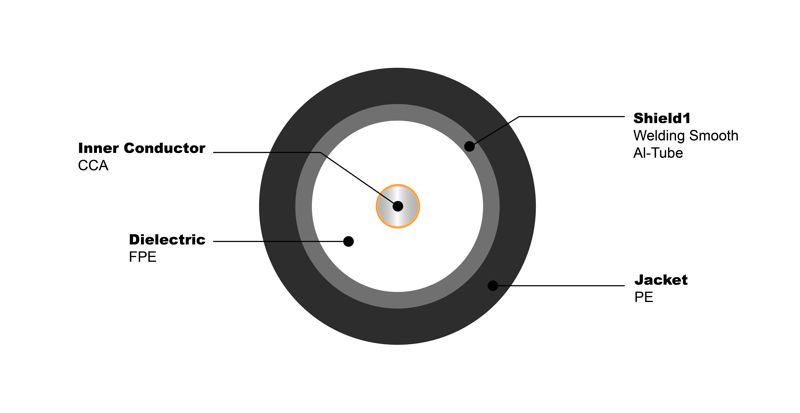

■ Construction Parameters:

Inner Conductor: 9AWG (3.15mm) CCA (Copper-Clad Aluminum)

Dielectric: 13.03mm Foamed PE

Outer Conductor: 13.72mm Welding Aluminum Tube

Jacket: 15.49mm PE Black

Jacket Thickness: 0.89mm

Application: Suitable for use in longer CATV run lengths.

■ Electrical Characteristics:

Inner Conductor Resistance: Max. at 20℃ < 3.34 Ω/km

Capacitance: 50 ± 3 pF/m

Impedance: 75 ± 2 Ω

Return Loss (between 5 and 1000 MHz): > 22dB

Velocity of Propagation: 87%

Sparker Test (VAC): 4

■ Mechanical and Environmental Properties:

Cable Bend Radius: 10 times the cable diameter

Operating Temperature Range: -40℃ to +85℃

Cable Dimensions: 15.49mm PE Black

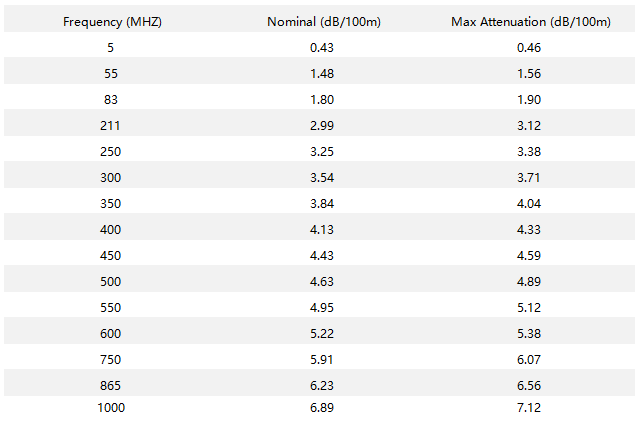

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL Trunk Cable QR540 ×××M

Package: Inquired Length on Wooden Drum, Pallet

Delivery Time: Normally 25 days after receiving the deposit

Brand: HELLOSIGNAL® OR OEM
