hellosignal
7100408

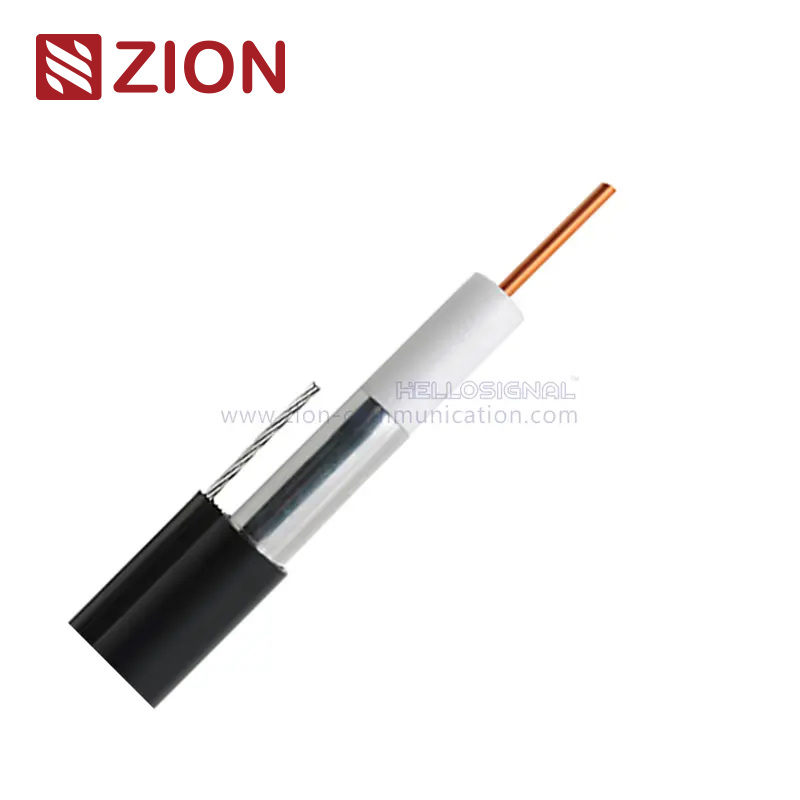

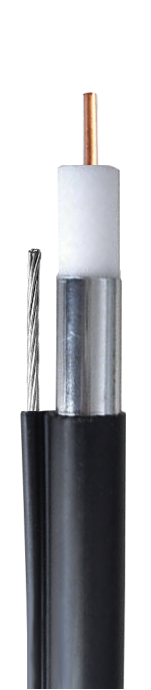

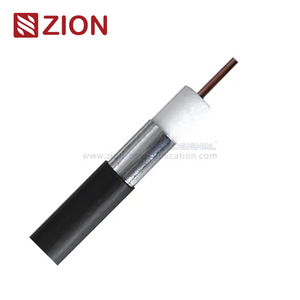

Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
| ||||||||
Construction Parameters: | ||||||||
Inner Conductor | 4.22mm CCA |
| ||||||
Dielectric | 17.40mm Foamed PE | |||||||
Outer Conductor | 18.20mm Welding Aluminum Tube | |||||||
0.40mm Outer Conductor Thickness | ||||||||
Jacket | 19.90mm PE Black | |||||||
Messenger | 7/1.67mm(OD:)5.0mm Steel Wire | |||||||
Application | For Use in Longer CATV Run Lengths | |||||||
Electrical Characteristics: | ||||||||
Inner/outer | 1.9/1.4 Ω/km | |||||||
Capacitance | 50 ± 3 pF/m | |||||||
Impedance | 75 ± 2 Ω | |||||||
Return loss | between 5 and 1000MHz: > 22dB | |||||||
Velocity of Propagation | 88% | |||||||
Screening attenuation | >100 dB | |||||||
Jacket Spark | 5000 Vrms | |||||||
Mechanical and Environmental Properties: | ||||||||
Cable Bend Radius | 127mm | |||||||
Operating Temperature Range | -40 ℃ to +80℃ | |||||||

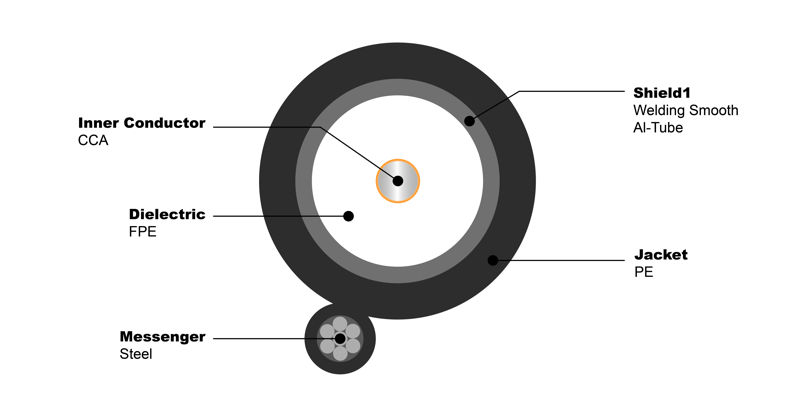

Cross Section: | ||||||||
| ||||||||
Attenuation(20℃): | ||||||||
Frequency (MHZ) | Max Attenuation (dB/100m) | |||||||
5.00 | 0.36 | |||||||
55.00 | 1.18 | |||||||
211.00 | 2.43 | |||||||
250.00 | 2.66 | |||||||
270.00 | 2.76 | |||||||
300.00 | 2.92 | |||||||
330.00 | 3.08 | |||||||
350.00 | 3.18 | |||||||
400.00 | 3.44 | |||||||
450.00 | 3.67 | |||||||
500.00 | 3.90 | |||||||
550.00 | 4.10 | |||||||
600.00 | 4.30 | |||||||
750.00 | 4.89 | |||||||
870.00 | 5.35 | |||||||
1000.00 | 5.74 | |||||||
| ||||||||
