hellosignal
7100417
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

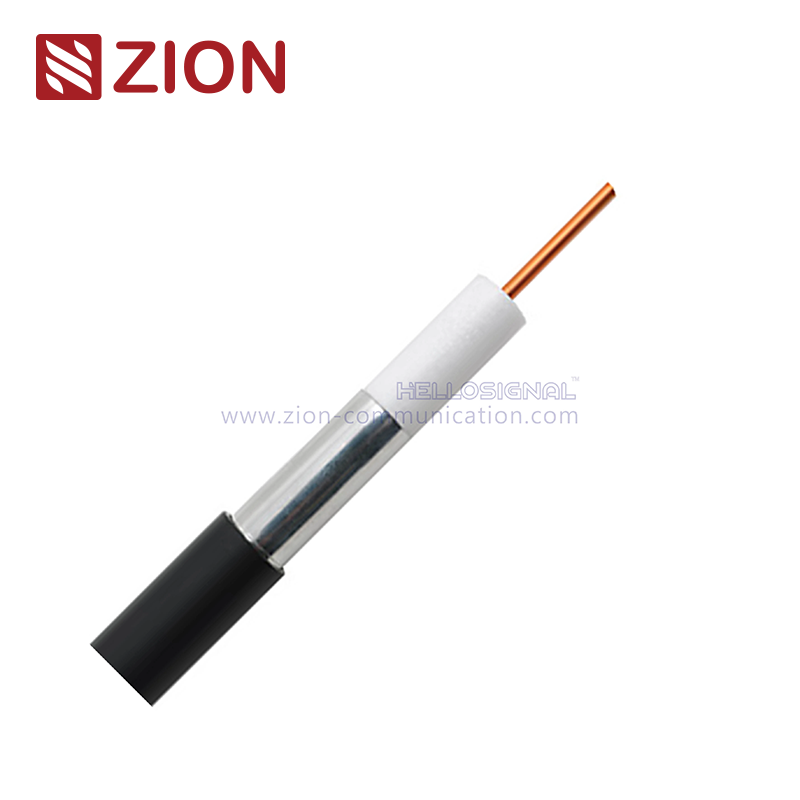

Inner Conductor: 4.22 mm Copper Clad Aluminum (CCA)
Dielectric: 17.40 mm Foamed PE
Outer Conductor: 18.20 mm Welding Aluminum Tube, 0.40 mm Outer Conductor Thickness
Jacket: 19.90 mm PE Black
Application: For Use in Longer CATV Run Lengths
Inner/Outer Conductor Resistance: 1.9/1.4 Ω/km (Max. at 20℃)
Capacitance: 50 ± 3 pF/m
Impedance: 75 ± 2 Ω
Return Loss: > 22 dB between 5 and 1000 MHz
Velocity of Propagation: 88%
Screening Attenuation: > 100 dB
Jacket Spark: 5000 Vrms
Mechanical and Environmental Properties:
Cable Bend Radius: 127 mm
Operating Temperature Range: -40℃ to +80℃
