NO.7100406 Trunk Cable QR 320M

Trunk Cable QR320M
75 Ohm CATV Coaxial Cable
NO.7100406

Construction Parameters:

Inner Conductor

13AWG 1.80mm CCA

Dielectric

7.47mm Foamed PE

Outer Conductor

8.13mm Welding Aluminum Tube

Jacket

10.03mm PE Black

Jacket Thickness

0.76mm

Messenger

2.11mm Steel Wire

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <10.76 Ω/km

Capacitance

50 ± 3 pF/m

Impedance

75 ± 2 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

87%

Sparker Test (VAC)

4

Mechanical and Environmental Properties:

Cable Bend Radius

10 times the cable diameter

Operating Temperature Range

-40 ℃ to +85℃

Cable Diamensions

10.03mm PE Black

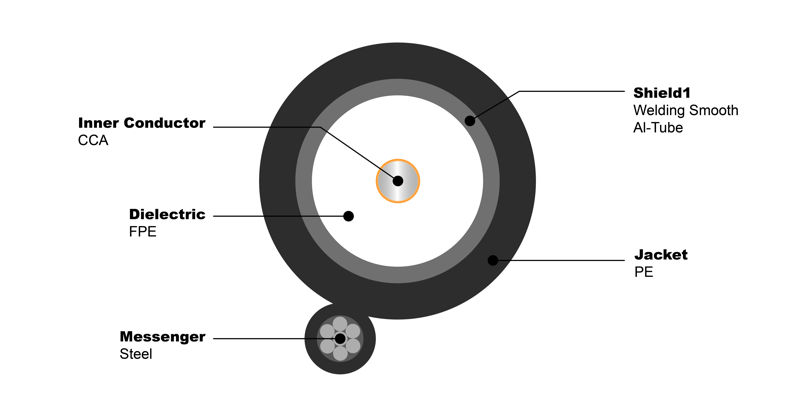

Cross Section:

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation (dB/100m)

5

0.79

55

2.62

211

5.68

250

6.10

300

6.37

350

7.38

400

7.81

450

8.27

500

8.92

550

9.35

600

9.78

750

10.96

865

11.87

1000

12.76

Order Informations:

Marking

HELLOSIGNAL Trunk Cable QR320M ×××M

Package

Inquired Length on Wooden Drum, Pallet …

Delivery Time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
