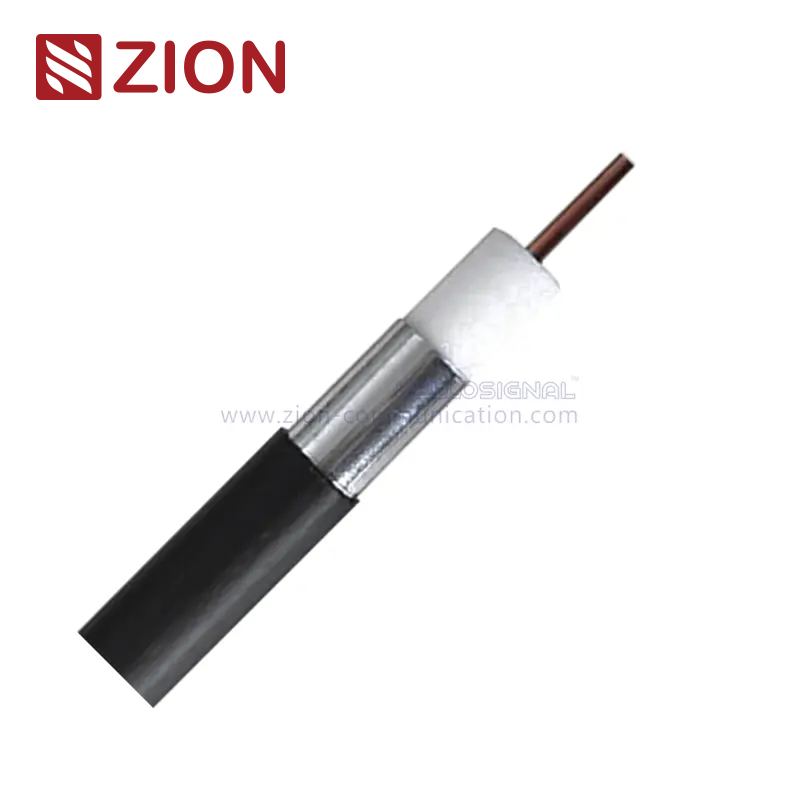

Trunk Cable QR860

75 Ohm CATV Coaxial Cable NO.7100418

■ Construction Parameters:

Inner Conductor: 4AWG 5.16mm CCA (Copper Clad Aluminum)

Dielectric: 21.03mm Foamed PE

Outer Conductor: 21.84mm Welding Aluminum Tube

Jacket: 24.38mm PE Black

Jacket Thickness: 1.27mm

Application: For Use in Longer CATV Run Lengths

■ Electrical Characteristics:

Inner Conductor Resistance: Max. at 20℃ < 1.33 Ω/km

Capacitance: 50 ± 3 pF/m

Impedance: 75 ± 2 Ω

Return Loss: Between 5 and 1000 MHz: > 22dB

Velocity of Propagation: 87%

Sparker Test (VAC): 4

■ Mechanical and Environmental Properties:

Cable Bend Radius: 10 times the cable diameter

Operating Temperature Range: -40 ℃ to +85℃

Cable Dimensions: 24.38mm PE Black

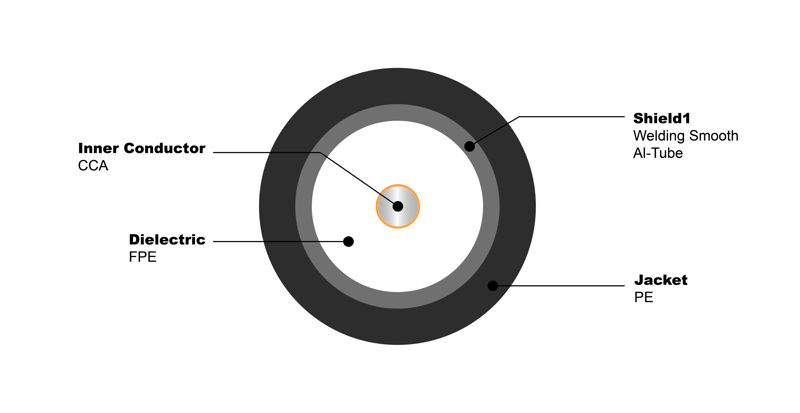

■ Cross Section:

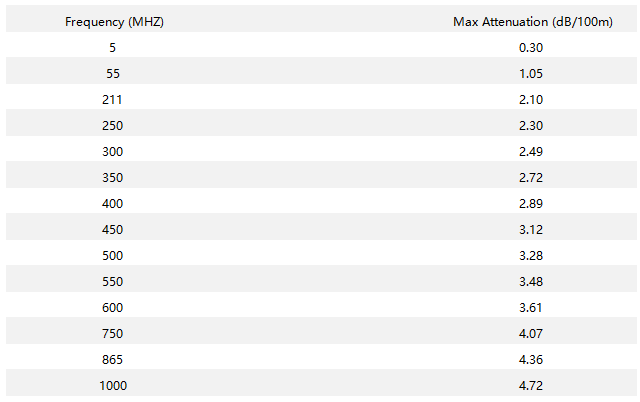

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL Trunk Cable QR860 ×××M

Package: Inquired Length on Wooden Drum, Pallet

Delivery Time: Normally 25 days after receiving the deposit

Brand: HELLOSIGNAL® OR OEM
