01 Standard Drop
CCTV Coaxial Cable
RG59 BC 95% BC PVC CM
Common coaxial cable direction for standard analog and HD analog CCTV camera drops.
RG59 75 Ohm Camera Drop
View Product →
Video Surveillance Infrastructure
CCTV Surveillance Cabling Solution
ZION helps project buyers select CCTV cables by camera type, transmission method, route distance, power layout and installation environment. From RG59 camera drops to RG6 / RG11 long runs, coaxial cable with power and hybrid camera cable, we help turn surveillance drawings into a clearer quote-ready BOM.
Analog & HD Analog CCTV RG59, RG6 and RG11 coaxial cable options for DVR-based camera systems.
Video + Power Routes Coax with 2C power conductors helps simplify camera video and DC power wiring.
Outdoor Camera Runs Jacket, UV exposure, moisture, conduit and messenger conditions should be checked before order.
Distributor Support Datasheets, samples, labeling, packing and OEM discussion for project and channel supply.
Answer First
Answer first: how to specify CCTV surveillance cabling
CCTV cable should be selected by camera type, video transmission format, route distance, power layout and installation pathway. Short camera drops, long trunk routes, outdoor runs and combined video-power routes may need different cable families in the same project BOM.
Route distanceRG59 is often reviewed for standard camera drops, while RG6 or RG11 may be considered where longer distance or lower attenuation is required.
Power layoutCoaxial cable with power or hybrid camera cable can simplify routes when low-voltage power follows the video or data path.
RFQ focusPrepare camera type, video format, route distance, jacket requirement, connector plan, power need, quantity, packing and document requests.
Direct Answer
What cable should be selected for a CCTV surveillance project?
Do not select one cable for every camera route.
A CCTV project should separate camera drops, long runs, outdoor routes, video-with-power routes and IP camera routes. RG59 is commonly used for standard coaxial camera drops. RG6 or RG11 can be considered for longer routes. Coaxial cable with power is useful when video and low-voltage power follow the same path. IP camera projects usually require Ethernet cable or hybrid camera cable according to the power design.
RG59
For standard analog and HD analog CCTV camera drops where coaxial video transmission is required.
RG6 / RG11
For longer camera runs, perimeter routes or trunk routes where transmission margin matters.
Coax with Power
For camera routes that need coaxial video and DC power conductors in one cable construction.
Ethernet / Hybrid Cable
For IP camera, NVR and PoE-related routes where data cable and power design must be confirmed.
System Scope
Where is CCTV cabling normally used in a surveillance system?
| System Area | Typical Equipment | Cable Direction | Procurement Check |
|---|---|---|---|
| Camera drop | Analog camera, HD-CVI, HD-TVI, AHD camera | RG59 CCTV coaxial cable | Confirm route distance, BNC connector plan, conductor material and braid coverage. |
| Long camera route | Warehouse camera, perimeter camera, remote building camera | RG6 or RG11 coaxial cable | Confirm video format, route length, cable diameter, jacket and installation pathway. |
| Video with local power | Camera plus DC power route | Coaxial cable with 2C power conductors | Confirm voltage, current, power pair size and power supply position. |
| IP camera route | Network camera, NVR, PoE switch, camera junction box | Ethernet cable or hybrid camera cable | Confirm data category, PoE plan, conductor size and installation rating. |
| Outdoor pathway | Parking lot, gate camera, exterior wall route | Outdoor-rated coaxial or camera cable | Confirm UV, moisture, conduit, messenger, direct burial or temperature condition. |
Selection Guide
How to choose CCTV cable by route distance and installation condition?
| Project Condition | Recommended Direction | Why It Matters | Information to Confirm |
|---|---|---|---|
| Standard indoor camera route | RG59 CCTV coaxial cable | Common balance of size, handling and video performance for camera drops. | Distance, video format, braid coverage, conductor material and jacket rating. |
| Longer indoor route | RG6 coaxial cable | Provides stronger transmission margin than smaller coax on longer runs. | DVR location, route distance, connector plan and cable OD. |
| Long outdoor or trunk run | RG11 coaxial cable with suitable jacket | Useful where attenuation and outdoor exposure need more attention. | Outdoor exposure, conduit, messenger, PE/PVC jacket and drum length. |
| Camera video plus power | RG59 or RG6 with 2C power conductors | Simplifies installation when video and low-voltage power follow the same route. | Camera voltage, current, power supply location, route length and pair size. |
| IP camera with additional power conductors | Cat5e or hybrid camera cable with power | Supports projects where data and separate power conductors are specified. | PoE plan, data category, conductor size, device compatibility and installation rating. |
Product Direction
Which ZION products can support CCTV surveillance cabling?
02 Longer Route
Longer Route Coax
RG6/U S BC 95% BC PVC
Used when CCTV routes need more transmission margin than standard short camera drops.
RG6 Long Run PVC Jacket
View Product → 03 Trunk Run
Long Trunk Coax
RG11/U BC FPE 95% BC PE
Suitable for long CCTV trunk routes, perimeter cameras and outdoor coaxial pathways.
RG11 PE Jacket Long Distance
View Product → 04 Video + Power

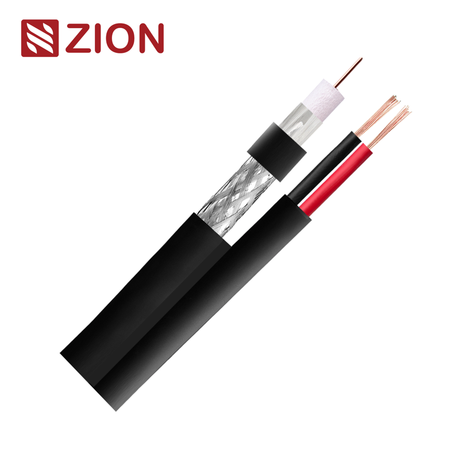

Video + Power Cable
RG6/U 2C 18AWG Figure 8
Combines coaxial video and low-voltage power conductors for camera routes using DC power.
Coax + Power 2C 18AWG Figure 8
View Product → 05 IP Camera
Hybrid Camera Cable
UTP Cat5e 4P + 2/0.75mm²
For IP camera projects where data cable and additional power conductors are specified.
Cat5e Power Pair IP Camera
View Product → Cable Comparison
Which CCTV cable family fits each surveillance route?
| Cable Family | Typical Use | Strength | Buyer Check |
|---|---|---|---|
| RG59 coaxial cable | Standard analog and HD analog CCTV camera drops | Flexible and widely used for moderate camera runs | Confirm braid coverage, conductor material, jacket and route distance. |
| RG6 coaxial cable | Longer camera routes or main coaxial runs | Better margin for longer runs than smaller coaxial cable | Confirm connector, cable diameter, route length and installation pathway. |
| RG11 coaxial cable | Long trunk routes, outdoor routes or perimeter camera runs | Lower attenuation direction for long-distance CCTV routes | Confirm PE/PVC jacket, UV condition, messenger support or conduit. |
| Coaxial cable with power | Camera video plus DC power in one route | Reduces separate cable pulling for camera power | Confirm camera voltage, current, pair size and power supply location. |
| Hybrid network camera cable | IP camera data plus added power conductors | Useful for structured camera wiring with extra power demand | Confirm category, PoE design, device compatibility and installation rating. |
Applications
When should CCTV cabling be planned as a project BOM?
Commercial Buildings
Separate lobby, corridor, elevator, parking and control-room routes so cable types and route lengths are clear before procurement.
Warehouses and Industrial Sites
Long aisles, perimeter cameras and outdoor sections need closer review of attenuation, jacket, shielding and power voltage drop.
Residential Compounds
Gate, wall, parking and monitoring-room routes should confirm UV exposure, conduit condition, power layout and connector method.
Risk Control
What CCTV cabling risks should be checked before purchase order?
Video Loss Long routes need RG type, conductor material and attenuation expectations checked before order.
Weak Shielding Poor braid coverage can expose video signals to noise and unstable image quality.
Power Voltage Drop Power conductors must match camera voltage, current and route length.
Wrong Jacket Indoor, outdoor, riser, plenum and conduit routes should not use the same cable blindly.
Field Checklist
How to verify the CCTV cable BOM before final procurement?
| Risk | Typical Cause | Field Result | Prevention |
|---|---|---|---|
| Image quality problem | Wrong coax size or long run selected without loss review | Weak image, noise or unstable HD video | Share video format, route length and camera count before cable selection. |
| Power instability | Power pair too small for camera current and distance | Camera reset, low voltage or night-mode failure | Confirm voltage, current, route length and power supply location. |
| Outdoor aging | Indoor PVC cable used outdoors without UV or moisture protection | Jacket cracking and service failure | Specify PE, UV, messenger or conduit condition where needed. |
| Connector mismatch | Coax diameter not aligned with BNC or F connector plan | Rework and signal problems at termination | Confirm cable OD and connector type before order. |
| Mixed cable families | RG59, RG6, RG11 and hybrid cables are ordered without route labels | Site confusion and wrong cable pulling | Use clear item names, labels, packing and route notes in the BOM. |
Procurement Workflow
How to prepare a clear CCTV cable inquiry?
Map Camera Routes
Separate indoor drops, long runs, outdoor perimeter routes, power routes and equipment-room trunks.
Choose Cable Families
Match RG59, RG6, RG11, coax with power or hybrid camera cable to distance and system design.
Confirm Project Details
Check jacket rating, conductor material, shielding, connector plan, packing length and document needs.
RFQ Documents
What information should be sent with a CCTV cable RFQ?
| RFQ Item | Why It Matters | What to Confirm |
|---|---|---|
| Camera schedule | Helps separate camera quantity, route length and cable family by installation area. | Camera type, video format, indoor/outdoor location and monitoring-room direction. |
| Cable specification | Prevents substitutions that may affect shielding, conductor performance or installation rating. | RG type, impedance, conductor material, braid coverage, jacket and power pair size. |
| Installation pathway | Jacket and construction should match indoor, outdoor, conduit, riser or messenger routing. | UV, moisture, flame rating, conduit, messenger support and temperature condition. |
| Termination plan | Connector mismatch can cause rework and poor signal performance. | BNC, F type, cable OD, stripping method and any pre-termination request. |
| Commercial support | Documents, packing and labeling affect distributor and project approval processes. | Quantity, drum length, destination, datasheet, sample, OEM label and packing request. |
FAQ
What do buyers usually ask about CCTV surveillance cabling?
What information is needed for a CCTV cable quotation?
Share camera type, video format, route distance, RG type, jacket requirement, power need, connector plan, quantity, packing and document requests.
When should RG59 CCTV cable be used?
RG59 is commonly used for standard analog and HD analog CCTV camera drops where the route distance is moderate and the system design uses coaxial video transmission.
When should RG6 or RG11 be selected?
RG6 and RG11 are usually considered for longer CCTV routes where lower attenuation or stronger transmission margin is needed. The final choice should be checked against distance, equipment and pathway conditions.
What is coaxial cable with power?
Coaxial cable with power combines a coaxial video cable and power conductors in one construction so camera video and low-voltage power can follow the same route.
Can one CCTV cable type cover every camera?
Not always. Larger projects often require several cable families because distance, video format, outdoor exposure, power layout and installation pathway can vary by camera route.
Why does braid coverage matter for CCTV cable?
Braid coverage affects shielding performance. Better shielding helps reduce interference risk and supports more stable video quality in electrically noisy environments.
What should be checked for outdoor CCTV cable?
Confirm UV exposure, moisture, conduit, direct burial, messenger support, jacket material and temperature conditions before selecting the cable construction.
How do I avoid camera power voltage drop?
Provide camera voltage, current, route length and power supply position so the power conductor size can be reviewed before order confirmation.
Can ZION support IP camera cable directions?
Yes. Hybrid Cat5e with power and related low-voltage cable options can be discussed when project drawings require data and additional power conductors.
Can I request CCTV cable samples?
Yes. Sample discussion can be requested through Sales Support. Please share the target cable type, application, approximate quantity and any required specification.
Can datasheets or product documents be provided?
Yes. Datasheet and project document requests should be submitted with the target cable model, specification requirement, quantity and destination market.
Can ZION support OEM or distributor packing?
OEM label, distributor packing and private label discussion can be reviewed when label content, artwork expectations, packing quantity and order quantity are provided.
What is the MOQ for CCTV cable?
MOQ depends on cable type, construction, packing, jacket material and customization level. Send the target specification and quantity to Sales Support for review.
Can ZION provide certification or compliance documents?
Available documents depend on the specific cable model and requested market. Please confirm the exact document requirement before order.
How can quotation revisions be reduced?
Send camera schedule, route length, cable family, power requirement, installation environment, quantity, packing and document needs in one inquiry.
Need a CCTV cable BOM for a surveillance project?
Send camera list, route length, video format, power requirement, installation condition, connector plan, quantity, packing and document requests. ZION can help organize the CCTV cable direction for quotation, sample discussion and project supply review.
