RG6 2C
hellosignal
7102001
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Surveillance is a primary function in safety and security for many environments such as Schools, Hospitals, Hotels, Malls, Airports, Stations, Casinos, Prisons, businesses, and Personals.
The selection of cameras and other electronic equipment is a primary concern, but the link between the electronics should be taken with extreme caution . ZION COMMUNICATION provides CCTV coaxial cables for short-run applications and the most critical long-distance applications. Our CCTV coaxial cables offer optimum performance for main distribution use in video surveillance systems where extended cable runs are required.
Our CCTV coaxial cables are available to support most main video surveillance solution brands, such as SONY, HONEYWELL, ARIX, HIKVISION, DAHUA, HELLOSIGNAL, and more. All CCTV Coaxial cables from ZION COMMUNICATION comply with International standards within the industry. ZION COMMUNICATION CCTV coaxial cables are available as UL and with a CM, CMR, or CMP rating, and CPR certificates.
Price: You can get the ultimate reasonable factory price for fire alarm cables from us.
Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy, which will save cost ultimately and create biggest value for you.
Quality Guarantee: You will received 100% quality pass testing before sending to our customers; also we are responsible for all products during it’s normal lifetime.

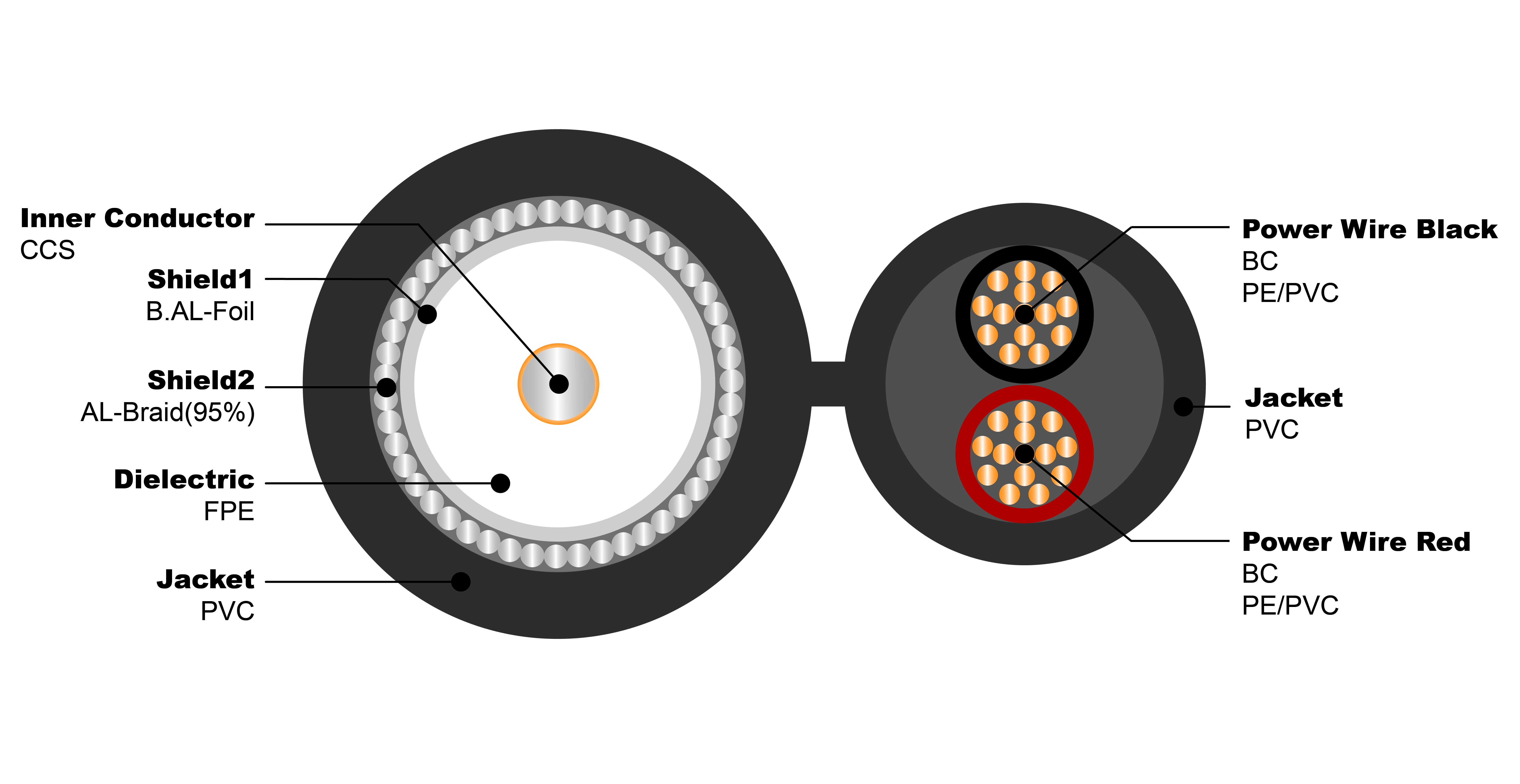

RG6/U+2C18AWG Figure 8
75 Ohm CCTV coaxial Cable
NO.7102001
Inner Conductor: 1.02mm/0.04"/18AWG CCS
Dielectric: 4.45mm/0.175" Foamed-PE
Shield 1: Bonded Aluminum Foil Shield
Shield 2: AL braid wire 95% coverage
Jacket: 6.65mm PVC
Power Wire Conductor: 2x18AWG/(16*0.25mm) BC
Power wire Diameter of insulation: 1.9mm PE/PVC (Red, Black)
Jacket: 5.05mmPVC
Application: For Use in Longer CCTV Run Lengths
Inner Conductor Resistance: The Max. at 20℃ shall be < 87 Ω/km (26.6 Ω/kft)
Capacitance: 52 ±3 pF/m 17±0.3 pF/ft
Impedance: 75 ± 3 Ω
Return loss: between 5 and 1000MHz: > 22dB
Velocity of Propagation:0.85
Sparker Test (VAC):4
Cable bend radius: 10 times the cable diameter
Operating Temp Range: -20 ℃ to 60℃
Cable dimensions: 6.65×5.05mm

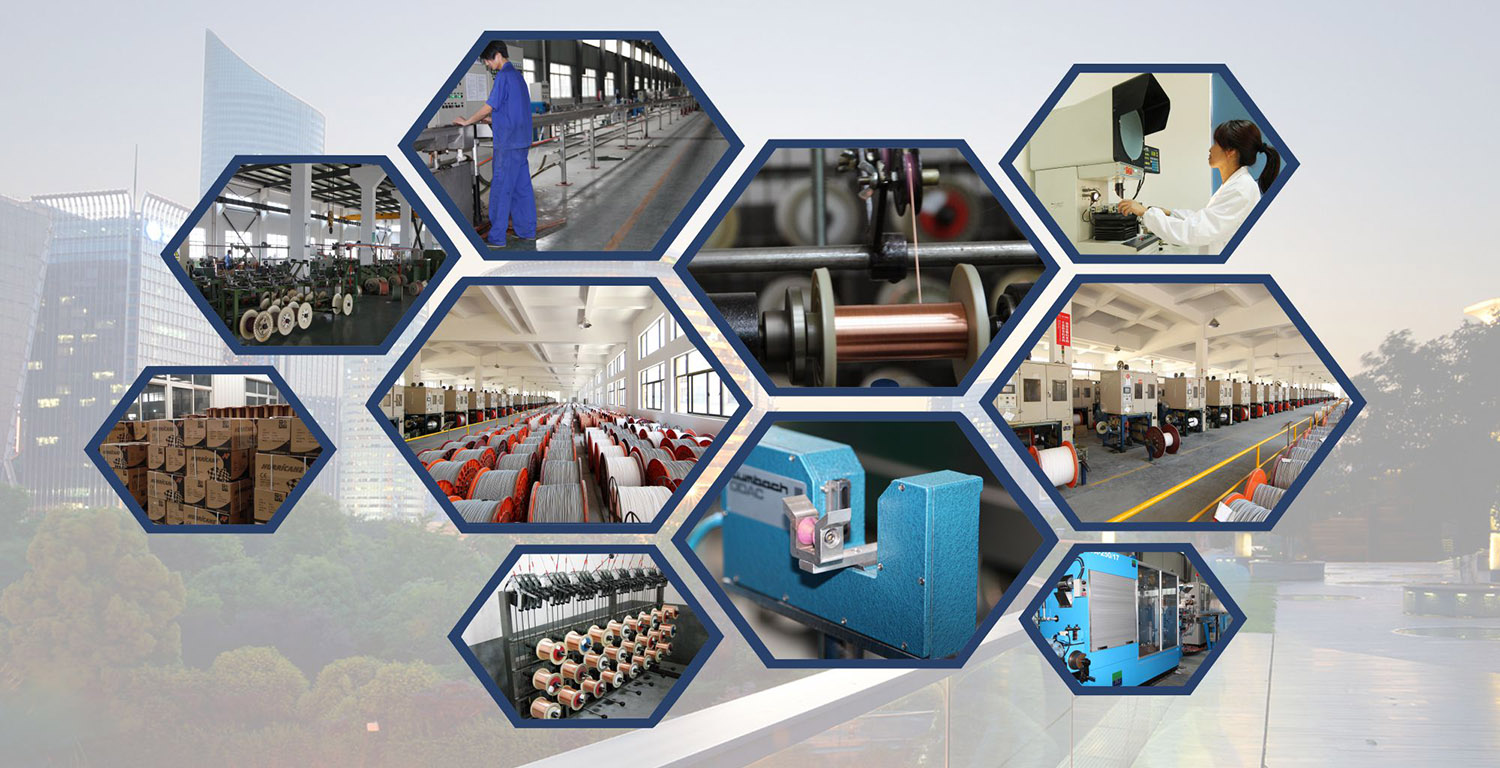

We have a study and design label, a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminium) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+
We have abundant types of packing for you, such as reels, plastic spools, wooden spools, pull boxes, colorful cartons, pallets, and many others. Also, our design team will supply you best solution of packing for size, firm, and artistic out looking.
Marking: HELLOSIGNAL RG6/U+2C18AWG Figure 8 CCTV COAXIAL CABLE 7102001 ×××M/FT
Package: Inquired Length on Reel, Pull Box, Plastic Spool, wooden Spool, pallet …
Delivery time: Normally 25 days after receiving the deposit.
Brand: HELLOSIGNAL® OR OEM
Surveillance is a primary function in safety and security for many environments such as Schools, Hospitals, Hotels, Malls, Airports, Stations, Casinos, Prisons, businesses, and Personals.
The selection of cameras and other electronic equipment is a primary concern, but the link between the electronics should be taken with extreme caution . ZION COMMUNICATION provides CCTV coaxial cables for short-run applications and the most critical long-distance applications. Our CCTV coaxial cables offer optimum performance for main distribution use in video surveillance systems where extended cable runs are required.
Our CCTV coaxial cables are available to support most main video surveillance solution brands, such as SONY, HONEYWELL, ARIX, HIKVISION, DAHUA, HELLOSIGNAL, and more. All CCTV Coaxial cables from ZION COMMUNICATION comply with International standards within the industry. ZION COMMUNICATION CCTV coaxial cables are available as UL and with a CM, CMR, or CMP rating, and CPR certificates.
Price: You can get the ultimate reasonable factory price for fire alarm cables from us.
Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy, which will save cost ultimately and create biggest value for you.
Quality Guarantee: You will received 100% quality pass testing before sending to our customers; also we are responsible for all products during it’s normal lifetime.
RG6/U+2C18AWG Figure 8
75 Ohm CCTV coaxial Cable
NO.7102001
Inner Conductor: 1.02mm/0.04"/18AWG CCS
Dielectric: 4.45mm/0.175" Foamed-PE
Shield 1: Bonded Aluminum Foil Shield
Shield 2: AL braid wire 95% coverage
Jacket: 6.65mm PVC
Power Wire Conductor: 2x18AWG/(16*0.25mm) BC
Power wire Diameter of insulation: 1.9mm PE/PVC (Red, Black)
Jacket: 5.05mmPVC
Application: For Use in Longer CCTV Run Lengths
Inner Conductor Resistance: The Max. at 20℃ shall be < 87 Ω/km (26.6 Ω/kft)
Capacitance: 52 ±3 pF/m 17±0.3 pF/ft
Impedance: 75 ± 3 Ω
Return loss: between 5 and 1000MHz: > 22dB
Velocity of Propagation:0.85
Sparker Test (VAC):4
Cable bend radius: 10 times the cable diameter
Operating Temp Range: -20 ℃ to 60℃
Cable dimensions: 6.65×5.05mm
We have a study and design label, a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminium) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+
We have abundant types of packing for you, such as reels, plastic spools, wooden spools, pull boxes, colorful cartons, pallets, and many others. Also, our design team will supply you best solution of packing for size, firm, and artistic out looking.
Marking: HELLOSIGNAL RG6/U+2C18AWG Figure 8 CCTV COAXIAL CABLE 7102001 ×××M/FT
Package: Inquired Length on Reel, Pull Box, Plastic Spool, wooden Spool, pallet …
Delivery time: Normally 25 days after receiving the deposit.
Brand: HELLOSIGNAL® OR OEM
