NO.7100161 RG59 BC 95% BC PVC CM

  • RG59

  • hellosignal

  • 7100161

  • Coaxial Cable

  • 75 ohm

  • UL, ETL, CE, RoHS

  • 100m, 305m,500m,1000m,500ft,1000ft

  • roll, wooden spool, carton, pallet

  • 30KM

  • Normally 15 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

zion LOGORG59 BC 95% BC PVC CM

75 Ohm CCTV coaxial Cable

NO.7100161

Construction Parameters:

Inner Conductor

0.032"/0.81mm/20 AWG BC

Dielectric

0.144"/3.66mm  Foamed PE

Shield 1

/

Shield 2

0.12mm Bare Copper
braid wire 95% coverage

Jacket

0.238"±0.006"/6.05±0.15mm PVC CM

Jacket Thickness

0.032"/0.81mm

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance


The Max. at 20 shall be <   33.4  Ω/km

10.2Ω/1000ft

Capacitance

52 ±3 pF/m       15.8 ±1 pF/ft


Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4


Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20  to 60

Cable diamensions

0.238"±0.006"/6.05±0.15mm PVC CM

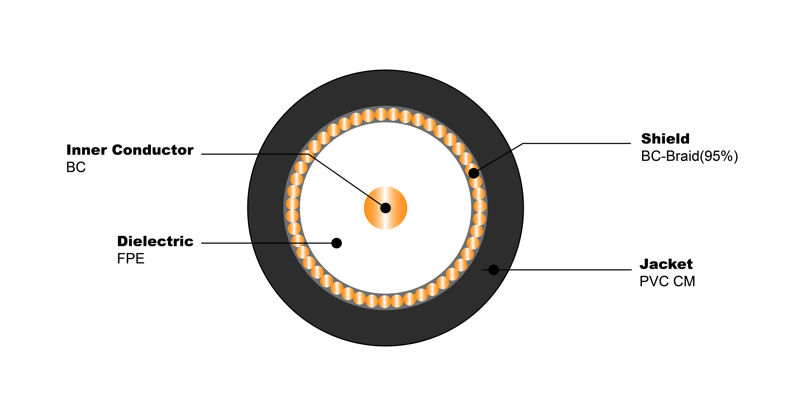

Cross Section


Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.86

2.82

55

2.05

6.73

83

2.45

8.04

187

3.60

11.81

211

3.80

12.47

250

4.10

13.45

300

4.45

14.60

350

4.80

15.75

400

5.10

16.73

450

5.40

17.72

500

5.70

18.70

550

5.95

19.52

600

6.20

20.34

750

6.97

22.87

865

7.52

24.67

1000

8.12

26.64


Order Informations:

Marking

HELLOSIGNAL RG59 BC 95% BC PVC

CCTV COAXIAL CABLE 7100161 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®OR OEM
