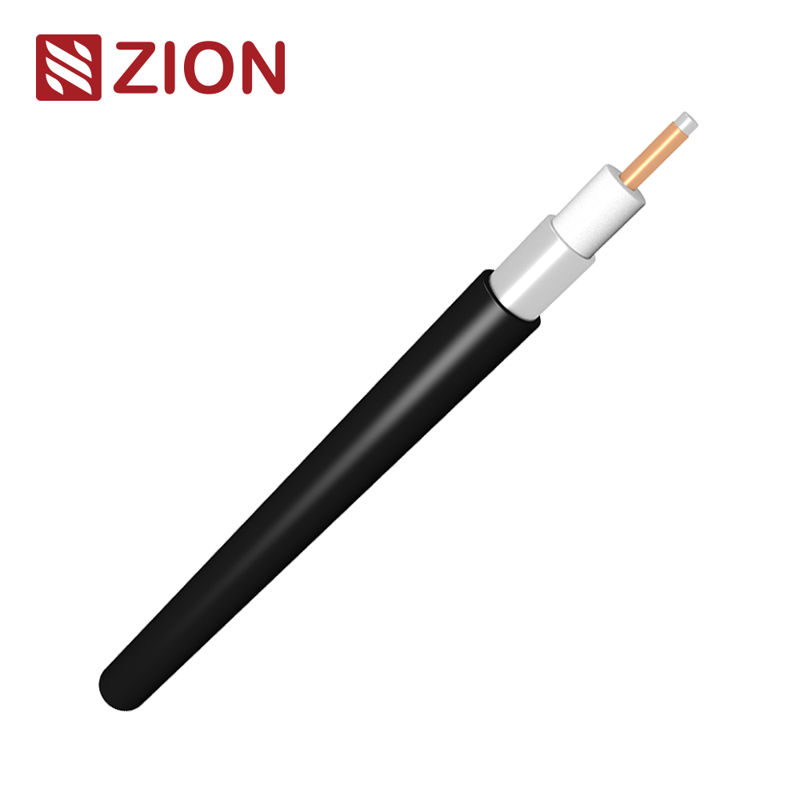

Trunk Coax Cable PS 625

75 Ohm CATV coaxial Cable

NO.7100412

■ Construction Parameters:

Inner Conductor: 0.137" / 3.48 mm / 7 AWG Copper Clad Aluminum (CCA)

Dielectric: 0.565" / 14.35 mm Foamed PE

Shield 1: 0.625" / 15.88 mm Welding Smooth Aluminum Tube

Shield Thickness: 0.030" / 0.76 mm

Jacket: 0.685" / 17.40 mm PE

Jacket Thickness: 0.030" / 0.76 mm

Application: For Use in Longer CATV Run Lengths

■ Electrical Characteristics:

Inner Conductor Resistance: Max. at 20℃ < 2.76 Ω/km

Capacitance: 50 ± 3 pF/m

Impedance: 75 ± 2 Ω

Return Loss: > 22 dB between 5 and 1000 MHz

Velocity of Propagation: 87%

Sparker Test (VAC): 4

■ Mechanical and Environmental Properties:

Cable Bend Radius: 10 times the cable diameter

Operating Temperature Range: -20℃ to 60℃

Cable Dimensions: 0.685" / 17.40 mm PE

■ Cross Section:

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL Trunk Coax Cable PS 625 CATV COAXIAL CABLE 7100412 ×××M/FT

Package: Inquired Length on Wooden Spool, Pallet, etc.

Delivery Time: Normally 25 days after receiving the deposit

Brand: HELLOSIGNAL® or OEM
