Cable & Wire | Good quality and good service based on reasonable prices.
info@zion-communication.com
 |
PS
hellosignal
7100410
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

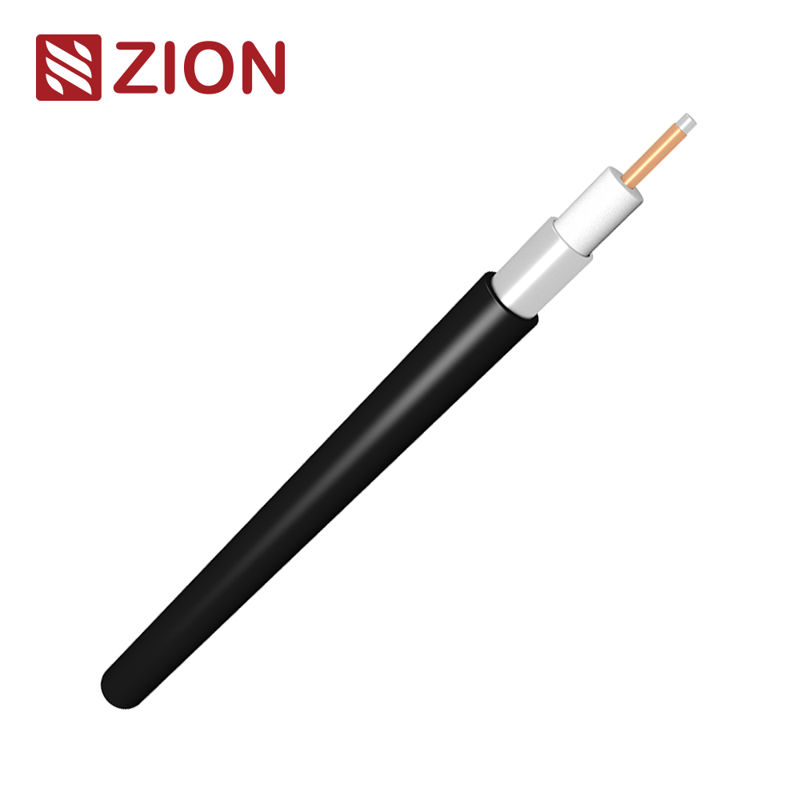

75 Ohm CATV coaxial Cable NO.7100410 | |||
Construction Parameters: | |||
Inner Conductor | 0.109"/2.77mm/12AWG CCA | ||
Dielectric | 0.450"/11.43mm Foamed PE | ||
Shield 1 | 0.5"/12.7mm Welding Smooth Aluminum Tube | ||
Shield Thickness | 0.024I"/0.61mm | ||
Jacket | 0.570"/14.48mm PE | ||
Jacket Thickness | 0.030"/0.76mm | ||
Application | For Use in Longer CATV Run Lengths | ||
Electrical Characteristics: | |||
Inner Conductor Resistance | The Max. at 20℃ shall be < 4.43 Ω/km | ||
Capacitance | 50 ± 3 pF/m | ||
Impedance | 75 ± 2 Ω | ||
Return loss | between 5 and 1000MHz: > 22dB | ||
Velocity of Propagation | 0.87 | ||
Sparker Test (VAC) | 4 | ||
Mechanical and Envrionmental Properties | |||
Cable bend radius | 10 times the cable diameter | ||
Operating Temp Range | -20 ℃ to 60℃ | ||
Cable diamensions | 0.570"/14.48mm PE | ||

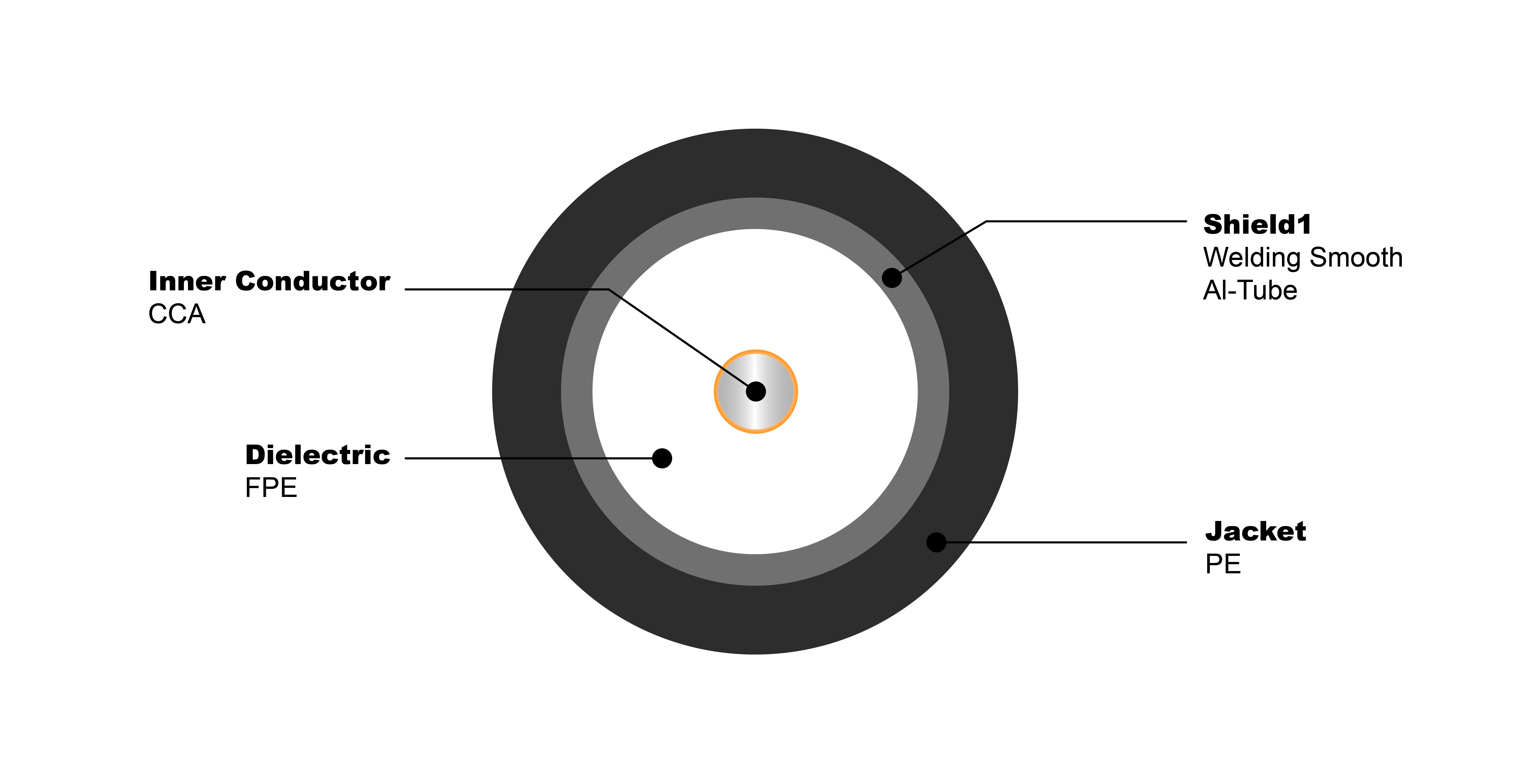

Cross Section | |||
| |||
Attenuation(20℃): | |||
Frequency (MHZ) | Nominal (dB/100m) | Max Attenuation (dB/100m) | |
5.00 | 0.52 | 0.52 | |
55.00 | 1.71 | 1.77 | |
83.00 | 2.10 | 2.17 | |
211.00 | 3.48 | 3.58 | |
250.00 | 3.77 | 3.94 | |
300.00 | 4.13 | 4.30 | |
350.00 | 4.46 | 4.69 | |
400.00 | 4.82 | 5.02 | |
450.00 | 5.12 | 5.35 | |
500.00 | 5.41 | 5.67 | |
550.00 | 5.74 | 5.97 | |
600.00 | 6.00 | 6.27 | |
750.00 | 6.69 | 7.09 | |
865.00 | 7.22 | 7.68 | |
1000.00 | 7.91 | 8.27 | |
Order Informations: | |||
Marking | HELLOSIGNAL Trunk Coax Cable PS 500 CATV COAXIAL CABLE 7100410 ×××M/FT | ||
Package | Inquired Length on wooden Spool,pallet … | ||
Delivery time | Normally 25 days after received the deposit. | ||
Brand | HELLOSIGNAL® OR OEM | ||
75 Ohm CATV coaxial Cable NO.7100410 | |||
Construction Parameters: | |||
Inner Conductor | 0.109"/2.77mm/12AWG CCA | ||
Dielectric | 0.450"/11.43mm Foamed PE | ||
Shield 1 | 0.5"/12.7mm Welding Smooth Aluminum Tube | ||
Shield Thickness | 0.024I"/0.61mm | ||
Jacket | 0.570"/14.48mm PE | ||
Jacket Thickness | 0.030"/0.76mm | ||
Application | For Use in Longer CATV Run Lengths | ||
Electrical Characteristics: | |||
Inner Conductor Resistance | The Max. at 20℃ shall be < 4.43 Ω/km | ||
Capacitance | 50 ± 3 pF/m | ||
Impedance | 75 ± 2 Ω | ||
Return loss | between 5 and 1000MHz: > 22dB | ||
Velocity of Propagation | 0.87 | ||
Sparker Test (VAC) | 4 | ||
Mechanical and Envrionmental Properties | |||
Cable bend radius | 10 times the cable diameter | ||
Operating Temp Range | -20 ℃ to 60℃ | ||
Cable diamensions | 0.570"/14.48mm PE | ||
Cross Section | |||
| |||
Attenuation(20℃): | |||
Frequency (MHZ) | Nominal (dB/100m) | Max Attenuation (dB/100m) | |
5.00 | 0.52 | 0.52 | |
55.00 | 1.71 | 1.77 | |
83.00 | 2.10 | 2.17 | |
211.00 | 3.48 | 3.58 | |
250.00 | 3.77 | 3.94 | |
300.00 | 4.13 | 4.30 | |
350.00 | 4.46 | 4.69 | |
400.00 | 4.82 | 5.02 | |
450.00 | 5.12 | 5.35 | |
500.00 | 5.41 | 5.67 | |
550.00 | 5.74 | 5.97 | |
600.00 | 6.00 | 6.27 | |
750.00 | 6.69 | 7.09 | |
865.00 | 7.22 | 7.68 | |
1000.00 | 7.91 | 8.27 | |
Order Informations: | |||
Marking | HELLOSIGNAL Trunk Coax Cable PS 500 CATV COAXIAL CABLE 7100410 ×××M/FT | ||
Package | Inquired Length on wooden Spool,pallet … | ||
Delivery time | Normally 25 days after received the deposit. | ||
Brand | HELLOSIGNAL® OR OEM | ||
Trunk Coax Cable PS 500
