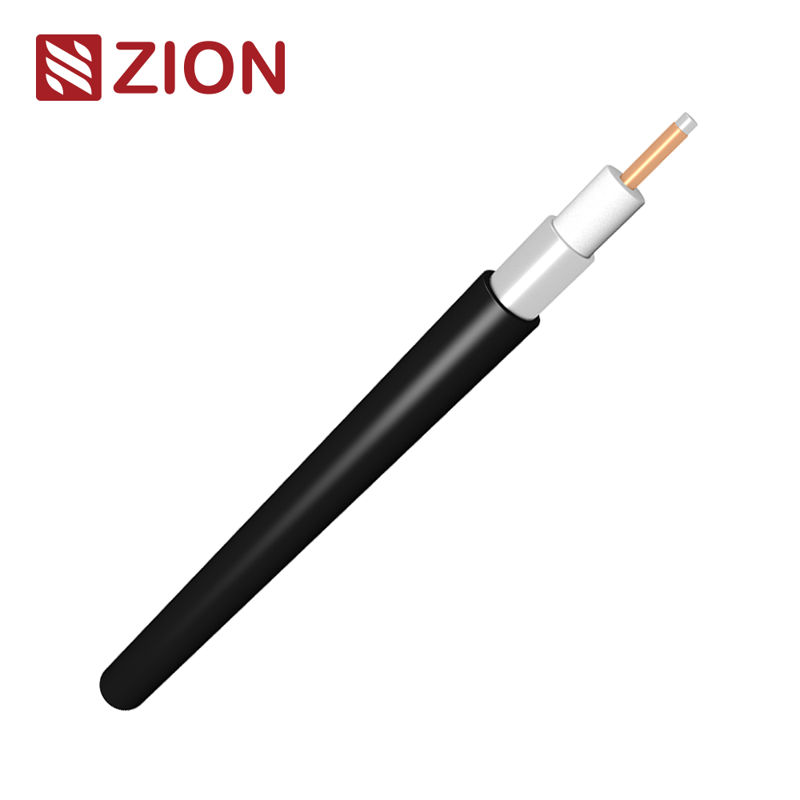

NO.7100411 Trunk Coax Cable PS 565

Construction Parameters:

Inner Conductor

0.129"/3.28mm/8AWG CCA

Dielectric

0.519"/13.2mm Foamed PE

Shield 1

0.565"/14.35mm Welding Smooth Aluminum Tube

Shield Thickness

0.023"/0.58mm

Jacket

0.625"/15.86mm PE

Jacket Thickness

0.030"/0.76mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be < 3.15 Ω/km

Capacitance

50 ± 3 pF/m

Impedance

75 ± 2 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.89

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

0.625"/15.86mm PE

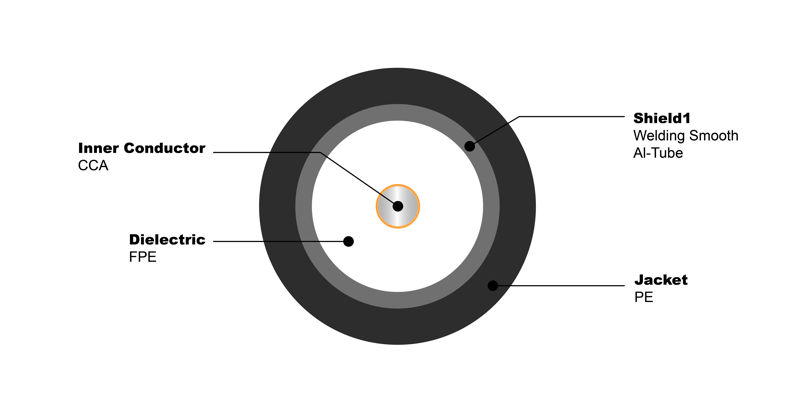

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Nominal (dB/100m)

Max Attenuation (dB/100m)

5.00

0.43

0.46

55.00

1.51

1.54

83.00

1.84

1.90

211.00

2.99

3.12

250.00

3.25

3.38

300.00

3.58

3.71

350.00

3.87

4.04

400.00

4.17

4.33

450.00

4.43

4.59

500.00

4.69

4.89

550.00

4.92

5.12

600.00

5.18

5.38

750.00

5.84

6.07

865.00

6.33

6.56

1000.00

6.82

7.12

Order Informations:

Marking

HELLOSIGNAL  Trunk Coax Cable PS 565

CATV COAXIAL CABLE 7100411 ×××M/FT

Package

Inquired Length on wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
