Unitube Non-Armored Optic Cable
N/M
N/M
ISO9001
4km/Spool
Wooden Spool ，Φ1100*750mm
40km
5-25 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.

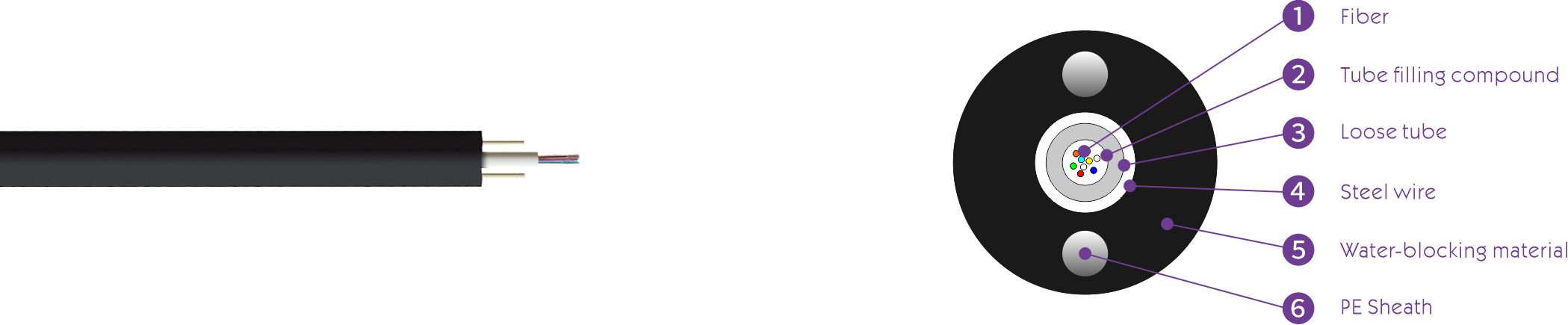

GYXY Optical Fiber Cable Non-Armored Central Tube Duct Installation
The fibers, 250μm, are positioned in a loose tube made of a high-modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Two parallel steel wires ensure tensile strength
PE sheath protects cable from ultraviolet radiation
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
G.652.D
Attenuation:
o @850nm: N/A
o @1300nm: N/A
o @1310nm: ≤0.36 dB/km
o @1550nm: ≤0.22 dB/km
Bandwidth:
o @850nm: N/A
o @1300nm: N/A
Numerical Aperture:
o 0.200±0.015 NA
Cable Cut-off Wavelength (λcc):
o ≤1260nm
G.655
Attenuation:
o @850nm: N/A
o @1300nm: N/A
o @1310nm: ≤0.40 dB/km
o @1550nm: ≤0.23 dB/km
Bandwidth:
o @850nm: N/A
o @1300nm: N/A
Numerical Aperture:
o 0.275±0.015 NA
Cable Cut-off Wavelength (λcc):
o ≤1260nm
50/125um Fiber
Attenuation:
o @850nm: ≤3.0 dB/km
o @1300nm: ≤1.0 dB/km
o @1550nm: N/A
Bandwidth:
o @850nm: ≥500 MHz · km
o @1300nm: ≥1000 MHz · km
62.5/125um Fiber
Attenuation:
o @850nm: ≤3.0 dB/km
o @1300nm: ≤1.0 dB/km
o @1550nm: N/A
Bandwidth:
o @850nm: ≥200 MHz · km
o @1300nm: ≥600 MHz · km
GYXY-2~12
· Fiber Count: 2~12
· Cable Diameter: 9.5 mm
· Cable Weight: 90 kg/km
· Bending Radius:
o Dynamic: 10D
o Static: 20D
· Tensile Strength:
o Long term: 600 N
o Short term: 1500 N
· Crush Resistance:
o Long term: 300 N/100 mm
o Short term: 1000 N/100 mm
GYXY-12~24
· Fiber Count: 12~24
· Cable Diameter: 10.2 mm
· Cable Weight: 100 kg/km
· Bending Radius:
o Dynamic: 10D
o Static: 20D
· Tensile Strength:
o Long term: 1000 N
o Short term: 3000 N
· Crush Resistance:
o Long term: 300 N/100 mm
o Short term: 1000 N/100 mm
Storage/Operating temperature: -40℃ to +70℃
Such cables have a single tube for the fibers with the added protection of armoring, APL, or PSP wires, depending on their application. They are lightweight and generally designed for FTTH drop applications (aerial, duct), balancing the cost and being durable.

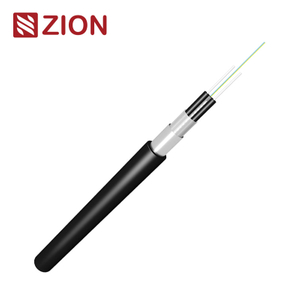

GJYXFHA/GJYXFHS: Light-armor bow-type drop cable with aluminum tape (APL) or steel tape (PSP), LSZH sheath, for duct/aerial FTTH.
GYXY: Non-armored central tube with steel wires, PE sheath, for aerial/duct use.
GYFXY: FRP rods, uni-tube, PE sheath, lightweight for aerial/duct applications.

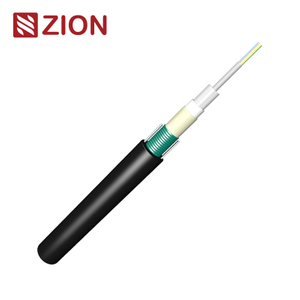

GYXTW: PSP-armored central tube with steel wires, PE sheath, for aerial/duct installations.
These cables include several loose tubes which are laid around a central strength member, and the outer coat is done with an armoring for added protection, including APL, PSP, and FRP tape. They are intended for installation outdoors in ducts or direct burial, some with added features like anti-rodent/bird properties.

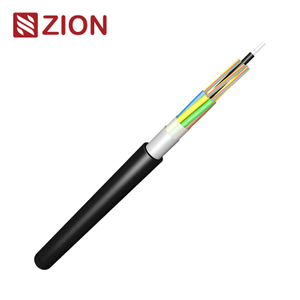

GYFA: APL-armored, stranded loose-tube, PE sheath, for duct/direct burial.
GYFS: PSP-armored, stranded loose-tube, PE sheath, for duct/direct burial.
GYFS Semi-dry: PSP-armored, semi-dry stranded loose-tube, PE sheath, for duct/direct burial with reduced water ingress.
GYFTA: GFRP (FRP) and APL-armored, stranded loose-tube, PE sheath, for duct/direct burial.
GYFTS: GFRP and PSP-armored, stranded loose-tube, PE sheath, for duct/direct burial.

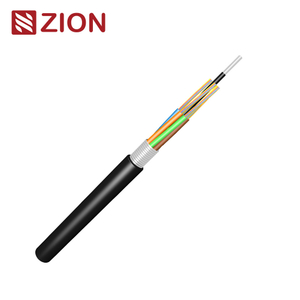

GYTA-1: APL-armored, stranded loose-tube, PE sheath, for duct/direct burial.

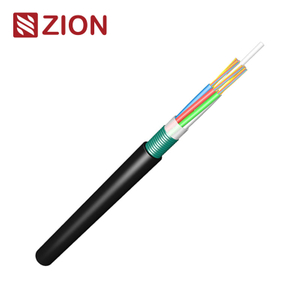

GYTS-1: PSP-armored, stranded loose-tube, PE sheath, for duct/direct burial.
GYFTY73-2: FRP tape, double PE sheath, anti-rodent/anti-bird, for aerial/duct use.
Stranded Loose-tube Non-armored Cables
These cables do not use metallic armoring, but rather have non-metallic strength members (FRP or CSM) added for strength. They are proper for such installations either in aerial or duct line where the metal components are required to be limited.
GYFTY: GFRP and CSM, stranded loose-tube, PE sheath, all-dielectric for aerial/duct.
GYTY: Non-armored, stranded loose-tube, PE sheath, for aerial/duct applications.
All-Dielectric Stranded Loose-tube Cables
Completely non-metallic cables (GFRP, glass yarns, or CSM), electrodynamics is excluded from these cables, making them suitable for high-voltage areas or areas that need lightning resistance. Some are additionally improved to ward off the birds/rodents.
GYFY: GFRP and CSM, stranded loose-tube, PE sheath, all-dielectric for aerial/duct.

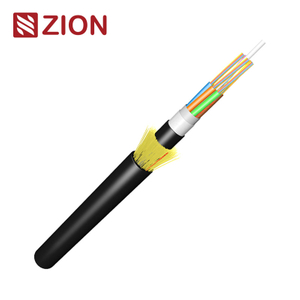

GYFY63: Glass yarns, double PE sheath, anti-rodent, all-dielectric for aerial/duct.

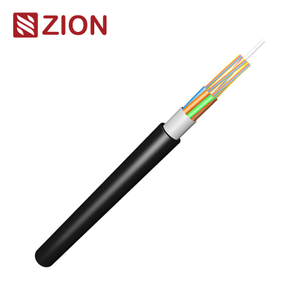

GYFY Semi-dry: GFRP and CSM, semi-dry stranded loose-tube, PE sheath, all-dielectric for aerial/duct.
Category | Products | Key Features | Applications |
Uni-tube Armored | APL/PSP armor or steel wires, LSZH/PE | Aerial, Duct, FTTH | |
Stranded Loose-tube Armored | GYFA, GYFS, GYFS Semi-dry, GYFTA, GYFTS, GYTA-1, GYTS-1, GYFTY73-2 | APL/PSP/FRP armor, | Duct, Direct Burial |
Stranded Loose-tube Non-armored | GFRP/CSM, no armor, | Aerial, Duct | |
All-Dielectric Stranded Loose-tube | GFRP/CSM/Glass yarns, | Aerial, Duct |
Uni-tube vs. Stranded: Uni-tube cables, like GJYXFHA and GYXTW, are easier and more lightweight, appropriate for drop or short distances, with stranded loose-tube alternatives like GYFA and GYFTS permitting long-haul usage in harsh environments and higher fiber capacity and durability.
Armored vs. Non-armored: Armored cables like GYFS and GYTA-1 are designed for areas with mechanical hazards or for installation in bursting soil, whereas non-armored (use of) GYFTY and all-dielectric cables (use of) GYFY prioritize lightweight and non-conductive properties.
Special Features: GYFTY73-2 and GYFY63 provide anti-rodent and anti-bird properties, while GYFS Semi-dry and GYFY Semi-dry that keep water out using semi-dry technology.
This classification does justice to the scope of the technical applications these cables support in networks from FTTH drop lines to reliable power line communication channels. It is possible to sort out the cables by their types for enhanced clarity on each one. Please Contact Zion communication know if further detailed data is required.
