GJYXFHA / GJYXFHS Light Armor Bow type Drop Optical Fiber Cable

GJYXFHA / GJYXFHS

Optical Fiber Cable Light Armor Bow type Drop
Duct Installation

Description:

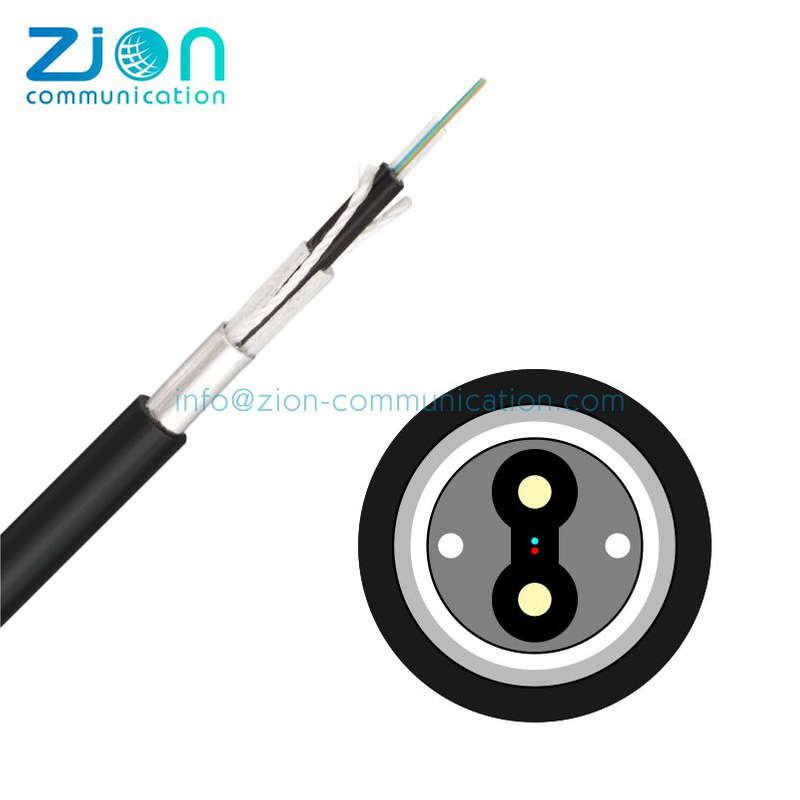

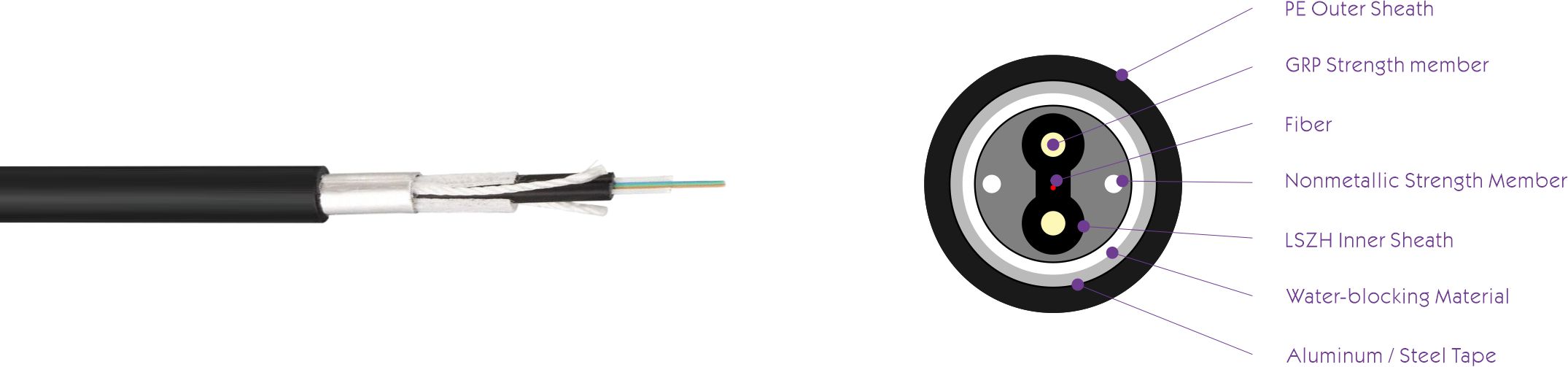

The typical GJYXFHA/GJYXFHS duct bow-type drop cable is composed of one GJXFH cable in the middle and
two strength members on both sides, longitudinal wrapped by aluminum / steel tape and HDPE sheath.

Novel groove design, easily strip and splice, simplified installation and maintenance, higher tensile strength

Suitable as duct cable

Waterproof, good safety

Standard:

ITU-T Rec. G.657A

IEC 60794

GR-409

ISO9001

ICEA-596

YD/T 1997-2009

Structure and technical parameters:

Cable
Type

Cable Size(mm)

Cable Weight
(Kg/km)

Tensile Strength
Long/Short Term(N)

Crush Resistance
Long/Short Term
(N/100mm)

Bending Radius
Static/Dynamic (mm)

Storage, operating
Temperature(℃)

GJYXFHA-1

7.2±0.3

42

300/600

1000/2200

10/20

-20〜+60

GJYXFHA-2

7.2±0.3

42

300/600

1000/2200

10/20

-20〜+60

GJYXFHS-1

7.4±0.3

59

500/1000

1000/2200

10/20

-20〜+60

GJYXFHS-2

7.4±0.3

59

500/1000

1000/2200

10/20

-20〜+60
