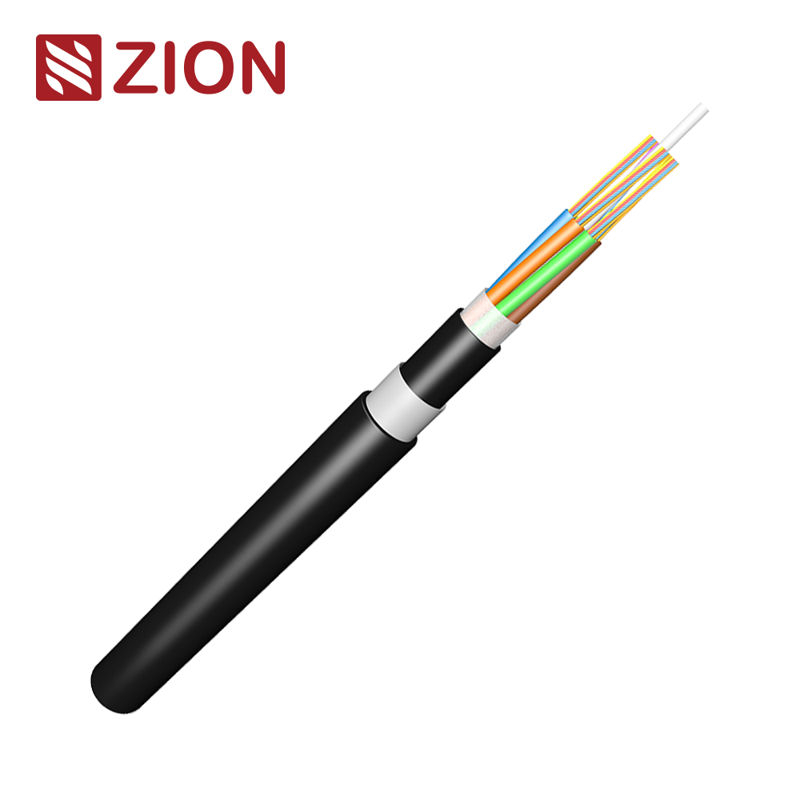

GYFTY73-2 Anti-Rodent Anti Bird FRP Tape Double Sheath Stranded Loose Tube

GYFTY73-2

Anti-Rodent Anti Bird FRP Tape Double Sheath
Stranded Loose Tube Duct Installation

1. Inner Sheath: black polyethylene.

2. Loose Tube: thermoplastic material, containing optical fibres and filled with gel.

3. Central Strength Member (CSM): glass fibre reinforced plastic rod (GFRP) coated with polyethylene when needed.

4. Filler

5. Longitudinal Water Blocking Material: cable filling compound.

6. Non-metallic Armor: FRP tape.

7. Outer Sheath: black polyethylene.

Features and Applications:

Good crush resistance

Duct installation or aerial installation

Optical Characteristics:

G.652.D

G.655

50/125um

62.5/125um

Attenuation

@850nm

-

-

≤3.0 dB/km

≤3.0 dB/km

@1300nm

-

-

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

-

-

@1550nm

≤0.22 dB/km

≤0.23 dB/km

-

-

Bandwidth

@850nm

-

-

≥500 MHz · km

≥200 MHz · km

@1300nm

-

-

≥1000 MHz · km

≥600 MHz · km

Polarization
mode
dispersion

lndividual fibre

≤0.20 ps/√km

≤0.20 ps/√km

-

-

Design link value
(M=20,Q=0.01%)

≤0.1 ps/√km

≤0.1 ps/√km

-

-

Technical Data:

Item

Contents

Value

Fiber Count

24

48

72

96

144

Loose Tube

No. of tubes*fibres per tube

2x12

4x12

6x12

8x12

12x12

Outer diameter (mm)

2.2

Central strength member

Material

GFPR

Diameter (mm)

2.25

2.6

2.8

Coated CSM diameter (mm)

-

3.7

6.1

lnner Sheath

Material

HDPE

Thickness (mm)

Nominal:1.0

Outer Sheath

Material

PE

Thickness (mm)

Nominal:1.8

Cable diameter(mm)Approx.

13.0

14.6

16.8

Cable weight(kg/km)Approx.

132

152

196

Operating temperature range(℃)

-40~+70

Tensile Strength Short/ Long Term(N)

2700/900

Crush resistanoe short/long term (N/100mm)

1000/300

The colour arrangement of fibre and tube is specified in the colour identification table.

Other structure and fibre count are also available according to customer requirements.
