RG
hellosignal
7101212
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Availability: | |
---|---|
Specification
RG178 FEP 50 Ohm coaxial Cable NO.7101212 | ||||
Construction Parameters: | ||||
Inner Conductor | 7×0.102mm Silver Plated Copper Clad Steel | |||
Dielectric | 0.88mm FEP | |||
Shield 1 | Nom. 1.30mm Silver Plated Copper Clad Steel | |||
Jacket | 1.83mm FEP | |||
Jacket Thickness | ||||
Application | ||||
Electrical Characteristics: | ||||
Capacitance | 96.45 pF/m | |||
Impedance | 50 Ω | |||
Velocity of Propagation | 0.7 | |||
Max Operating Voltage | 1000 VMS | |||
Max Operating Frequency | 3000 MHz | |||
Bending Radius | 10 mm | |||
Mechanical and Envrionmental Properties | ||||
Cable bend radius | ||||
Operating Temp Range | -55 ℃ to 200℃ | |||
Cable diamensions | 1.83mm | |||

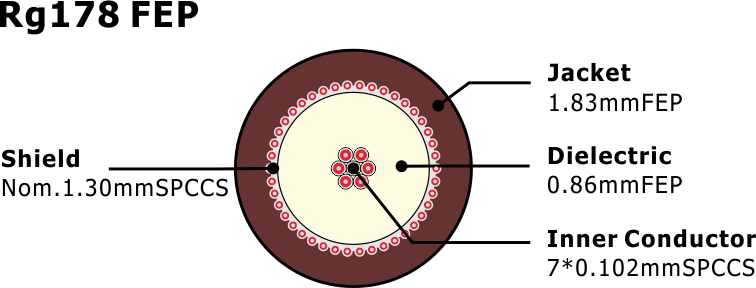

Cross Section | ||||
Attenuation(20℃): | ||||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||
100 | 45.30 | |||
400 | 91.20 | |||
1000 | 146.00 | |||
3000 | 265.00 | |||
Order Informations: | ||||
Marking | HELLOSIGNAL RG178 FEP | |||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNAL® OR OEM | |||
