19*0.18mmTC+2.95mmSPE+112×0.12mmTC+4.95mmPVC
hellosignal
7101204
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
RG 58（NO.7101204） | ||
Construction Parameters: | ||
Inner Conductor | 19/0.18±0.01mm Tinned Copper | |
Dielectric | 2.95 ±0.05mm SPE | |
Shield 1 | 16×7×0.12mm Tinned Copper | |
Density of braiding: 94.2% ± 3% | ||
Jacket | 4.95±0.10mm PVC Black | |
Standard | MIL-C-17 | |
Electrical Characteristics: | ||
Capacitance | 101±5 pF/m |
|
Impedance | 50 ±2 Ω | |
Velocity of Propagation | 66% | |
Max Operating Voltage | 1900 VMS | |
Max Operating Frequency | 1000 MHz | |
Mechanical and Envrionmental Properties： | ||
Cable bend radius | 10 mm | |
Operating Temp Range | -40 ℃ to 80℃ | |
Installation Temp Range | -5 ℃ to 20℃ | |

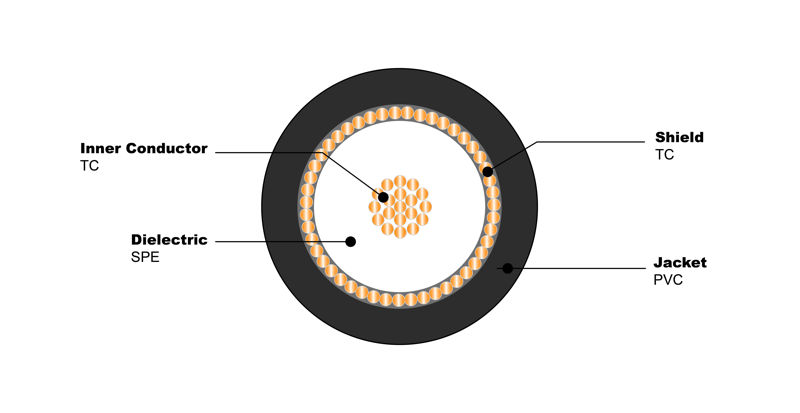

Cross Section： | ||
 | ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation (dB/100m) | |
100 | 15.10 | |
400 | 30.80 | |
1000 | 50.20 | |
Order Informations: | ||
Marking | HELLOSIGNAL RG58 | |
Package | 100M,300M,500M | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNALTM OR OEM | |
