NO.7101216 RG223

  • 0.90mmSPC+2.95mmSPE+112×0.12mm SPC+112×0.12mm SPC+5.3mmPVC

  • hellosignal

  • 7101216

  • Coaxial Cable

  • 50 ohm

  • UL, ETL, CE,CPR, RoHS

  • 100m, 305m,500m,1000m,500ft,1000ft

  • roll, wooden spool, carton, pallet

  • 10KM

  • Normally 25 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

RG 223NO.7101216

Construction Parameters:

Inner Conductor

1/0.90±0.01mm Silver Plated Copper

Dielectric

2.95 ±0.05mm SPE

Shield 1

16×7×0.12mm Silver Plated Copper

Density of braiding: 95% ± 3%

Shield 2

16×7×0.12mm Silver Plated Copper

Density of braiding: 94.2% ± 3%

Jacket

5.30±0.10mm PVC Black

Standard

MIL-C-17


Electrical Characteristics:

Capacitance

101±5 pF/m

RG 223(NO.7101216)

Impedance

50 ±2 Ω

Velocity of Propagation

66%

Max Operating Voltage

1900 VMS

Max Operating Frequency

12400 MHz



Mechanical and Envrionmental Properties:

Cable bend radius

25 mm

Operating Temp Range

-40 ℃ to 80℃

Installation Temp Range

-5 ℃ to 20℃

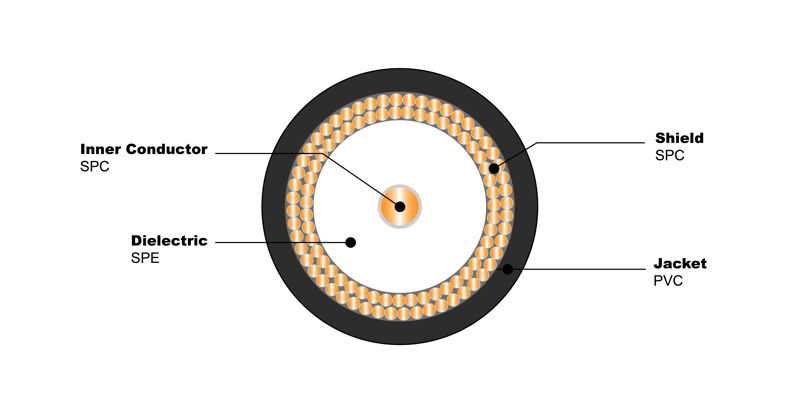

Cross Section:

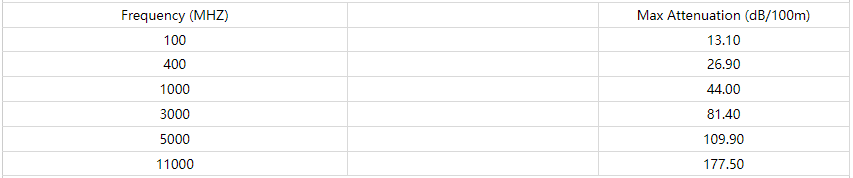

Attenuation(20℃):

Frequency (MHZ)


Max Attenuation (dB/100m)

100


13.10

400


26.90

1000


44.00

3000


81.40

5000


109.90

11000


177.50








Order Informations:

Marking

HELLOSIGNAL RG223
50 Ohm  COAXIAL CABLE 7101216×××M/FT

Package

100M,300M,500M

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNALTM OR OEM
