7*0.17mmCCS+1.52mmSPE+64×0.10mmTC+2.79mmPVC
hellosignal
7101210
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

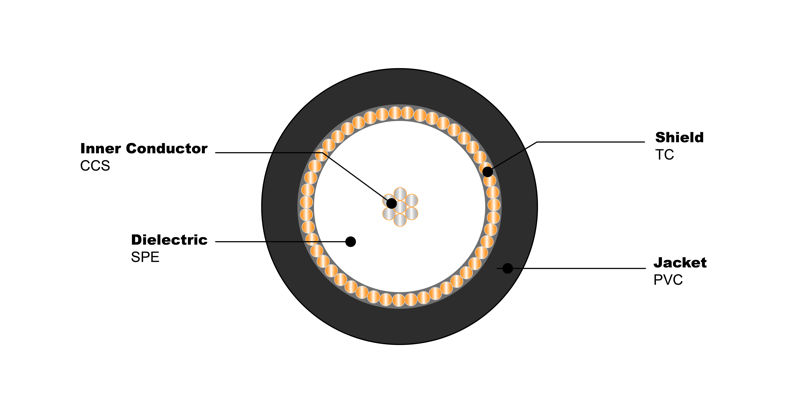

Inner Conductor: 7/0.16 ± 0.01 mm Copper Clad Steel
Dielectric: 1.52 ± 0.05 mm SPE (Solid Polyethylene)
Shield 1: 16 × 4 × 0.10 mm Tinned Copper
Density of Braiding: 85.6% ± 3%
Jacket: 2.79 ± 0.10 mm PVC Black
Standard: MIL-C-17
Capacitance: 101 ± 5 pF/m (RG 174 NO.7101210)
Impedance: 50 ± 2 Ω
Velocity of Propagation: 66%
Max Operating Voltage: 1500 VMS
Max Operating Frequency: 1000 MHz
Cable Bend Radius: 10 mm
Operating Temperature Range: -40 ℃ to 80 ℃
Installation Temperature Range: -5 ℃ to 20 ℃
Marking: HELLOSIGNAL RG174 50 Ohm COAXIAL CABLE 7101210 ×××M/FT (or per customer's request)
Package: 100M, 300M, 500M (or per customer's request)
Delivery Time: Normally 25 days after receiving the deposit
Brand: HELLOSIGNAL™ or OEM
Inner Conductor: 7/0.16 ± 0.01 mm Copper Clad Steel
Dielectric: 1.52 ± 0.05 mm SPE (Solid Polyethylene)
Shield 1: 16 × 4 × 0.10 mm Tinned Copper
Density of Braiding: 85.6% ± 3%
Jacket: 2.79 ± 0.10 mm PVC Black
Standard: MIL-C-17
Capacitance: 101 ± 5 pF/m (RG 174 NO.7101210)
Impedance: 50 ± 2 Ω
Velocity of Propagation: 66%
Max Operating Voltage: 1500 VMS
Max Operating Frequency: 1000 MHz
Cable Bend Radius: 10 mm
Operating Temperature Range: -40 ℃ to 80 ℃
Installation Temperature Range: -5 ℃ to 20 ℃
Marking: HELLOSIGNAL RG174 50 Ohm COAXIAL CABLE 7101210 ×××M/FT (or per customer's request)
Package: 100M, 300M, 500M (or per customer's request)
Delivery Time: Normally 25 days after receiving the deposit
Brand: HELLOSIGNAL™ or OEM
