7*0.752mmBC+7.24mmSPE+192×0.18mmBC+10.3mmPVC
hellosignal
7101214
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

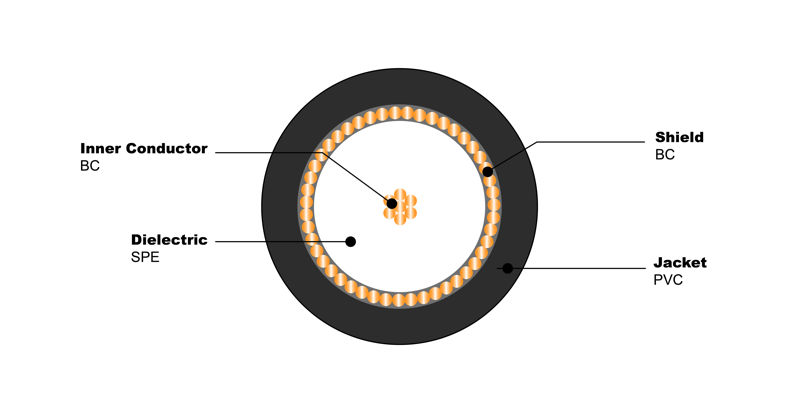

Inner Conductor: 7/0.752±0.01mm Bare Copper
Dielectric: 7.24 ±0.05mm SPE (Solid Polyethylene)
Shield 1: 24×8×0.18mm Copper
Density of Braiding: 95.3% ± 3%
Jacket: 10.3±0.10mm PVC Black
Standard: MIL-C-17
Capacitance: 101±5 pF/m
Impedance: 50 ±2 Ω
Velocity of Propagation: 66%
Max Operating Voltage: 5000 VMS
Max Operating Frequency: 1000 MHz
Cable Bend Radius: 40 mm
Operating Temperature Range: -40℃ to 80℃
Installation Temperature Range: -5℃ to 20℃
Marking: HELLOSIGNAL RG213 50 Ohm COAXIAL CABLE 7101214 ×××M/FT
Package Options: 100M, 300M, 500M
Delivery Time: Normally 25 days after receiving the deposit
Brand: HELLOSIGNAL™ or OEM
Inner Conductor: 7/0.752±0.01mm Bare Copper
Dielectric: 7.24 ±0.05mm SPE (Solid Polyethylene)
Shield 1: 24×8×0.18mm Copper
Density of Braiding: 95.3% ± 3%
Jacket: 10.3±0.10mm PVC Black
Standard: MIL-C-17
Capacitance: 101±5 pF/m
Impedance: 50 ±2 Ω
Velocity of Propagation: 66%
Max Operating Voltage: 5000 VMS
Max Operating Frequency: 1000 MHz
Cable Bend Radius: 40 mm
Operating Temperature Range: -40℃ to 80℃
Installation Temperature Range: -5℃ to 20℃
Marking: HELLOSIGNAL RG213 50 Ohm COAXIAL CABLE 7101214 ×××M/FT
Package Options: 100M, 300M, 500M
Delivery Time: Normally 25 days after receiving the deposit
Brand: HELLOSIGNAL™ or OEM
