FTTH Solution for Different Environments & Regions

FTTH deployment solutions / FTTH connectivity solutions differ in various regions across the world. Climate, urban density, infrastructure restrictions, as well as the environment for installation all dictate the right fiber optic drop cable and accessories to use. Using the wrong cable configuration can lead to Premature degradation, signal failure, causing excessive sag on aerial cables, or safety risks in indoor installations.

As a leading global provider of fiber optic cables and FTTH solutions, ZION Communication offers a comprehensive “case-by-case” FTTH setup solution for urban buildings, countryside houses, long-span rural areas, inhospitable outdoor climates, high-density MDUs, and cold regions.

In this guide, we provide insight into various FTTH cables, cable configurations, and accessories for different environments.

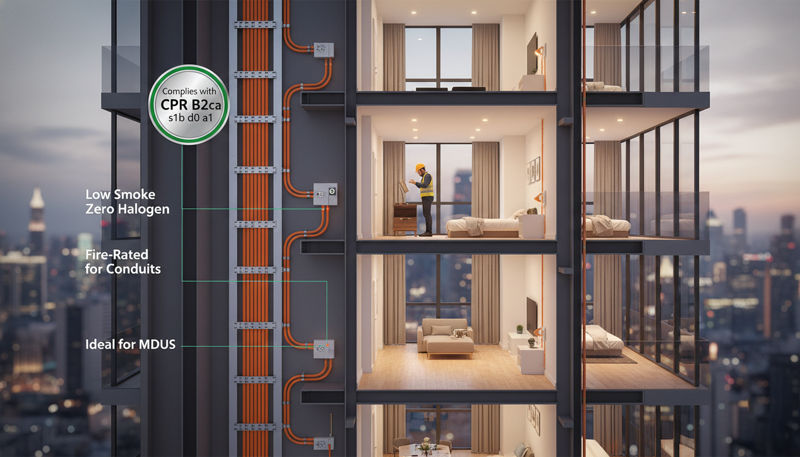

■ FTTH for Indoor Dense Urban Buildings

High-rise buildings • Underground conduits infrastructures • Fire-hazard surroundings

Indoor FTTH installations will require small-sized, flexible, and non-flammable drop cables.

Recommended Cables

• GJYFJHH 4.8mm – Flame-retardant LSZH sheath wall cable for high-speed lifts

• GJYFJH 3.0mm – Round indoor drop cable

• GYFJU 2.0–4.0mm (Universal) – Flexible unitube cable, suitable for surface-mounted horizontal cabling and indoor/outdoor transition points.

Why These Cables

• Fire Safety: LSZH (Low Smoke Zero Halogen) materials ensure compliance with indoor fire regulations.

• Vertical Optimization: Round cable structures are easier to route through vertical risers and shafts without kinking.

• Versatility: Ideal for condominiums, shopping malls, and office building drops.

Recommended Accessories

• FTTH Wall Outlet 86 Type

• SC/APC field fast connectors

• Drop cable clamps (indoor)

• Mini Splice Tray (6F/12F)

• In-building microducts system (7-10mm)

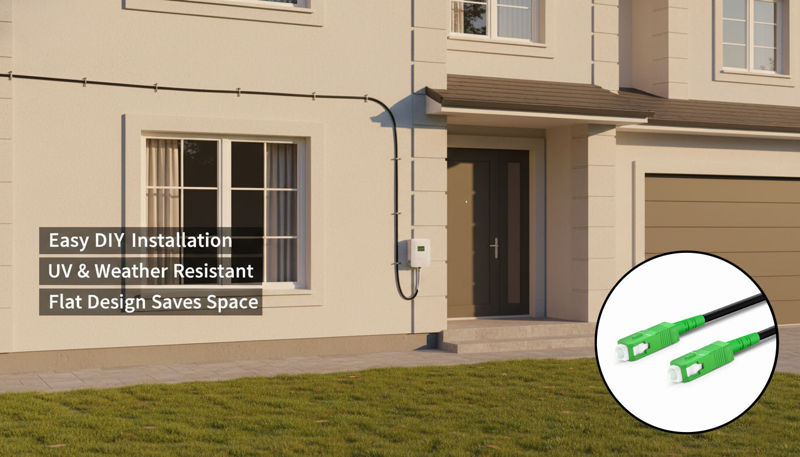

■ FTTH for Suburban Residential Houses

Villas • Small homes • Apartments

Suburban FTTH homes usually have limited outside installations and extensive indoor sections. Lightweight and flat drop cables are ideal for these setups.

Recommended Cables

• GJXFH (FRP Strength) – Corrosion-free, ideal for coastal applications for tough weather conditions

• GJXH (Steel Strength) – Greater resistance to physical impact on outside walls

• GJXH Small (1.6×2.0mm) – For indoor wall installations

Why These Cables

• Flat shape makes them easier to install on outside walls

• High wind resistance and outside-to-inside configurations

• Lightweight and easy to handle during installation

Recommended Accessories

• Cable management brackets

• Nail-type drops clips

• FTTH small CPE box

• Mini Drop Splice closure (1-in/1-out)

• Corrugated tube

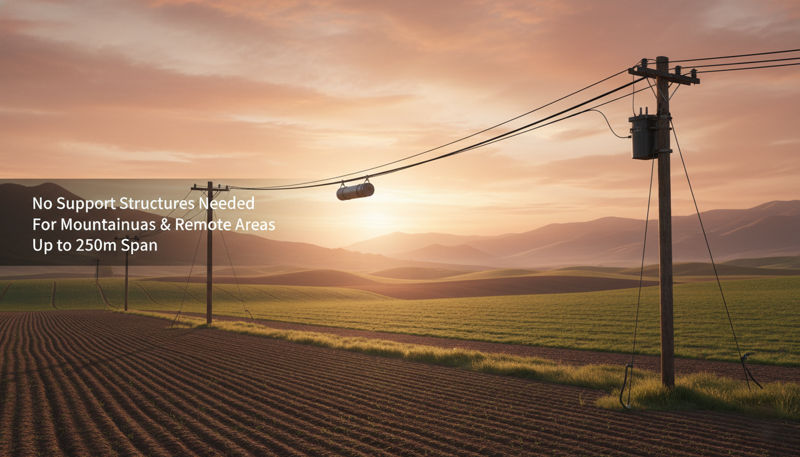

■ FTTH for Long-Span Aerial Rural Deployment

Rural farms • Developing regions • Mountainous terrains

For FTTH cables across long-span poles on the countryside, the self-supporting aerial cable is required.

Recommended Cables

• GJYXCH (Steel messenger) – The strongest of all FTTH aerial cables used for long spans

• GJYXFCH (FRP messenger) – A non-metallic, corrosion-resistant alternative to steel. Perfect for areas near power lines.

• GYXY-8S figure-8 – Stronger than other self-supporting FTTH configuration

• ASU (FRP Uni-tube) – Great for long-span aerial cables and inhospitable weather elements

• GYFXBY – Self-supporting, flat, and aerodynamically built

Why These Cables

• Self-Supporting: Integrated messenger wires eliminate the need for additional support strands

• Long Reach: Capable of handling pole spans up to 250m

• Cost-Efficiency: Enables coverage of large rural areas at a lower deployment cost

Recommended Accessories

• Suspension clamp (S-type and W-type)

• FTTH tension clamps (PA-1000, PA-1500)

• Stainless bands and buckles (SS304)

• Pole brackets and hooks

• In-line splice closure (IP68)

• Storage brackets

■ FTTH for Harsh Outdoor Climate & Extreme Weather

Desert heat • Humid climate • Heavy moisture environments

Outdoor FTTH installations require drop cables with high resiliency to climate conditions.

Recommended Cables

• GYGXY (Glass Yarn + HDPE) – UV-protective, Anti-rodent, Moisture-resistant, and chemical-resistant

• GYXY-8S – Great for outside aerial cables in windy terrains

• ASU (Mini-ADSS) – Protects against desert heat and extreme hot weather conditions

Why These Cables

• HDPE provides superior outside climate protection

• Non-metallic design resists corrosion

• For aerial or duct FTTH configurations

Recommended Accessories

• Anti-UV cable ties

• Anti-rodent protection

• IP68 protective closures

• Aerial clips (heavy-duty)
