GYXY-8S Figure-8 Self-supporting Aramid Yarns Tubes Drop Cable

GYXY-8S FTTH Drop Fiber Optic Cables Figure-8 Self-supporting Aramid Yarns Tubes 4.6*8.8HDPE

■ Introduction:

The typical GYXY-8S Self-supporting Drop Optical cable
Includes Central Tubes with optical fibre(s), Aramid yarns as the strength members, Steel wires as the Self-supporting,
a HDPE Sheath is extruded outside.

■ Features:

Figure-8 Self-supporting
Aerial installation
Suitable for FTTH application as drop cable

■ Product Series:

·  GJXFH

· Strength Member: FRP

· Sheath Material: LSZH

· Dimensions: 2.0 x 3.0 mm

·  GJXH

· Strength Member: Steel Wire

· Sheath Material: LSZH

· Dimensions: 2.0 x 3.0 mm

·  GJXH-Small Diameter

· Strength Member: Steel Wire

· Sheath Material: LSZH

· Dimensions: 1.6 x 2.0 mm

·  GJX(F)DH

· Type: Ribbon Fibers

· Sheath Material: LSZH

· Dimensions: 2.0 x 4.0 mm

·  GJYX(F)CH

· Strength Member: Self-Supporting Wires

· Sheath Material: LSZH

· Dimensions: 2.0 x 5.2 mm

·  GJYX(F)CH-Small

· Strength Member: Self-Supporting Wires

· Sheath Material: LSZH

· Dimensions: 1.7 x 3.8 mm

·  GJYXFDCH (GJYXDCH)

· Strength Member: Self-Supporting Wires + Ribbon Fibers

· Sheath Material: LSZH

· Dimensions: 1.7 x 3.8 mm

·  GYFJU

· Strength Member: Aramid Yarn

· Sheath Material: LSZH

· Dimensions: Round Sheath

·  GYGXY

· Strength Member: Central Tube Glass Yarns Armor

· Sheath Material: HDPE

· Dimensions: Round Sheath

·  FDC

· Type: Flat Drop Cable

· Core: Central Tube

· Sheath Material: LSZH

· Dimensions: 3.0 x 6.0 mm

·  ASU

· Strength Member: Self-Supporting FRP Strength

· Sheath Material: HDPE

· Dimensions: 7.0/8.0 mm

·  GYXY-8S

· Type: Figure-8 Self-supporting

· Strength Member: Aramid Yarns + Tubes

· Sheath Material: HDPE

· Dimensions: 4.6 x 8.8 mm

·  GYFXBY

· Type: Flat Drop Cable

· Core: Central Tube

· Sheath Material: LSZH

· Dimensions: 4.6 x 8.1 mm

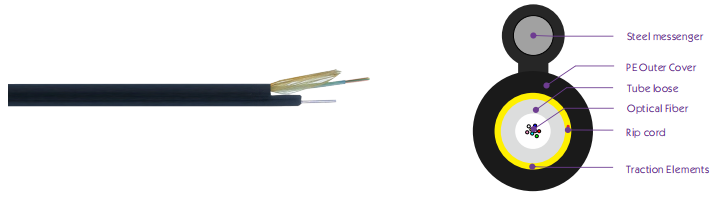

■ Cross Section:

■ Technical Characteristics:

·  Type:

2-12F

·  Diameter:

2.8 x 4.6 x 8.8 mm (2.5 Tube)

·  Weight:

41 kg/km

·  Tensile Strength (Long/Short term):

500 N / 1250 N

·  Crush Resistance (Long/Short term):

300 N / 600 N per 100 mm

·  Bending Radius (Static/Dynamic):

150 mm (Static)

75 mm (Dynamic)

■ Environmental Characteristics:

Transport/storage temperature: -20℃~70℃

■ Delivery Length:

 Standard length:1000m; Other length availabe
