GJYXCH-FTTH Drop Cable 2.0×5.2mm

GJYXCH-FTTH Drop Cable 2.0×5.2mm

General Information:

· Cable Type: GJYXCH (Optical Fiber Cable with various core counts)

o Fiber Type: G.657.A1 (Single-mode fiber)

o Fiber Colors:

§ GJYXCH-1: Blue (1 Core)

§ GJYXCH-2: Blue, Orange (2 Cores)

§ GJYXCH-4: Blue, Orange, Green, Brown (4 Cores)

Physical Specifications:

· Load-bearing Strength Member:

o Material: Phosphating Steel Wire

o Size: 1 wire, 1.0 mm

· Cable Strength Member:

o Material: Phosphating Steel Wire

o Size: 2 wires, 0.45 mm

· Outer Sheath Material: LSZH (Low Smoke Zero Halogen)

· Cable Diameter: (2.0 ± 0.1) x (5.1 ± 0.1) mm

Mechanical Properties:

· Minimum Bending Radius:

o Operation: 30D (D = Cable Diameter)

o Using: 15D

· Available Tensile Strength:

o Long-term: 300N

o Short-term: 600N

· Available Crush Strength:

o Long-term: 1000 N/100mm

o Short-term: 2000 N/100mm

Optical Characteristics (After Cable Finished):

· Attenuation:

o 1310 nm: ≤ 0.36 dB/km

o 1550 nm: ≤ 0.22 dB/km

· Cut-off Wavelength: (not provided, typically ≤ 1260 nm for G.657.A1)

Environmental Characteristics:

· Storage Temperature: -40°C to +70°C

· Operating Temperature: -30°C to +60°C

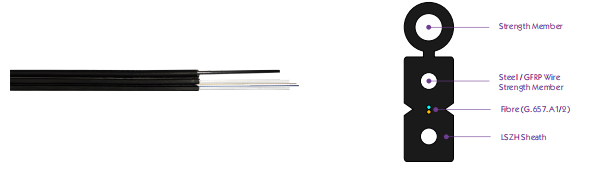

■ Cross Section:

■ Cable Specification:

·  ZION: Manufacturer’s brand (can be customized to the client's brand if needed).

·  2024: Year of manufacture.

·  FTTH: Type of cable (Fiber to the Home).

·  XX (G.657A): Number of cores (e.g., 1 core, 2 cores, etc.) with the fiber type specified as G.657A (a single-mode optical fiber standard).

·  XXXXm: Length of the cable in meters.

*The marking is printed every 1 meter;

● The color of marking is white, but if the remarking is necessary, the yellow color marking shall be printed newly on a different position.
● An occasional unclear of length marking is permitted if both of the neighboring markings are clear;
● The both cable ends are sealed with heat shrinkable end caps to prevent water ingress.

■ Fiber Properties:

The properties of single mode optical fiber (ITU-T Rec. G.657)

Physical Characteristics:

· MFD (Mode Field Diameter) at 1310nm: 8.2 - 9.0 mm

· Cladding Diameter: 125.0 ± 0.7 mm

· Cladding Non-circularity: ≤ 1.0% (ensures the cladding is nearly circular)

· Cladding to Core Concentricity Error: ≤ 0.5 mm (ensures proper alignment between the core and cladding)

· Secondary Coating Diameter: 245.0 ± 10.0 mm

· Secondary Coating to Cladding Concentricity Error: ≤ 12.0 mm

· Fiber Curl: ≥ 4.0 m (indicates minimum allowable radius for fiber bending)

Optical Performance (Attenuation) at Various Wavelengths:

· At 1310nm: ≤ 0.34 dB/km

· At 1383nm: ≤ 0.31 dB/km

· At 1383nm (after H2 aging): Δ ≤ 0.01 dB/km (indicates minimal degradation after aging)

· At 1550nm: ≤ 0.20 dB/km

· At 1625nm: ≤ 0.23 dB/km

Discontinuity:

· Point Discontinuity at 1310nm and 1550nm: ≤ 0.02 dB (ensures minimal discontinuities at these wavelengths)

Cut-off Wavelength (λc):

· At 1310nm: 1150 ≤ λc ≤ 1330 nm (indicates the operational range for fiber cut-off)

Zero Dispersion Wavelength (λ₀):

· At 1310 - 1324 nm: 1300 - 1324 nm (range of wavelengths with minimal chromatic dispersion)

Chromatic Dispersion (D(λ)):

· At 1288-1339 nm: ≤ 3.5 ps/(nm·km)

· At 1271-1360 nm: ≤ 5.3 ps/(nm·km)

· At 1550 nm: ≤ 18 ps/(nm·km)

· At 1625 nm: ≤ 22 ps/(nm·km)

Polarization Mode Dispersion (PMD):

· Fiber PMD: ≤ 0.2 ps/km¹/²

· Link PMD: ≤ 0.1 ps/km¹/² (for longer transmission distances)

● Attenuation vs. Wavelength maximum increase of the att. in 1285-1330nm reference the att. at 1310nm 0.03dB/km; maximum increase of the att. in 1525-1575nm reference the att. at 1550nm 0.02dB/km.
● Attenuation from out end- attenuation from inner end 0.05dB/km ; max segment loss-avg loss0.03dB/km.(OTDR)

■ Mechanical Characteristics:

Proof Stress Level:

· Strain: ≥ 2.0% (indicates the strain at which the proof stress is defined)

· Proof Tension Stress: ≥ 19.76 N (the force at which the fiber undergoes permanent deformation)

Allowable Bending Radii:

· 15 mm (the minimum radius the fiber can be bent without damaging it)

Additional Attenuation with Bending:

· For 10 turns with D=30mm:

o At 1550 nm: α ≤ 0.25 dB

o At 1625 nm: α ≤ 1.0 dB

· For 1 turn with D=20mm:

o At 1550 nm: α ≤ 0.75 dB

o At 1625 nm: α ≤ 1.5 dB

o These values represent the additional signal loss (attenuation) induced when the fiber is bent. A smaller bending radius or more turns results in higher attenuation.

Coating Strip Force:

· Peak Value (F): 1 ≤ F ≤ 8.9 N (force required to strip the coating)

· Average Value (F): 1 ≤ F ≤ 5 N (average stripping force required)

Dynamic Fatigue Test (Nd):

· Nd ≥ 20 (a measure of the fiber's resistance to dynamic fatigue, indicating the number of cycles the fiber can withstand under stress before breaking)

Tensile Test, Breaking Strength (sf(0.5)):

· sf ≥ 3.8 GPa (the breaking strength of the fiber, measured in gigapascals, indicating the fiber's ability to withstand tension)

■ Packing and Marking:

Packing

● Each single length of cable shall be reeled on Plastic Drum.

● Drum length: Standard drum length is 3000m±2% or design as per client inquiry ;



Drum Marking (can according to the requirement in the technical specification)

-Manufacturer name;

-Manufacturing year and month;

-Roll-direction arrow;

-Cable outer end position indicating arrow;

-The word “OPTICAL FIBER CABLE”;

-Cable type and size;

-Drum number;

-Drum length;

-Gross / net weight;

-Origin, The word “MADE IN CHINA”;

-Caution plate indicating the correct method for loading, unloading and convey the cable;

-Other customer information such as contract no., project no., and delivery destination. (if needed)



Cable identification documents

-Product qualified certificate;

-Test report.
