ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable

ASU FTTH Drop Fiber Optic Cables

Self-Supporting FRP Strength Tube 7.0/8.0 HDPE

■ Introduction:

The typical ASU Self-supporting Drop Optical cable
Includes Central Tubes with optical fibre(s),Two Glass FRP as the strength members,
a LSZH Sheath is extruded outside.

■ Features:

Lighting resistance
Non-metallic structure
Duct installation and aerial installation together with tension strandwire
Suitable for FTTH application as drop cable

■ Product Series:

·  GJXFH

· Strength Member: FRP

· Sheath Material: LSZH

· Dimensions: 2.0 x 3.0 mm

·  GJXH

· Strength Member: Steel Wire

· Sheath Material: LSZH

· Dimensions: 2.0 x 3.0 mm

·  GJXH-Small Diameter

· Strength Member: Steel Wire

· Sheath Material: LSZH

· Dimensions: 1.6 x 2.0 mm

·  GJX(F)DH

· Type: Ribbon Fibers

· Sheath Material: LSZH

· Dimensions: 2.0 x 4.0 mm

·  GJYX(F)CH

· Strength Member: Self-Supporting Wires

· Sheath Material: LSZH

· Dimensions: 2.0 x 5.2 mm

·  GJYX(F)CH-Small

· Strength Member: Self-Supporting Wires

· Sheath Material: LSZH

· Dimensions: 1.7 x 3.8 mm

·  GJYXFDCH (GJYXDCH)

· Strength Member: Self-Supporting Wires + Ribbon Fibers

· Sheath Material: LSZH

· Dimensions: 1.7 x 3.8 mm

·  GYFJU

· Strength Member: Aramid Yarn

· Sheath Material: LSZH

· Dimensions: Round Sheath

·  GYGXY

· Strength Member: Central Tube Glass Yarns Armor

· Sheath Material: HDPE

· Dimensions: Round Sheath

·  FDC

· Type: Flat Drop Cable

· Core: Central Tube

· Sheath Material: LSZH

· Dimensions: 3.0 x 6.0 mm

·  ASU

· Strength Member: Self-Supporting FRP Strength

· Sheath Material: HDPE

· Dimensions: 7.0/8.0 mm

·  GYXY-8S

· Type: Figure-8 Self-supporting

· Strength Member: Aramid Yarns + Tubes

· Sheath Material: HDPE

· Dimensions: 4.6 x 8.8 mm

·  GYFXBY

· Type: Flat Drop Cable

· Core: Central Tube

· Sheath Material: LSZH

· Dimensions: 4.6 x 8.1 mm

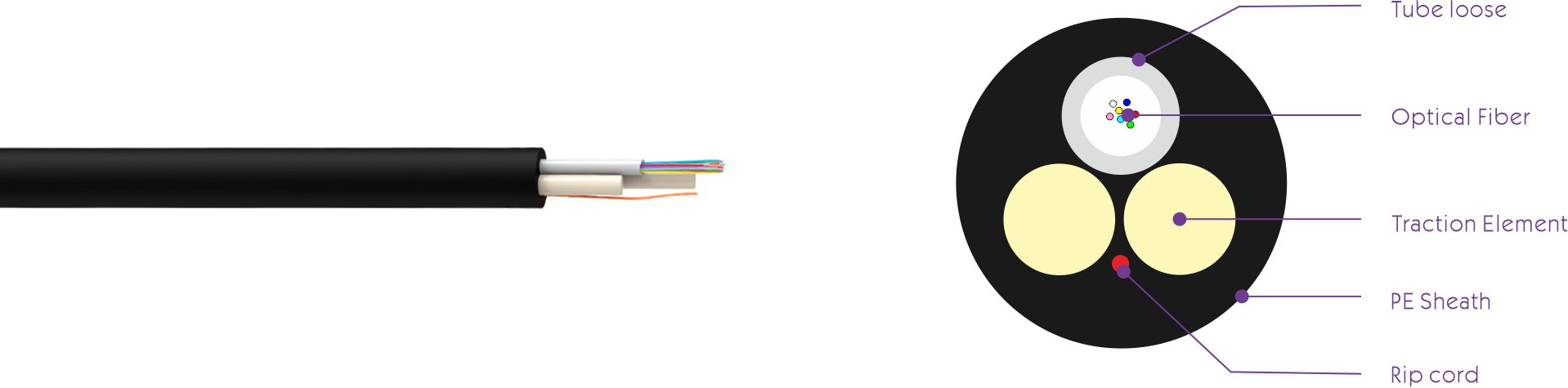

■ Cross Section:

■ Technical Characteristics:

ASU-80:

· Diameter: 6.8 mm (with 2.0 mm tube)

· Weight: 45 kg/km

· Tensile Strength:

o Long-term: 300 N

o Short-term: 600 N

· Crush Strength:

o Long-term: 300 N/100mm

o Short-term: 600 N/100mm

· Bending Radius:

o Static: 10D (D = Cable Diameter)

o Dynamic: 20D

ASU-120:

· Diameter: 7.8 mm (with 2.5 mm tube)

· Weight: 60 kg/km

· Tensile Strength:

o Long-term: 300 N

o Short-term: 600 N

· Crush Strength:

o Long-term: 300 N/100mm

o Short-term: 600 N/100mm

· Bending Radius:

o Static: 10D (D = Cable Diameter)

o Dynamic: 20D

■ Environmental Characteristics:

Transport/storage temperature: -20℃~70℃

■ Delivery Length:

 Standard length:1000m;Other length availabe
