GYFTY83(FS) Anti-Rodent Flat FRP Tape Stranded Loose tube Fiber Optic Cable

GYFTY83(FS) Anti-Rodent Flat FRP Tape Stranded Loose tube Fiber Optic Cable

■ Introduction:

ZION provides optical cables that are resistant to biological hazards caused by rodents,termites birds,etc. after installation.Optical cables are often damaged by rodents.Termites not only bite but also release formic acid to the cables.We design methods include physical(including metallic and glass fiber armor and nylon sheath) and chemical methods(Spicy additives ) against biological hazards

GYFTY83(FS) is designed with physical and chemical anti-rodent methods. Single-mode/multimode fibers are housed in loose tubes that are made of high-modulus plastic. The tubes are stranded around a central strength member to form a cable core. The core is filled with cable filling compound. Then an inner PE sheath is extruded and armored with flat FRP.Finally,an anti-rodent PE middle sheath and a PE outer sheath are extruded.

■ Features:

Accurate process control ensures good mechanical and temperature performances

The material of loose tubes with good hydrolysis resistance and relatively high strength

Tube filling compound provides key protection for fibres

Combination of physical and chemical anti-rodent methods

Flat FRP armor provides the physical anti-rodent performance

Anti-rodent sheath provides the chemical anti-rodent performance,which effectively delays the diffusion of anti-rodent additives to protect the working environment and construction safety

All-dielectric design, applicable to lightning-prone areas

Applicable to aerial and duct installations with anti-rodent and anti-lightning requirements

■ Main Methods:

Physical Methods

• Metallic Armors:

• Stainless Steel Tape: Protects from rodents and birds.

• Steel Wires: Protects from external damage.

• Non-Metallic Armors:

• FRP (Fiber Reinforced Polymer): Protection against rodents and birds.

• Glass Yarn: Protection from rodents.

• Nylon Sheath: Protects from termites.

• Nylon Outer Sheath: Additional protection from termites.

Chemical Methods

• Chemical Additives: Protects against rodents and termites.

• Spicy Additives: Used for rodent and termite protection.

■ Product Series:

Uni-Tube Cables:

· GYGXZY04: Glass fiber tape + Nylon sheath for rodent, termite, and lightning protection.

· GYXTY53: Stainless steel tape + wire for rodent and bird protection.

· GYXTS: Stainless steel tape + wire for rodent and bird protection.

· GYXTY: Stainless steel wire for rodent and bird protection.

· GYFXTY: FRP Armor for rodent, bird, and lightning protection.

Stranded Loose Tube Cables:

· GYFTA53: Aluminum tape + steel tape for rodent protection.

· GYFTA54: Steel tape + nylon sheath for rodent and termite protection.

· GYFTY83(FS): Flat FRP tape for rodent protection.

· GYFTY73: FRP tape armor for rodent, bird, and lightning protection.

· GYFTS: Stainless steel tape for rodent and bird protection.

Special Cables:

· GJFJKH: Stainless Steel Flexible Hose for indoor protection against rodents.

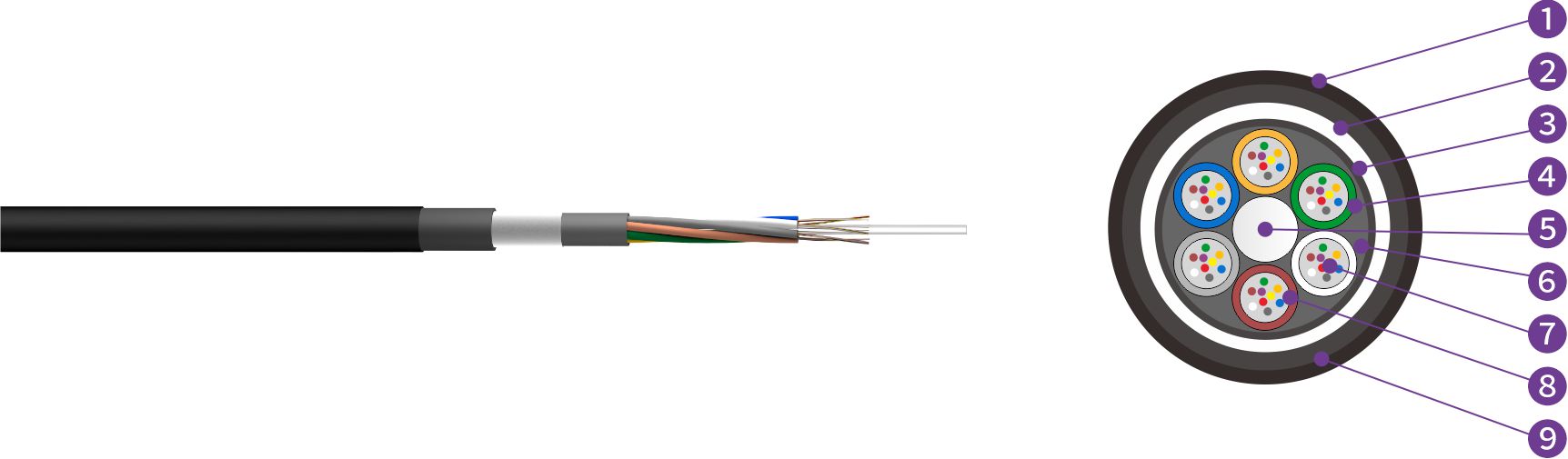

■ Cross Section:

1. PE Outer Sheath     2. Flat FRP     3. PE Inner Sheath     4. Loose Tube    5. Strength Member

6. Cable Filling Compound     7. Fibre     8. Tube Filling Compound     9. Anti-rodent Middle Sheath

■ Technical Characteristics:

Type: GYFTY83 -02-72Xn

Units: 6

Diameter(mm): 14.0±0.1

Weight(kg/km): 190

Tension(N)Long/short: 1500/4500

Crush Resistance Long/short (N/100mm): 1000/3000

Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

■ Environmental Characteristics:

Transport/storage temperature: -40℃~70℃



■ Delivery Length:

Standard length: 2000m; Other lengths available
