GYXTS Anti-Rodent Anti-Birds Steel Tape Uni-tube Fiber Optic Cable

GYXTS Anti-Rodent Anti-Birds Steel Tape Uni-tube Fiber Optic Cable

■ Introduction:

ZION provides optical cables that resistant to biological hazards caused by rodents,termites and birds,etc. after installation.Optical cables are often damaged by rodents.Termites not only bite,but also release formic acid to the cables.We design methods include physical(include metallic and glass fiber armor and nylon sheath) and chemical methods(Spicy additives ) agsinst biological hazards

■ Features:

Accurate process control ensuring good mechanical and temperature performances

The material of loose tubes with good hydrolysis resistance and high strength

Tube filling compound providing the key protection for fibres

Excellent crush resistance and flexibility

Steel wire and steel tape armors providing excellent anti-rodent performance

■ Main Methods:

Physical Methods:

  Metallic Armors:

   Stainless steel tape

   Steel wires

   Protects against rodents and birds

  Non-Metallic Armors:

   FRP (Fiber Reinforced Plastic)

   Glass yarn

   Nylon sheath and outer sheath

   Protects against rodents, birds, and termites

Chemical Methods:

   Chemical additives (spicy additives)

   Protects against rodents and termites

■ Product Series:

Uni-Tube

GYGXZY04: Glass fiber tape + Nylon sheath, protects against rodents, termites, and lightning

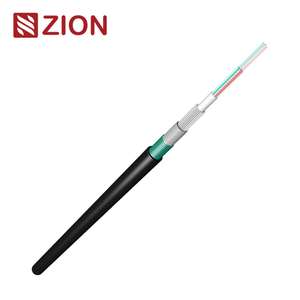

GYXTY53: Stainless steel tape + wire, protects against rodents and birds

GYXTS: Stainless steel tape + wire, protects against rodents and birds

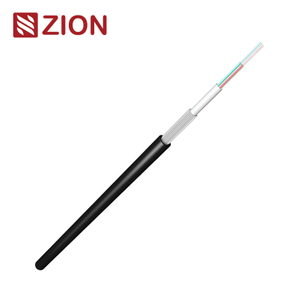

GYXTY: Stainless steel wire, protects against rodents and birds

GYFXTY: FRP Armor, protects against rodents, birds, and lightning

Stranded loose tube

GYFTA53: Aluminum tape + steel tape, protects against rodents

GYFTA54: Steel tape + nylon sheath, protects against rodents and termites

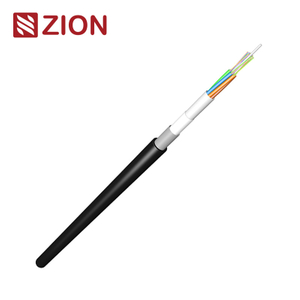

GYFTY83(FS): Flat FRP tape, protects against rodents

GYFTY73: FRP tape armor, protects against rodents, birds, and lightning

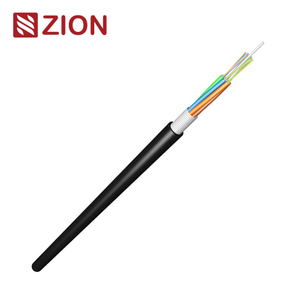

GYFTS: Stainless steel tape, protects against rodents and birds

Special

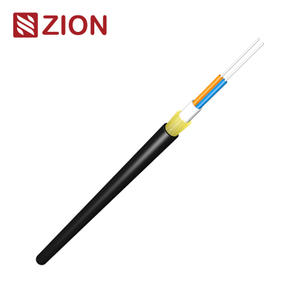

GJFJKH: Stainless steel flexible hose, used for indoor protection from rodents

■ Cross Section:

1.  Fibers   2. Tube Filling Compound   3. Loose Tube    4. Steel wire   5.  Cabling compound   6. PE Sheath

■ Technical Characteristics:

GYXTS-02-12Xn

• Diameter: 2.5 mm

• Weight: 8.8 ± 0.1 kg/km (2.0 mm Thickness)

• Tension (Long/Short): 600/1500 N

• Crush Resistance (Long/Short): 1000/3000 N/100mm

GYXTS-14-18Xn

• Diameter: 2.8 mm

• Weight: 9.2 ± 0.1 kg/km (2.0 mm Thickness)

• Tension (Long/Short): 1000/3000 N

• Crush Resistance (Long/Short): 1000/3000 N/100mm

GYXTS-20-24Xn

• Diameter: 3.2 mm

• Weight: 9.6 ± 0.1 kg/km (2.0 mm Thickness)

• Tension (Long/Short): 1000/3000 N

• Crush Resistance (Long/Short): 1000/3000 N/100mm

GYXTS-26-30Xn

• Diameter: 3.5 mm

• Weight: 9.8 ± 0.1 kg/km (2.0 mm Thickness)

• Tension (Long/Short): 1000/3000 N

• Crush Resistance (Long/Short): 1000/3000 N/100mm

GYXTS-32-36Xn

• Diameter: 3.8 mm

• Weight: 10.1 ± 0.1 kg/km (2.0 mm Thickness)

• Tension (Long/Short): 1000/3000 N

• Crush Resistance (Long/Short): 1000/3000 N/100mm

Note: The outer diameter can be adjusted to meet specific budget needs.

■ Environmental Characteristics:

Transport/storage temperature: -40℃~70℃



■ Delivery Length:

Standard length:2000m;Other length availabe
