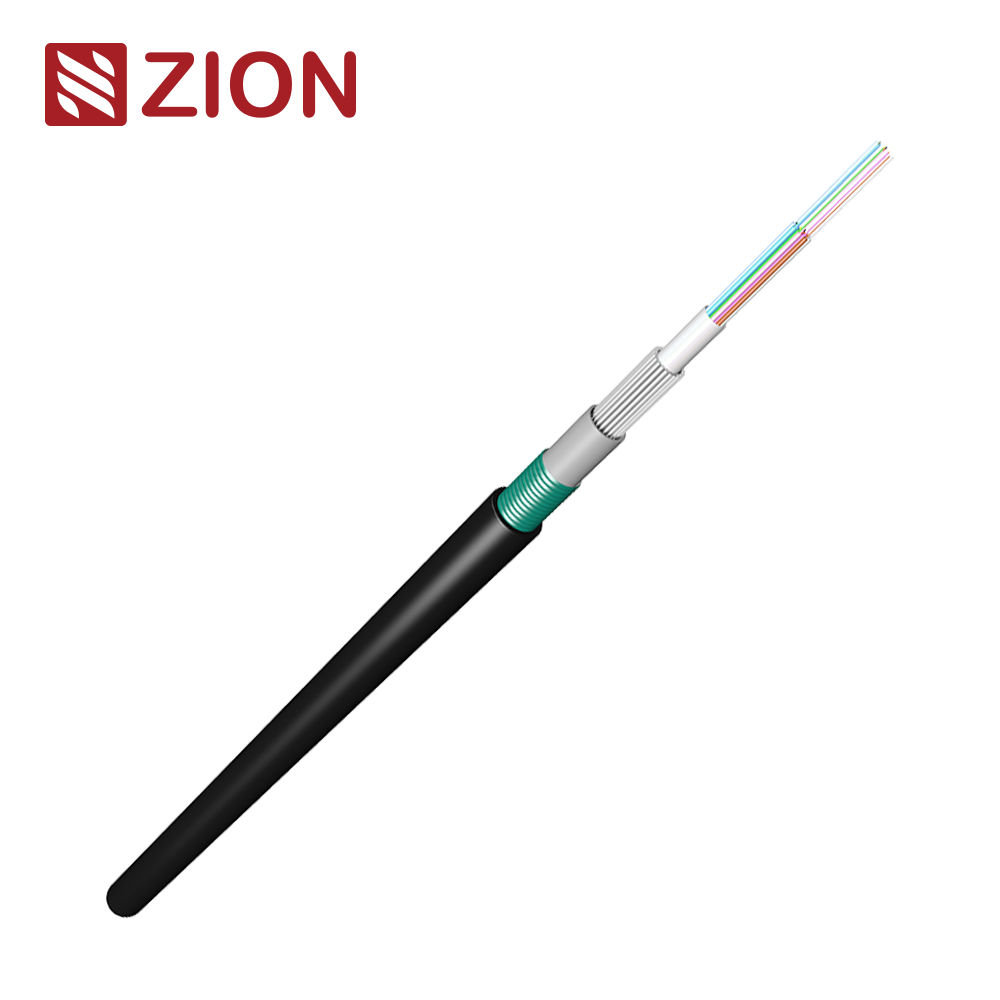

GYXTY53 Anti-Rodent Anti-Birds Steel Tape Uni-tube Double Sheath Fiber Optic Cable

GYXTY53                                                                                              Anti-Rodent Anti-Birds Steel Tape Uni-tube Double Sheath Fiber Optic Cable

Introduction:

ZION provides optical cables that resistant to biological hazards caused by rodents,termites and birds,etc. after installation.Optical cables are often damaged by rodents.Termites not only bite,but also release formic acid to the cables.We design methods include physical(include metallic and glass fiber armor and nylon sheath) and chemical methods(Spicy additives ) agsinst biological hazards

Features:

● Accurate process control ensuring good mechanical and temperature performances
● The material of loose tubes with good hydrolysis resistance and high strength
● Tube filling compound providing the key protection for fibres
● Excellent crush resistance and flexibility
● Steel wire and steel tape armors providing excellent anti-rodent performance

Main Methods:

Physical methods

Metallic armors

Stainless steel tape

Rodent and Birds

Steel wires

Non-Metallic armors

FRP

Rodent and Birds

Glass Yarn

Rodent

Nylon sheath

Nylon outer sheath

Termite

Chemical methods

Chemical additives

Spicy additives

Rodent and Termite

Product Series:

Uni-Tube

GYGXZY04

Glass fibre tape+Nylon  sheath

Rodent,Termite,Lightning

GYXTY53

Stainless steel tape+wire

Rodent,Birds

GYXTS

Stainless steel tape+wire

Rodent,Birds

GYXTY

Stainless steel wire

Rodent,Birds

GYFXTY

FRP Armor

Rodent,Birds,Lightning

Stranded loose tube

GYFTA53

Aluminum tape+steel tape

Rodent

GYFTA54

steel tape+nylon sheath

Rodent,Termite

GYFTY83(FS)

Flat FRP tape

Rodent

GYFTY73

FRP tape armor

Rodent,Birds,Lightning

GYFTS

Stainless steel tape

Rodent,Birds

Special

GJFJKH

Stainless Steel Flexible Hose

Indoor protection from Rodent

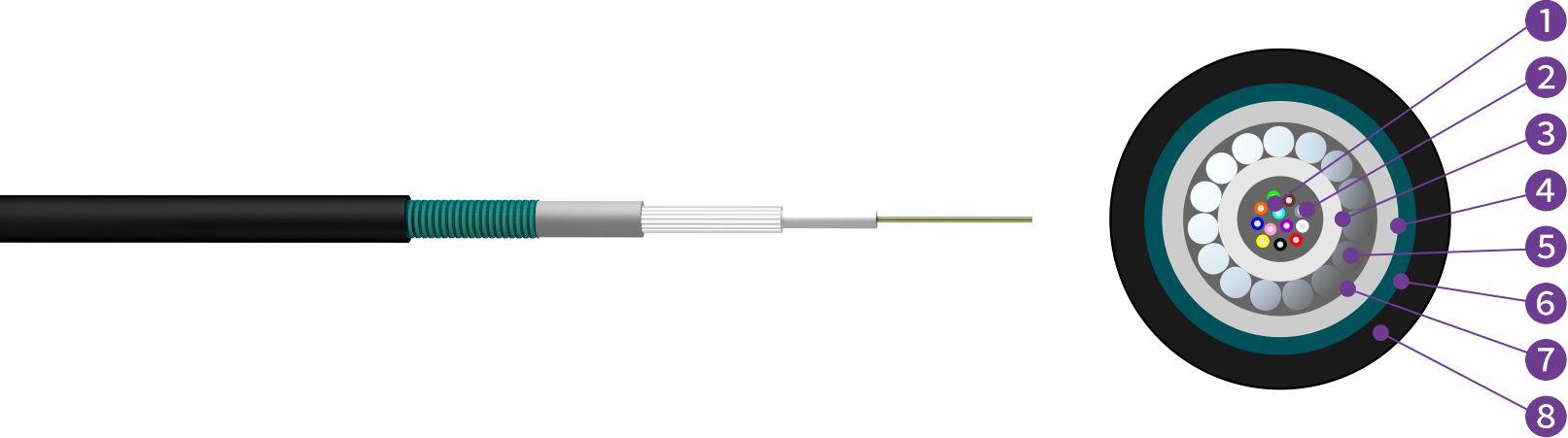

Cross Section:

1, Fibers   2, 3,Tube Filling Compound   4,PE Inner sheath  5,Steel wire   6, PSP  7, Cabling compound   8,PE Sheath

Technical Characteristics:

Type

Diameter
of Uni-tube

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

GYXTY53 -02-12Xn

2.5

10.9±0.1(2.0Thickness)

144

600/1500

1000/3000

GYXTY53 -14-18Xn

2.8

11.2±0.1(2.0Thickness)

155

1000/3000

1000/3000

GYXTY53 -20-24Xn

3.2

11.6±0.1(2.0Thickness)

167

1000/3000

1000/3000

GYXTY53 -26-30Xn

3.5

11.9±0.1(2.0Thickness)

178

1000/3000

1000/3000

GYXTY53 -32-36Xn

3.8

12.2±0.1(2.0Thickness)

186

1000/3000

1000/3000

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Environmental Characteristics:

  Transport/storage temperature: -40℃~70℃

Delivery Length:

 Standard length:2000m;Other length availabe
