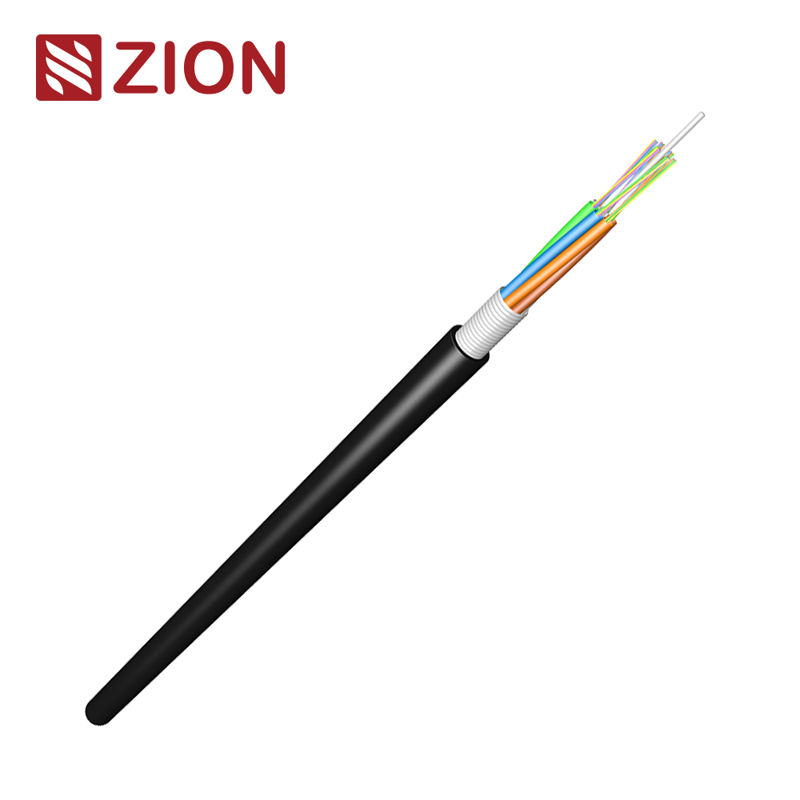

GYFTS Anti-Rodent Anti Bird Steel Tape Stranded Loose tube Fiber Optic Cable

■ Introduction:

ZION provides optical cables that resistant to biological hazards caused by rodents,termites and birds,etc. after installation.Optical cables are often damaged by rodents.Termites not only bite,but also release formic acid to the cables.We design methods include physical(include metallic and glass fiber armor and nylon sheath) and chemical methods(Spicy additives ) agsinst biological hazards

GYKTSis a kind of outdoor communication optical cable, which consists of a central metallic strength member, stranded loose tubes,a stainless steel tape armor and a PE outer sheath.Single-mode fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes are stranded around the central strength member to form a cable core. The core is filled with cable filling compound and armored with stainless steel tape. Then a PE outer sheath is extruded.

■ Features:

• Accurate process control ensuring good mechanical and temperature performances

• The material of loose tubes with good hydrolysis resistance and high strength

• Tube filling compound providing the key protection for fibres

• Excellent crush resistance

• Metallic armors providing excellent anti-rodent performance

■ Main Methods:

Physical Methods

• Metallic Armors:

• Stainless Steel Tape: Protects from rodents and birds.

• Steel Wires: Protects from external damage.

• Non-Metallic Armors:

• FRP (Fiber Reinforced Polymer): Protection against rodents and birds.

• Glass Yarn: Protection from rodents.

• Nylon Sheath: Protects from termites.

• Nylon Outer Sheath: Additional protection from termites.

Chemical Methods

• Chemical Additives: Protects against rodents and termites.

• Spicy Additives: Used for rodent and termite protection.

■ Product Series:

Uni-Tube Cables:

· GYGXZY04: Glass fiber tape + Nylon sheath for rodent, termite, and lightning protection.

· GYXTY53: Stainless steel tape + wire for rodent and bird protection.

· GYXTS: Stainless steel tape + wire for rodent and bird protection.

· GYXTY: Stainless steel wire for rodent and bird protection.

· GYFXTY: FRP Armor for rodent, bird, and lightning protection.

Stranded Loose Tube Cables:

· GYFTA53: Aluminum tape + steel tape for rodent protection.

· GYFTA54: Steel tape + nylon sheath for rodent and termite protection.

· GYFTY83(FS): Flat FRP tape for rodent protection.

· GYFTY73: FRP tape armor for rodent, bird, and lightning protection.

· GYFTS: Stainless steel tape for rodent and bird protection.

Special Cables:

· GJFJKH: Stainless Steel Flexible Hose for indoor protection against rodents.

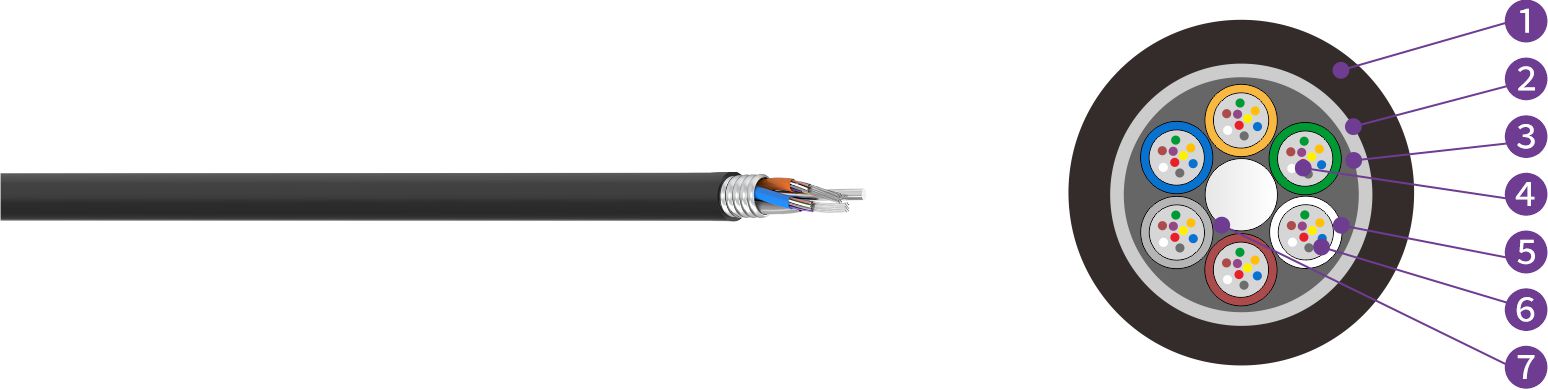

■ Cross Section:

1. PE Sheath     2. Stainless Steel Tape    3. Cable Filling Compound    4. Fibre    5. Loose Tube    6. Tube Filling Compound     7. Central Strength Member

■ Technical Characteristics:

GYKTS -02-30Xn

· Diameter: 5 mm

· Weight: 9.8 ± 0.1 kg/km

· Tension (Long/Short Term): 600/1500 N

· Crush Resistance (Long/Short Term): 1000/2000 N/100mm

GYKTS -32-36Xn

· Diameter: 6 mm

· Weight: 10.4 ± 0.1 kg/km

· Tension (Long/Short Term): 600/1500 N

· Crush Resistance (Long/Short Term): 1000/2000 N/100mm

GYKTS -38-60Xn

· Diameter: 5 mm

· Weight: 10.6 ± 0.1 kg/km

· Tension (Long/Short Term): 600/1500 N

· Crush Resistance (Long/Short Term): 1000/2000 N/100mm

GYKTS -62-72Xn

· Diameter: 6 mm

· Weight: 12.1 ± 0.1 kg/km

· Tension (Long/Short Term): 600/1500 N

· Crush Resistance (Long/Short Term): 1000/2000 N/100mm

■ Environmental Characteristics:

Transport/storage temperature: -40℃~70℃



■ Delivery Length:

Standard length: 2000m; Other lengths available
