GYXTY Anti-Rodent Anti-Birds Steel Wires Uni-tube Fiber Optic Cable

GYXTY Anti-Rodent Anti-Birds Steel Wires Uni-tube Fiber Optic Cable

■ Introduction:

ZION provides optical cables that resistant to biological hazards caused by rodents,termites and birds,etc. after installation.Optical cables are often damaged by rodents.Termites not only bite,but also release formic acid to the cables.We design methods include physical(include metallic and glass fiber armor and nylon sheath) and chemical methods(Spicy additives ) agsinst biological hazards

■ Features:

• Accurate process control ensuring good mechanical and temperature performances

• The material of loose tubes with good hydrolysis resistance and high strength

• Tube filling compound providing the key protection for fibres

• Excellent crush resistance and flexibility

• Stainless Steel wire armors providing excellent anti-rodent performance

■ Main Methods:

Physical Methods:

  Metallic Armors:

   Stainless steel tape

   Steel wires

   Protects against rodents and birds

  Non-Metallic Armors:

   FRP (Fiber Reinforced Plastic)

   Glass yarn

   Nylon sheath and outer sheath

   Protects against rodents, birds, and termites

Chemical Methods:

   Chemical additives (spicy additives)

   Protects against rodents and termites

■ Product Series:

Uni-Tube

GYGXZY04: Glass fiber tape + Nylon sheath, protects against rodents, termites, and lightning

GYXTY53: Stainless steel tape + wire, protects against rodents and birds

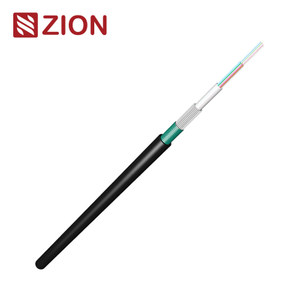

GYXTS: Stainless steel tape + wire, protects against rodents and birds

GYXTY: Stainless steel wire, protects against rodents and birds

GYFXTY: FRP Armor, protects against rodents, birds, and lightning

Stranded loose tube

GYFTA53: Aluminum tape + steel tape, protects against rodents

GYFTA54: Steel tape + nylon sheath, protects against rodents and termites

GYFTY83(FS): Flat FRP tape, protects against rodents

GYFTY73: FRP tape armor, protects against rodents, birds, and lightning

GYFTS: Stainless steel tape, protects against rodents and birds

Special

GJFJKH: Stainless steel flexible hose, used for indoor protection from rodents

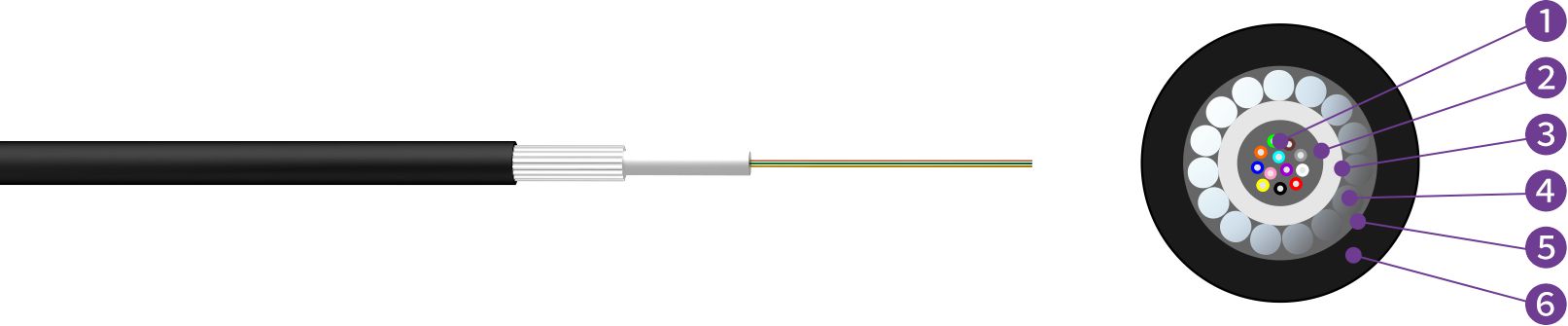

■ Cross Section:

1.  Fibers   2. Tube Filling Compound   3. Loose Tube    4. Steel wire   5.  Cabling compound   6. PE Sheath

■ Technical Characteristics:

GYXTY-02-12Xn

• Diameter: 2.5 mm

• Weight: 7.7 ± 0.1 kg/km (2.0 mm Thickness)

• Tension (Long/Short): 600/1500 N

• Crush Resistance (Long/Short): 1000/3000 N/100mm

GYXTY-14-18Xn

• Diameter: 2.8 mm

• Weight: 8.0 ± 0.1 kg/km (2.0 mm Thickness)

• Tension (Long/Short): 1000/3000 N

• Crush Resistance (Long/Short): 1000/3000 N/100mm

GYXTY-20-24Xn

• Diameter: 3.2 mm

• Weight: 8.4 ± 0.1 kg/km (2.0 mm Thickness)

• Tension (Long/Short): 1000/3000 N

• Crush Resistance (Long/Short): 1000/3000 N/100mm

GYXTY-26-30Xn

• Diameter: 3.5 mm

• Weight: 8.7 ± 0.1 kg/km (2.0 mm Thickness)

• Tension (Long/Short): 1000/3000 N

• Crush Resistance (Long/Short): 1000/3000 N/100mm

GYXTY-32-36Xn

• Diameter: 3.8 mm

• Weight: 9.0 ± 0.1 kg/km (2.0 mm Thickness)

• Tension (Long/Short): 1000/3000 N

• Crush Resistance (Long/Short): 1000/3000 N/100mm

Note: The outer diameter can be adjusted to suit specific budget requirements.

■ Environmental Characteristics:

Transport/storage temperature: -40℃~70℃



■ Delivery Length:

Standard length:2000m;Other length availabe
