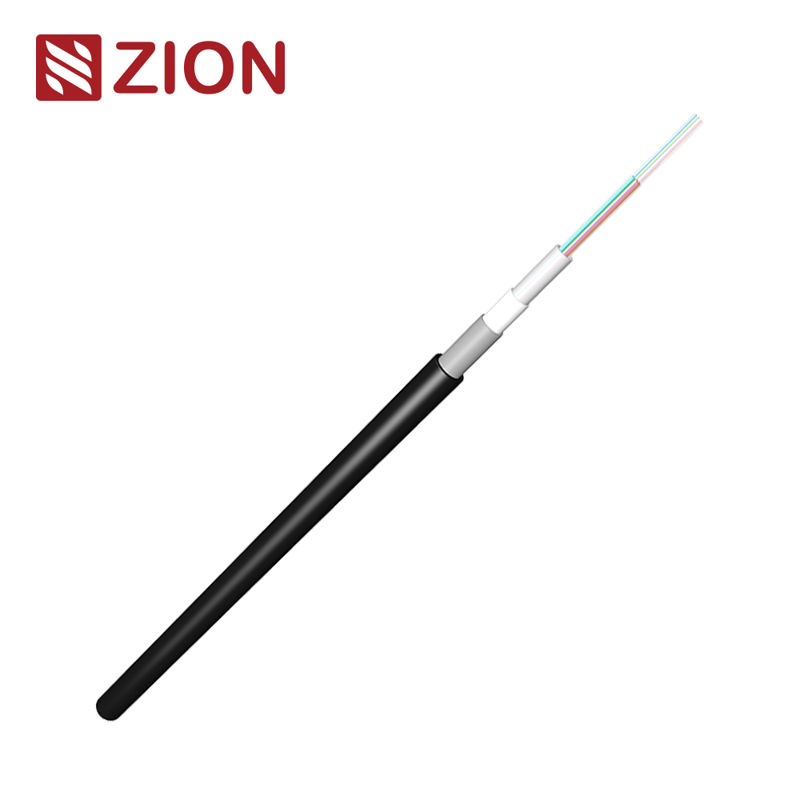

GYGXZY04 Anti-Rodent Anti-Termite Glass Fibre Tape Nylon Sheath Uni-tube Fiber Optic Cable

■ Introduction:

ZION provides optical cables resistant to biological hazards caused by rodents,termites birds,etc. after installation.Rodents often damage optical cables.Termites not only bite but also release formic acid to the cables.We design methods include physical(including metallic and glass fiber armor and nylon sheath) and chemical methods(Spicy additives ) against biological hazards

■ Features:

• Accurate process control ensures good mechanical and temperature performances


• All-dielectric design,applicable to lightning-prone areas


• Small size and light weight


• Glass fiber yarns provide certain anti-rodent performance


• nylon outer sheath with high hardness providing certain anti-termite performance

■ Main Methods:

Physical Methods

• Metallic Armors:

• Stainless Steel Tape: Protects from rodents and birds.

• Steel Wires: Protects from external damage.

• Non-Metallic Armors:

• FRP (Fiber Reinforced Polymer): Protection against rodents and birds.

• Glass Yarn: Protection from rodents.

• Nylon Sheath: Protects from termites.

• Nylon Outer Sheath: Additional protection from termites.

Chemical Methods

• Chemical Additives: Protects against rodents and termites.

• Spicy Additives: Used for rodent and termite protection.

■ Product Series:

Uni-Tube Cables:

· GYGXZY04: Glass fiber tape + Nylon sheath for rodent, termite, and lightning protection.

· GYXTY53: Stainless steel tape + wire for rodent and bird protection.

· GYXTS: Stainless steel tape + wire for rodent and bird protection.

· GYXTY: Stainless steel wire for rodent and bird protection.

· GYFXTY: FRP Armor for rodent, bird, and lightning protection.

Stranded Loose Tube Cables:

· GYFTA53: Aluminum tape + steel tape for rodent protection.

· GYFTA54: Steel tape + nylon sheath for rodent and termite protection.

· GYFTY83(FS): Flat FRP tape for rodent protection.

· GYFTY73: FRP tape armor for rodent, bird, and lightning protection.

· GYFTS: Stainless steel tape for rodent and bird protection.

Special Cables:

· GJFJKH: Stainless Steel Flexible Hose for indoor protection against rodents.

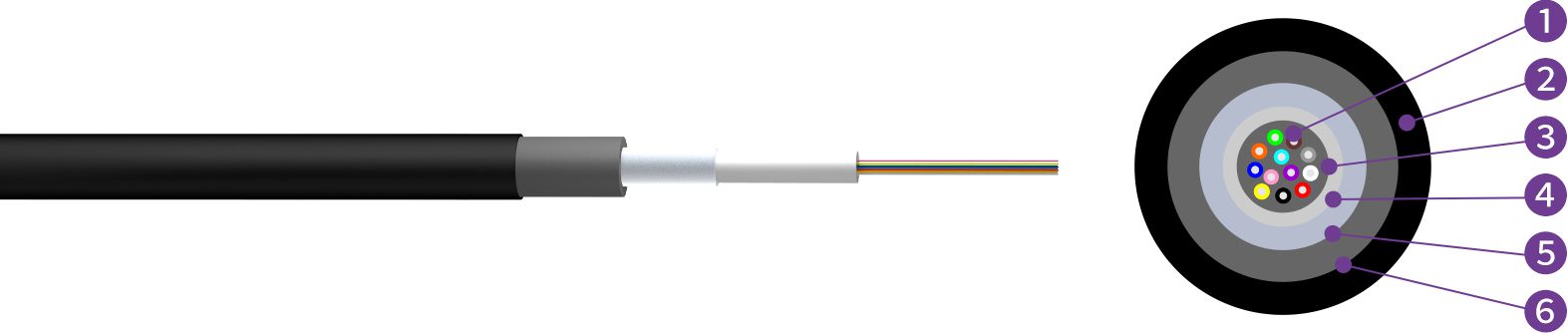

■ Cross Section:

1.  Fibers    2. PA Outer Sheath  3. Tube Filling Compound   4. Loose Tube  5. Glass fiber Yarn  6.  LSZH Inner sheath

■ Technical Characteristics:

Type: GYGXZY04 -02-12Xn

Diameter of Uni-tube: 2.8

Diameter(mm): 7.5±0.1

Weight (kg/km): 50

Tension(N) Long/short: 600/1500

Crush Resistance Long/short (N/100mm): 300/1000

Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

■ Environmental Characteristics:

Transport/storage temperature: -20℃~70℃



■ Delivery Length:

Standard length: 2000m; Other lengths available
