GJFJKH Indoor Anti-Rodent Steel Flexible Hose Fiber Optic Cable

GJFJKH                                                                                        Indoor Anti-Rodent Steel Flexible Hose Fiber Optic Cable

Introduction:

ZION provides optical cables that resistant to biological hazards caused by rodents,termites and birds,etc. after installation.Optical cables are often damaged by rodents.Termites not only bite,but also release formic acid to the cables.We design methods include physical(include metallic and glass fiber armor and nylon sheath) and chemical methods(Spicy additives ) agsinst biological hazards
Tight buffered fibres are housed in a metallic hose made of stainless steel tape. The hose is wrapped with aramid yarns,then a LSZHouter sheath is extruded.The tight buffered fibres are made by extruding a buffer layer on the surface of optical fibres.

Features:

All-dry design,green and environment-friendly
Aramid yarns ensuring tensile strength and providing good protection fortight buffered fibres
Metallic hose with good flexibility providing certain anti-rodent performance
Outer sheath with flame-retardant performance, applicable to indoor installation
Small size and light weight, easy for installation
Applicable to indoor anti-rodent use

Main Methods:

Physical methods

Metallic armors

Stainless steel tape

Rodent and Birds

Steel wires

Non-Metallic armors

FRP

Rodent and Birds

Glass Yarn

Rodent

Nylon sheath

Nylon outer sheath

Termite

Chemical methods

Chemical additives

Spicy additives

Rodent and Termite

Product Series:

Uni-Tube

GYGXZY04

Glass fibre tape+Nylon  sheath

Rodent,Termite,Lightning

GYXTY53

Stainless steel tape+wire

Rodent,Birds

GYXTS

Stainless steel tape+wire

Rodent,Birds

GYXTY

Stainless steel wire

Rodent,Birds

GYFXTY

FRP Armor

Rodent,Birds,Lightning

Stranded loose tube

GYFTA53

Aluminum tape+steel tape

Rodent

GYFTA54

steel tape+nylon sheath

Rodent,Termite

GYFTY83(FS)

Flat FRP tape

Rodent

GYFTY73

FRP tape armor

Rodent,Birds,Lightning

GYFTS

Stainless steel tape

Rodent,Birds

Special

GJFJKH

Stainless Steel Flexible Hose

Indoor protection from Rodent

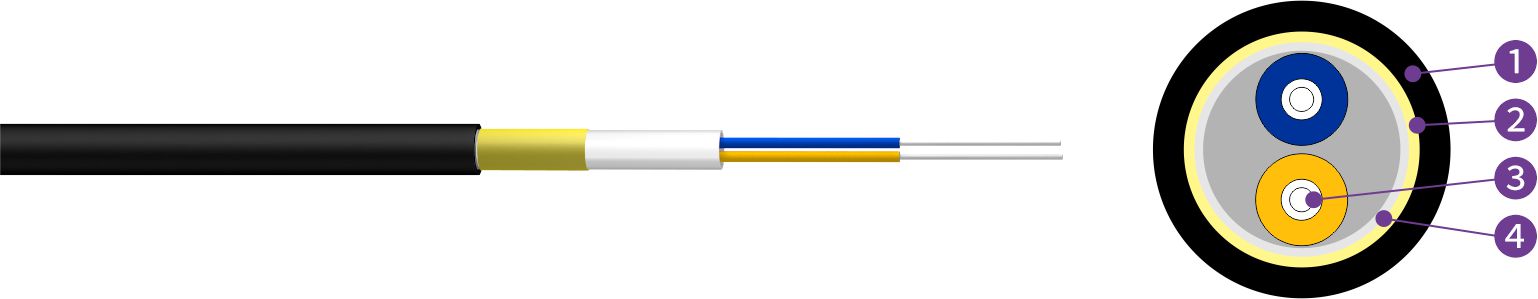

Cross Section:

1,LSZH Sheath    2,Aramid Yarn    3,Tight Buffered Fibre    4,Helical Steel  Hose

Technical Characteristics:

Type

Fiber Diameter
mm

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

GJFJKH -1Xn

0.9

3.0±0.1

18

100/200

3000/5000

GJFJKH -2Xn

0.9

4.8±0.1

38

200/400

3000/5000

GJFJKH -2Xn

0.6

3.0±0.1

24

100/200

3000/5000

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Environmental Characteristics:

  Transport/storage temperature: -40℃~70℃

Delivery Length:

 Standard length:2000m;Other length availabe
