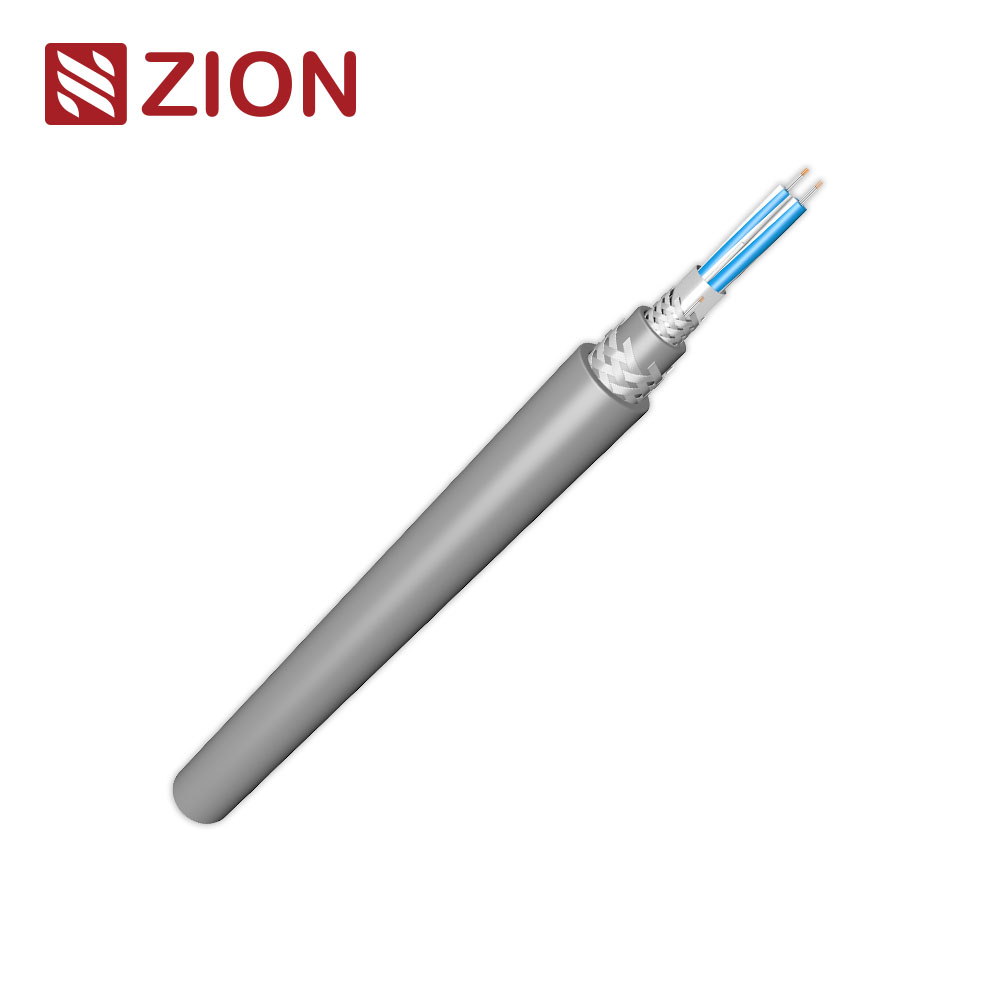

RS485 Amour Cable, 24AWG 1P, Foil+Braid, LSZH/SWB/LSZH, 120Ω
SKU: 732016
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks
Component | Specification |

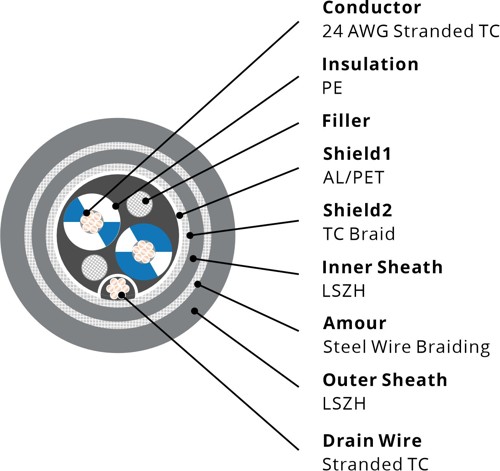

Conductor | 1pair, AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Insulation Material | Foam Polyethylene (FPE) |
Insulation Thickness | 0.023 in (0.58 mm) |
Insulation Diameter | 0.068 in (1.7 mm) |
Color Code (per pair) | White/Blue & Blue/White |
Or Type 2 | Each Pair: Pure Color & White: |
Shield 1 (Foil) | Overall (Aluminum + Polyester), ＞110% coverage |
Drain Wire | AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Shield 2 (Braid) | Tinned Copper Braid, 90% coverage |
Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant), |
Jacket Thickness | 0.035 in (0.9 mm) |
Overall Diameter | 0.240 in (6.10±0.5mm) |
Amour (Optinonal) | 0.20mm Steel Wire Braiding |
Outer Jacket | 10.7 ±0.5mm LSZH |
Property | Value |
Conductor DCR | 78.7 Ohm/km (24 Ohm/1000 ft) |
Capacitance (Cond–Cond) | 42 pF/m (13 pF/ft) |
Capacitance (Cond–Shield) | 75.5 pF/m |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 66% |
Max Current (Per Conductor) | 2.1 Amps @ 25°C (with 10°C temperature rise) |
Insertion Loss (1 MHz) | 1.97 dB/100 m |
Voltage Rating | 300 V |
Property | Value |
Operating Temperature Range | -20°C to +70°C |
Bend Radius (Min.) | 10×D |
Standard / Regulation | Compliance |
Flammability | IEC 60332-3-22, IEC 60332-3-24 |
CPR / Euroclass Compliance | Eca |
Smoke Density | IEC 61034-2, Light Transmittance ≥ 60% |
Halogen-Free Standards | IEC 60754-1 (Zero halogen) |
CENELEC / ISO Compliance | EN 50290-2-20 |
European Directive Compliance | CE Mark, RoHS |
Environmental Suitability | Indoor, LSZH, UV |
RS485 Amour Cable, 24AWG 1P, Foil+Braid, LSZH/SWB/LSZH, 120Ω
SKU: 732016
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks
Component | Specification |
Conductor | 1pair, AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Insulation Material | Foam Polyethylene (FPE) |
Insulation Thickness | 0.023 in (0.58 mm) |
Insulation Diameter | 0.068 in (1.7 mm) |
Color Code (per pair) | White/Blue & Blue/White |
Or Type 2 | Each Pair: Pure Color & White: |
Shield 1 (Foil) | Overall (Aluminum + Polyester), ＞110% coverage |
Drain Wire | AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Shield 2 (Braid) | Tinned Copper Braid, 90% coverage |
Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant), |
Jacket Thickness | 0.035 in (0.9 mm) |
Overall Diameter | 0.240 in (6.10±0.5mm) |
Amour (Optinonal) | 0.20mm Steel Wire Braiding |
Outer Jacket | 10.7 ±0.5mm LSZH |
Property | Value |
Conductor DCR | 78.7 Ohm/km (24 Ohm/1000 ft) |
Capacitance (Cond–Cond) | 42 pF/m (13 pF/ft) |
Capacitance (Cond–Shield) | 75.5 pF/m |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 66% |
Max Current (Per Conductor) | 2.1 Amps @ 25°C (with 10°C temperature rise) |
Insertion Loss (1 MHz) | 1.97 dB/100 m |
Voltage Rating | 300 V |
Property | Value |
Operating Temperature Range | -20°C to +70°C |
Bend Radius (Min.) | 10×D |
Standard / Regulation | Compliance |
Flammability | IEC 60332-3-22, IEC 60332-3-24 |
CPR / Euroclass Compliance | Eca |
Smoke Density | IEC 61034-2, Light Transmittance ≥ 60% |
Halogen-Free Standards | IEC 60754-1 (Zero halogen) |
CENELEC / ISO Compliance | EN 50290-2-20 |
European Directive Compliance | CE Mark, RoHS |
Environmental Suitability | Indoor, LSZH, UV |
