RS485 Cable
hellosignal
732026
Power and Control Cables

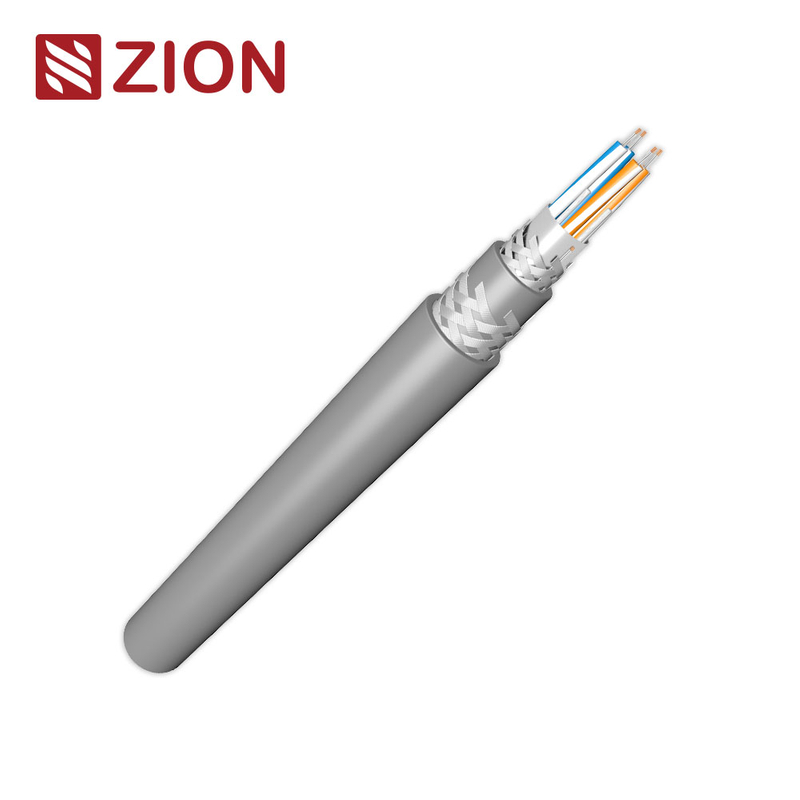

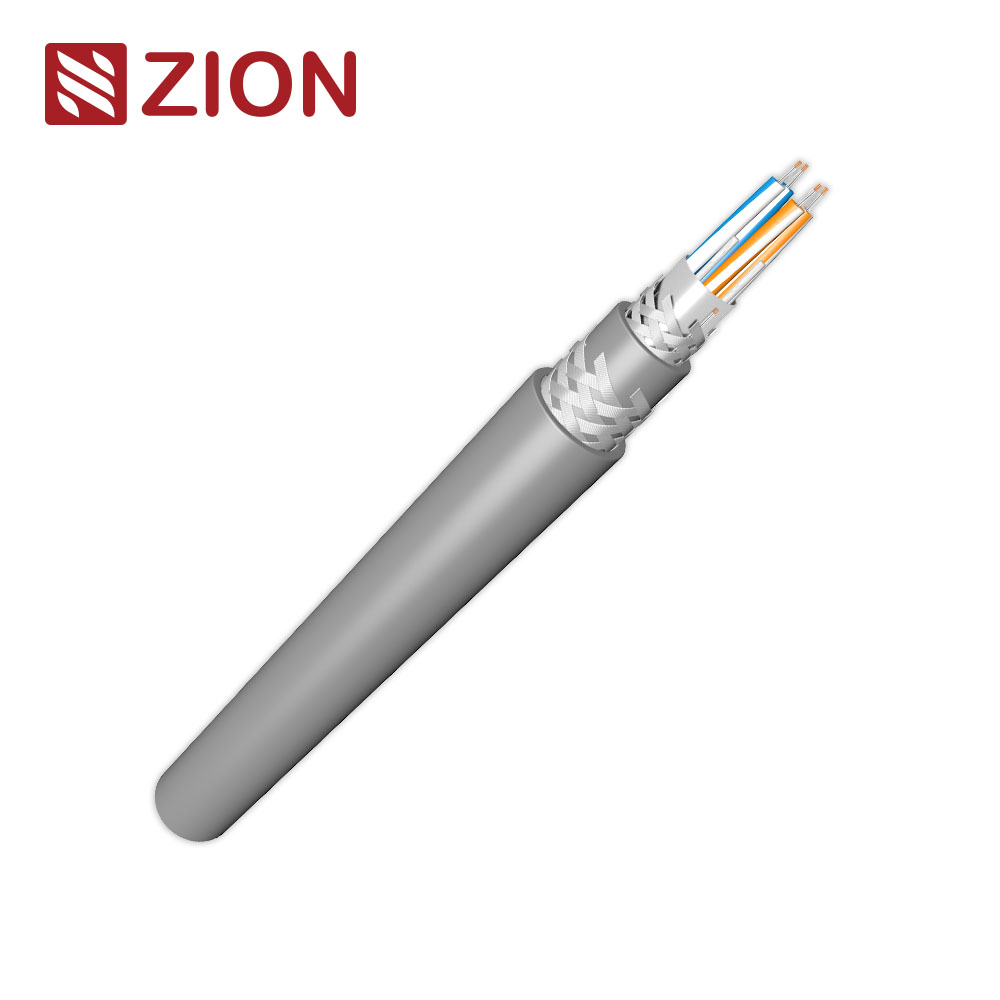

RS485 Amour Cable, 24AWG 2P, Foil+Braid, LSZH/SWB/LSZH, 120Ω
SKU: 732026
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks

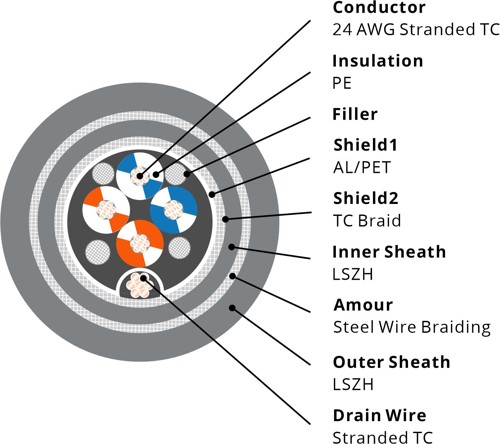

Component | Specification |
Conductor | 2 Pairs, AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Insulation Material | Foam Polyethylene (FPE) |
Insulation Thickness | 0.022 in (0.56 mm) |
Insulation Diameter | 0.068 in (1.7 mm) |
Color Code (per pair) | 1. White/Blue & Blue/White |
Or Type 2 | Each Pair: Pure Color & White: |
Shield 1 (Foil) | Overall (Aluminum + Polyester), ＞110% coverage |
Drain Wire | AWG 24 (7/32# = 7/0.202 mm) stranded tinned copper (TC) |
Shield 2 (Braid) | Tinned Copper Braid, 90% coverage |
Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant), |
Jacket Thickness | 0.035 in (0.9 mm) |
Overall Diameter | 0.341 in (8.65±0.5mm) |
Amour (Optinonal) | 0.20mm Steel Wire Braiding |
Outer Jacket | 13.0 ±0.5mm LSZH |
Property | Value |
Conductor DCR | 78.7 Ohm/km (24.0 Ohm/1000 ft) |
Capacitance (Cond–Cond) | 42 pF/m (13 pF/ft) |
Capacitance (Cond–Shield) | 75.5 pF/m |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 66% |
Max Current (Per Conductor) | 2.1 Amps |
Insertion Loss (1 MHz) | 1.97 dB/100 m |
Voltage Rating | 300 V |
Property | Value |
Operating Temperature Range | -20°C to +70°C |
Bend Radius (Min.) | 10×D |
Standard / Regulation | Compliance |
Fire / Flame Rating | IEC 60332-1-2, IEC 60332-3-24 |
CPR Classification | Eca |
Smoke Emission (IEC 61034-2) | Minimum Transmittance ≥ 60% |
Halogen-Free Tests | IEC 62821-1, IEC 60754-1 (Zero Halogen), |
CENELEC Compliance | EN 50290-2-20 |
European Directives | EU CE Mark, RoHS |
Environmental Suitability | Indoor, Sunlight-Resistant, Non-Halogenated, Oil Resistant |
