RS-485
hellosignal
Industrial Data Cable
UL, ETL, CE, CPR, RoHS
roll, wooden spool, carton, pallet
Normally 25 working days
NINGBO, SHANGHAI
Reliable Data Transmission · Industrial Durability · ETL Certified Quality

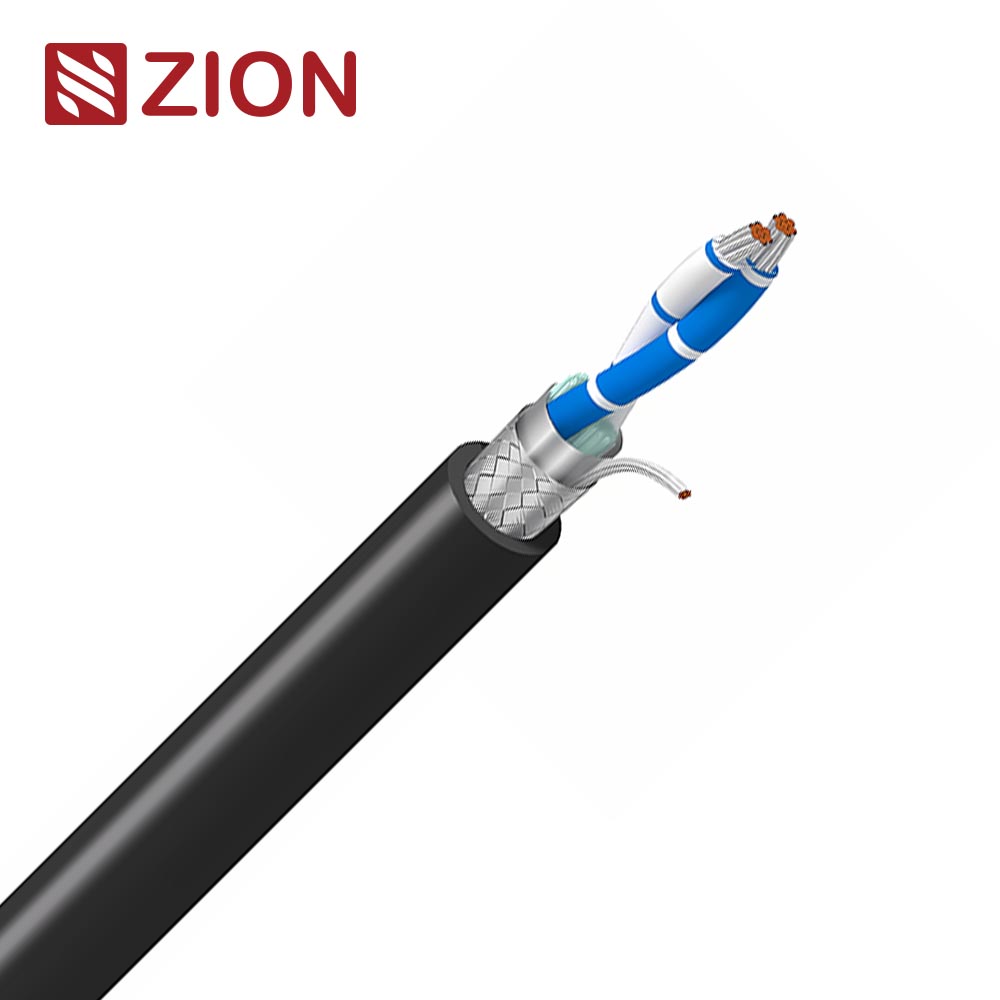

A high-performance cable designed for reliable data transmission in demanding industrial environments, featuring robust construction with multiple protective layers.
Durable Construction: Built to withstand harsh industrial environments
Enhanced Shielding: Dual-layer protection with foil and braided shielding
Environmental Resistance: Sunlight, oil, and outdoor exposure are resistant
High-Quality Conductors: Tinned copper for superior conductivity and corrosion resistance
Flexible Installation: Suitable for both stationary and mobile applications
Parameter | Value |
Type | 1 pair |
Size | 22 AWG |
Stranding | 7x30 |
Material | Tinned Copper |
Property | Value |
Material | PE (Polyethylene Foam) |
Thickness | 0.029 in (0.74 mm) |
Diameter | 0.087 in (2.2 mm) |
Color Code | White/Blue & Blue/White stripe |
Layer | Type | Coverage | Material |
Primary | Tape | 1 | Bi-laminate (Alum+Poly) |
Secondary | Braid | 0.65 | Tinned Copper |
Drain Wire | - | - | 22 AWG TC |
Parameter | Value |
DC Resistance | 18.2 Ω/1000ft |
Capacitance (Cond-Cond) | 11 pF/ft |
Capacitance (Cond-Shield) | 20.9 pF/ft |
Velocity of Propagation | 0.78 |
Max Current (30°C) | 6 A per conductor |
Frequency | Insertion Loss |
1 MHz | 0.5 dB/100ft |
Parameter | Value |
Voltage Rating | 300V |
Temperature Range | -20°C to +60°C |
Bend Radius | 3.372 in (85.65 mm) |
Max Pull Tension | 53.34 lbs (24.19 kg) |
Weight | 43 lbs/1000ft |
Standard | Compliance |
Safety | UL 1685, IEC 60332-1-2 |
Environmental | Sunlight, oil-resistant |
Regulations | CE, UKCA, RoHS, WEEE |
NEC/UL | Article 725, 800 |
■ Applications
Industrial IoT networks
Factory automation systems
Process control installations
Video surveillance
Audio transmission
Harsh environment data communication
■ Why Choose Zion Communication?
Zion Communication manufactures high-quality RS485 cables:
ETL recognized against UL 13 (CL2P / CL3P) = acknowledged safety and code compliance
Having many choices of shielding, jacket and conductor
OEM assistance & custom cable development
World shipping & documentation of the industrial projects
Need Help Choosing?
Let our experts help you select the ideal cable for your environment.
Contact us for a customized solution, datasheet, or bulk OEM support.
Contact us for more information
