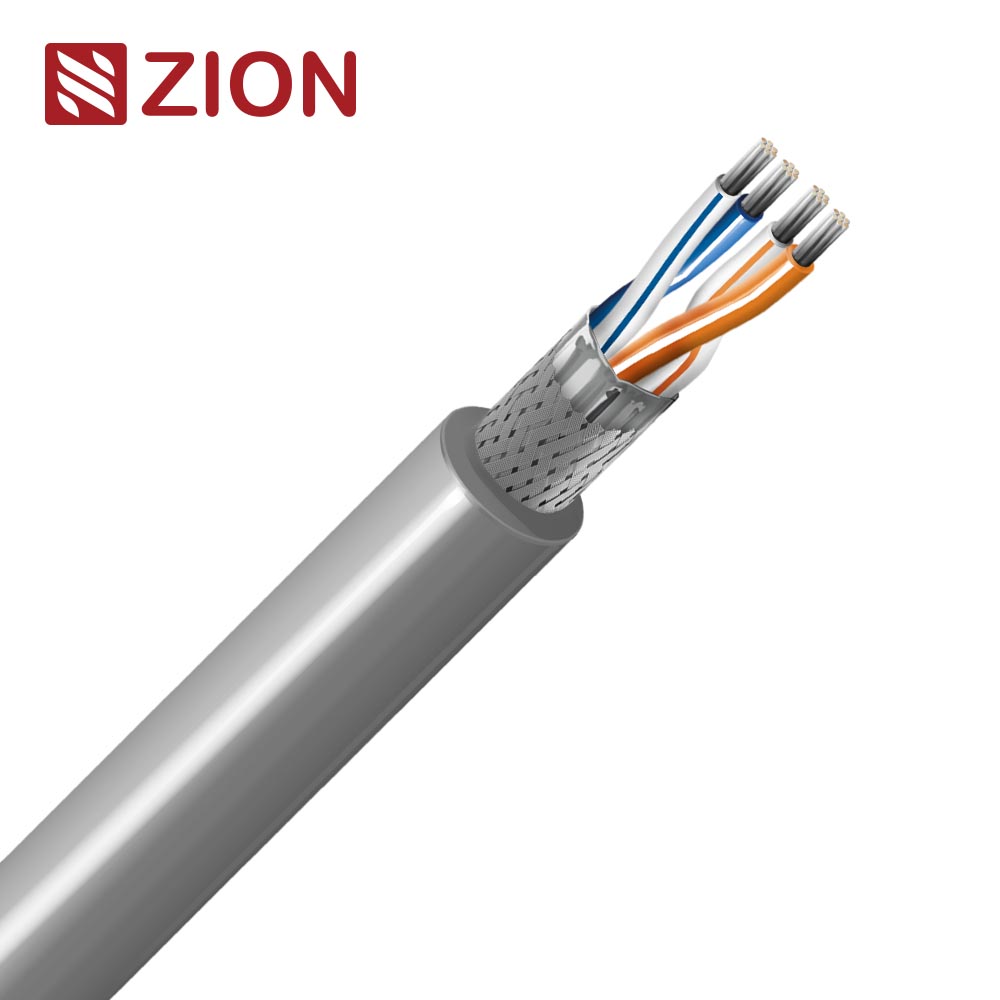

RS-485 9842 Shielded Data Cable works well for data transmission in industrial places. It has two pairs of wires. The wires are made of tinned copper. The cable has strong shielding. It keeps signals clear in noisy places.
Feature | Specification |
Wires | 2 pair 24AWG (7x32) tinned copper |
Covering | PE (Polyethylene) |
Shielding | Two layers: 100% foil + 90% tinned copper braid |
Outer Layer | PVC |
Impedance | 120 Ohm |
Temperature | -30°C to +80°C |
Certifications | CM rated, RoHS compliant |
Wires:
2 pairs of 24 AWG (7x32) tinned copper
DC Resistance: 24 Ohm/1000ft
Covering:
Material: Polyethylene (PE)
Thickness: 0.022 in (0.56 mm)
Diameter: 0.068 in (1.7 mm)
Colors:
Pair 1: White/Blue & Blue/White stripe
Pair 2: White/Orange & Orange/White stripe
Shielding:
First layer: 100% foil tape
Second layer: 90% tinned copper braid
Drain Wire: 24 AWG (7x32) tinned copper
Outer Layer:
Material: PVC
Thickness: 0.035 in (0.89 mm)
Diameter: 0.340 in (8.64 mm)
Parameter | Value | Unit |
Impedance | 120 | Ω |
Capacitance (Wire-Wire) | 12.8 | pF/ft |
Capacitance (Wire-Shield) | 23 | pF/ft |
Signal Speed | 66 | % |
Max Current | 2.1 | A at 25°C |
Shield Resistance | 2.2 | Ω/1000ft |
Signal Loss | 0.6 | dB/100ft |
Physical Properties
Parameter | Imperial | Metric |
Diameter | 0.340 in | 8.64 mm |
Bend Radius | 3.5 in | 89 mm |
Max Pull Force | 87 lbs | 39 kg |
Weight | 49 lbs/1000ft | - |
Safety: UL 1685, IEC 60332-1-2
Use: Indoor
Regulations: CE, UKCA, RoHS, China RoHS II
Standards: DMX-512 compatible
Ratings: CM, Article 800
Factory machines (PLCs, VFDs, HMIs)
Control systems (SCADA, RTUs)
Payment systems (POS)
Low power signals (4-20mA, 0-10V)
Digital controls (24V)
Audio signals
Equipment wiring
The cable comes in different lengths:
30m, 100ft, 152m, 305m, 500ft, 500m, 1000ft, 1000m, 1525m, 5000ft, 10000ft
Color: Chrome
