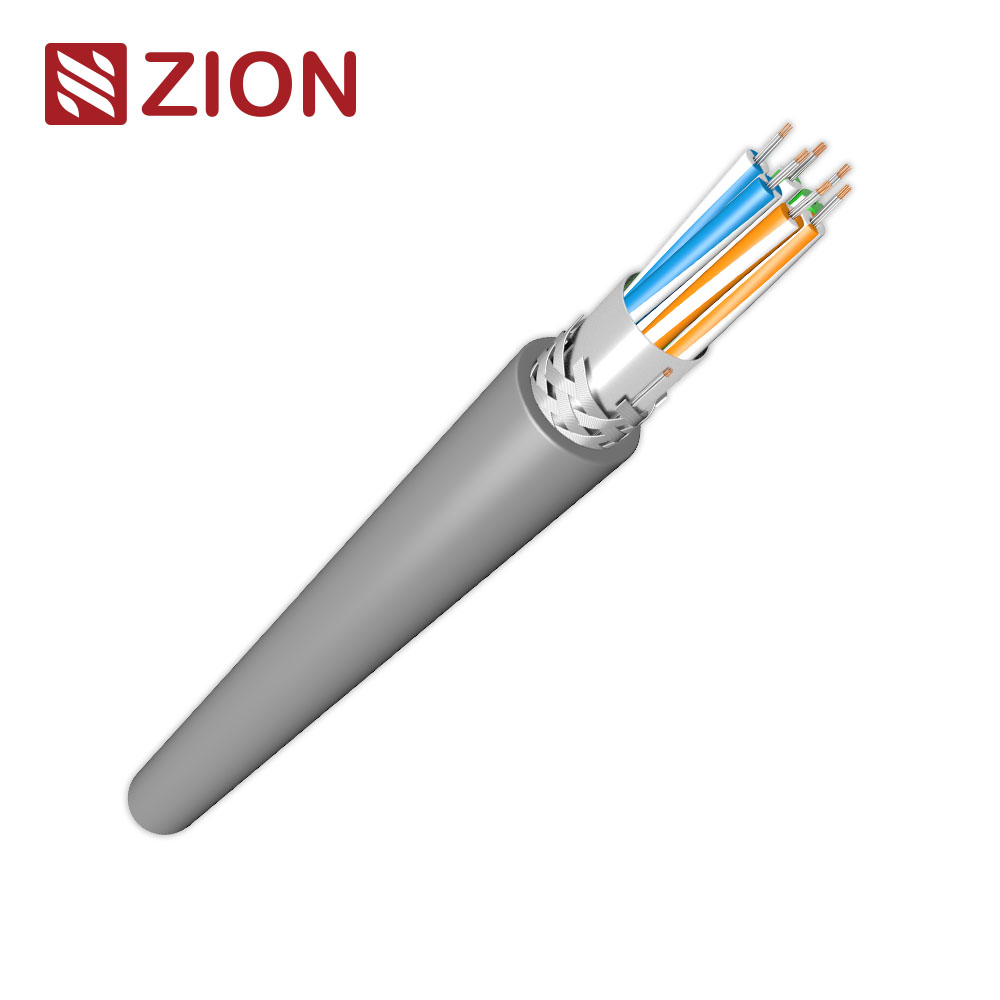

RS485 Cable, 24AWG 3P, Foil+Braid, LSZH Eca, 120Ω
SKU: 732031
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks
Component | Specification |

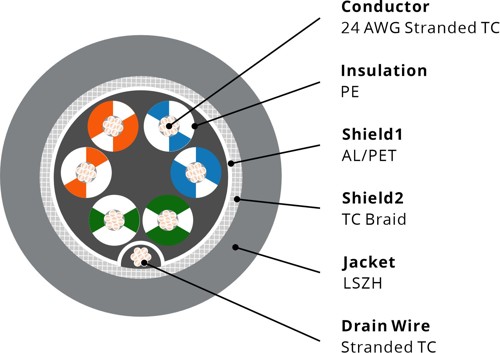

Conductor | 3 Pairs, AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Insulation Material | Polyethylene (PE) |
Insulation Thickness | 0.022 in (0.56 mm) |
Insulation Diameter | 0.0681 in (1.73 mm) |
Color Code (per pair) | 1. White/Blue & Blue/White, |
Or Type 2 | Each Pair: Pure Color & White: |
Shield 1 (Foil) | Overall (Aluminum + Polyester), ＞110% coverage |
Drain Wire | AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Shield 2 (Braid) | Tinned Copper Braid, 90% coverage |
Jacket Material | LSZH - Low Smoke Zero Halogen (Flame Retardant), |
Jacket Thickness | 0.035 in (0.9 mm) |
Overall Diameter | 0.358 in (9.10±0.5mm) |
Property | Value |
Conductor DCR | 78.7 Ohm/km (24 Ohm/1000 ft) |
Capacitance (Cond–Cond) | 42 pF/m (13 pF/ft) |
Capacitance (Cond–Shield) | 75.5 pF/m |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 66% |
Max. Current (Per Conductor) | 1.54 Amps |
Insertion Loss @ 1 MHz | 1.97 dB/100 m (0.60 dB/100 ft) |
Voltage Rating | 300 V |
Property | Value |
Operating Temperature | -45°C to +80°C |
Installation Temp. | -15°C to +80°C |
Storage Temp. | -45°C to +80°C |
Bend Radius | Stationary: 45 mm (1.8 in)Installation: 91 mm (3.6 in) |
Standard / Regulation | Compliance |
Fire / Flame Performance | IEC 60332-1-2, IEC 60332-3-24 |
CPR Compliance (EU) | CPR Euroclass: Eca |
Smoke Emission | IEC 61034-2: Min. transmittance ≥ 60% |
Halogen-Free Standards | IEC 62821-1, |
ISO/IEC Compliance | EN 50290-2-20 |
Environmental Suitability | Indoor, Non-Halogenated, Sunlight & Oil Resistant |
