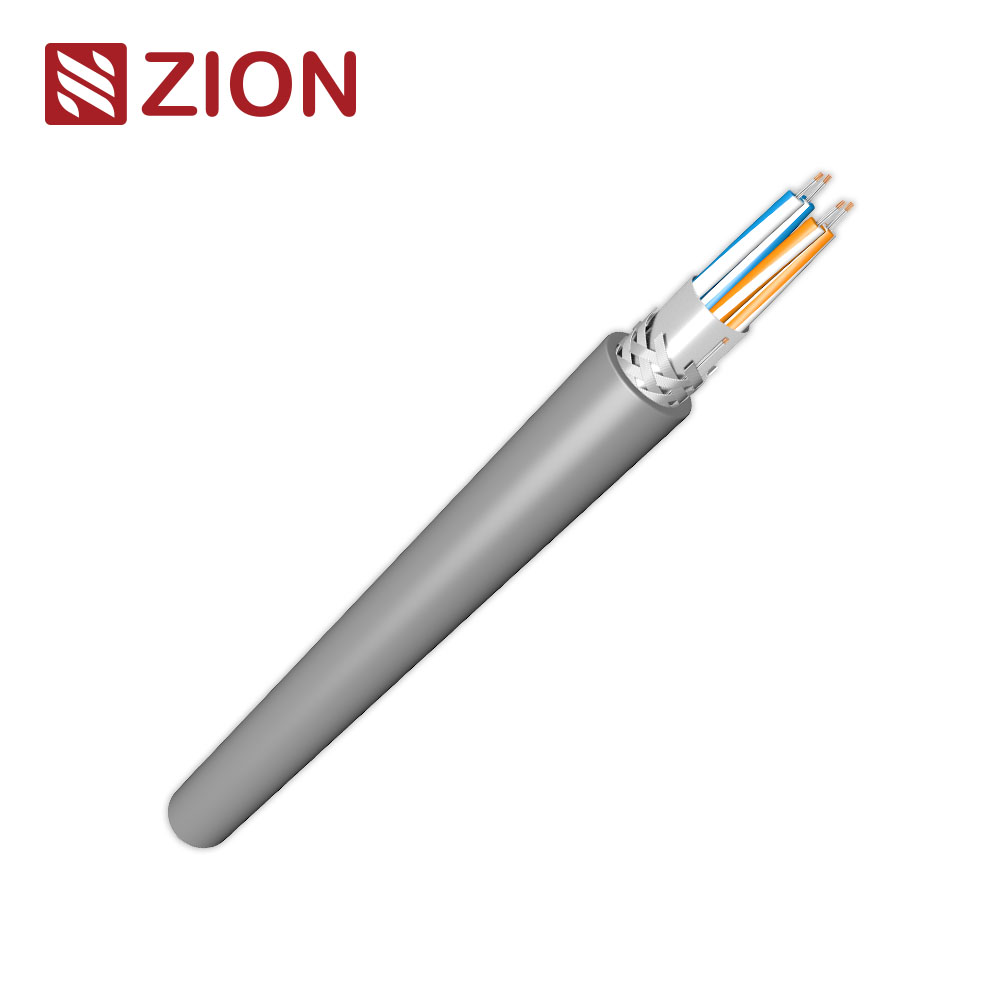

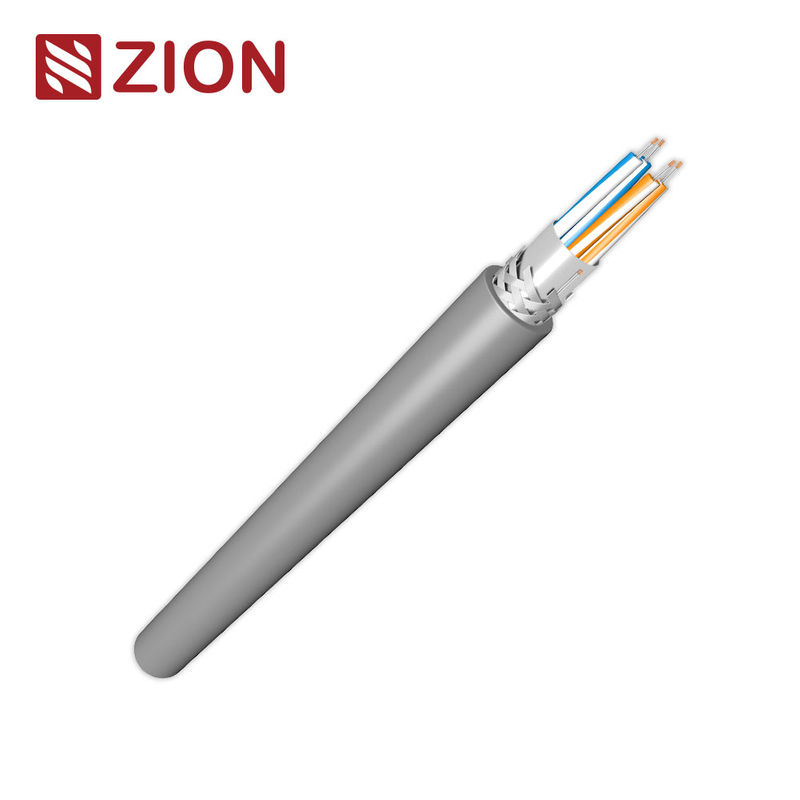

RS485 Cable, 24AWG 2P, Foil+Braid, PE, 120Ω
SKU: 732025
RS485/RS422/RS232 serial data communication
Industrial control systems (PLC, HMI, SCADA)
Building automation systems
Security and access control wiring
Point-to-point or multi-drop data networks
Component | Specification |

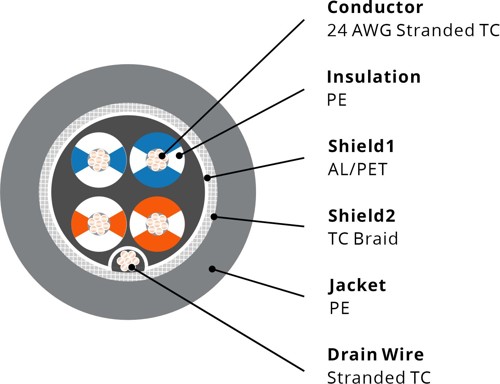

Conductor | 2 Pairs, AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Insulation Material | Polyethylene (PE) |
Insulation Thickness | 0.023 in (0.56 mm) |
Insulation Diameter | 0.068 in (1.73 mm) |
Color Code (per pair) | 1. White/Blue & Blue/White |
Or Type 2 | Each Pair: Pure Color & White: |
Shield 1 (Foil) | Overall (Aluminum + Polyester), ＞110% coverage |
Drain Wire | AWG 24 (7/32# = 7/0.20 mm) stranded tinned copper (TC) |
Shield 2 (Braid) | Tinned Copper Braid, 90% coverage |
Jacket Material | Polyethylene (PE), Color customization. |
Jacket Thickness | 0.035 in (0.9 mm) |
Overall Diameter | 0.341 in (8.65±0.5mm) |
Property | Value |
Conductor DCR | 78.7 Ohm/km (24.0 Ohm/1000 ft) |
Capacitance (Cond–Cond) | 42 pF/m (13 pF/ft) |
Capacitance (Cond–Shield) | 75.5 pF/m |
Characteristic Impedance | 120 Ohm |
Velocity of Propagation | 66% |
Max Current (Per Conductor) | 2.1 Amps |
Insertion Loss (1 MHz) | 1.97 dB/100 m |
Voltage Rating | 300 V |
Property | Value |
Operating Temperature | -45°C to +70°C |
Installation Temperature | -15°C to +70°C |
Storage Temperature | -45°C to +70°C |
Min. Bend Radius (Stationary) | 43 mm (1.7 in) |
Min. Bend Radius (Installation) | 86 mm (3.4 in) |
Max. Pull Tension | 395 N (88.8 lbs) |
Standard / Regulation | Compliance |
Halogen-Free Standards | IEC 62821-1: Yes |
European Directive Compliance | EU CE Mark |
Environmental Suitability | Water Exposure, Below-Grade Conduit, |
