RS-485
hellosignal
Industrial Data Cable
UL, ETL, CE, CPR, RoHS
roll, wooden spool, carton, pallet
Normally 25 working days
NINGBO, SHANGHAI
Reliable Data Transmission · Industrial Durability · ETL Certified Quality

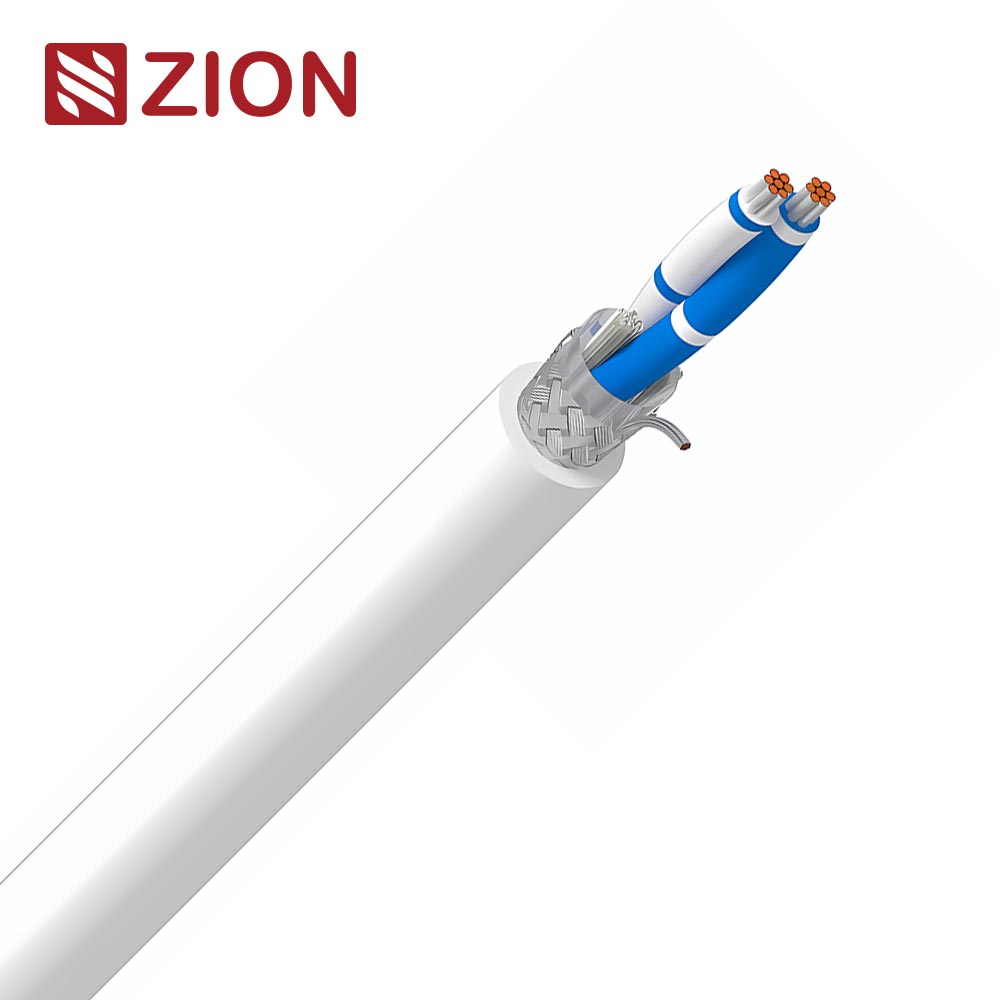

This high-performance 24AWG RS-485 cable is designed for reliable data transmission in industrial environments. Featuring premium tinned copper conductors and robust shielding, it delivers stable signal integrity for demanding applications.
Superior Shielding: Dual-layer protection with 100% foil + 90% braid coverage
Durable Construction: PE insulation with PVC jacket
Wide Temp Range: Suitable for harsh environments (-30°C to +80°C)
High Flexibility: 7x32 stranding for excellent bend radius
Industry Compliance: Meets major safety and regulatory standards
Parameter | Value |
Type | 1 pair |
Size | 22 AWG |
Stranding | 7x30 |
Material | Tinned Copper |
| DC Resistance | 24 Ω/1000ft |
Property | Value |
Material | PE (Polyethylene Foam) |
Thickness | 0.023 in (0.58 mm) |
Diameter | 0.068 in (1.7 mm) |
Color Code | White/Blue & Blue/White stripe |
Layer | Type | Coverage | Material |
Primary | Tape | 100% | Aluminum/Polyester Laminate |
Secondary | Braid | 90% | Tinned Copper |
Drain Wire | - | - | 24 AWG TC |
Parameter | Value | Unit |
Impedance | 120 | Ω |
Capacitance (Cond-Cond) | 12.8 | pF/ft |
Capacitance (Cond-Shield) | 23 | pF/ft |
Velocity of Propagation | 66 | % |
Temperature | Max Current |
25°C | 2.1 A |
(10°C temp rise) |
Characteristic | Imperial | Metric |
Outer Diameter | 0.232 in | 5.89 mm |
Bend Radius | 2.5 in | 64 mm |
Max Pull Tension | 72.3 lbs | 32.8 kg |
Cable Weight | 36 lbs/1000ft |
Parameter | Specification |
Temperature Range | -30°C to +80°C |
Voltage Rating | 300V |
Flame Rating | UL 1685, IEC 60332-1-2 |
Compliance | CM, RoHS, CE, UKCA |
■ Why Choose Zion Communication?
Zion Communication manufactures high-quality RS485 cables:
ETL recognized against UL 13 (CL2P / CL3P) = acknowledged safety and code compliance
Having many choices of shielding, jacket and conductor
OEM assistance & custom cable development
World shipping & documentation of the industrial projects
Need Help Choosing?
Let our experts help you select the ideal cable for your environment.
Contact us for a customized solution, datasheet, or bulk OEM support.
