RS-485
hellosignal
Control Cables
UL, ETL, CE, CPR, RoHS
roll, wooden spool, carton, pallet
Normally 25 working days

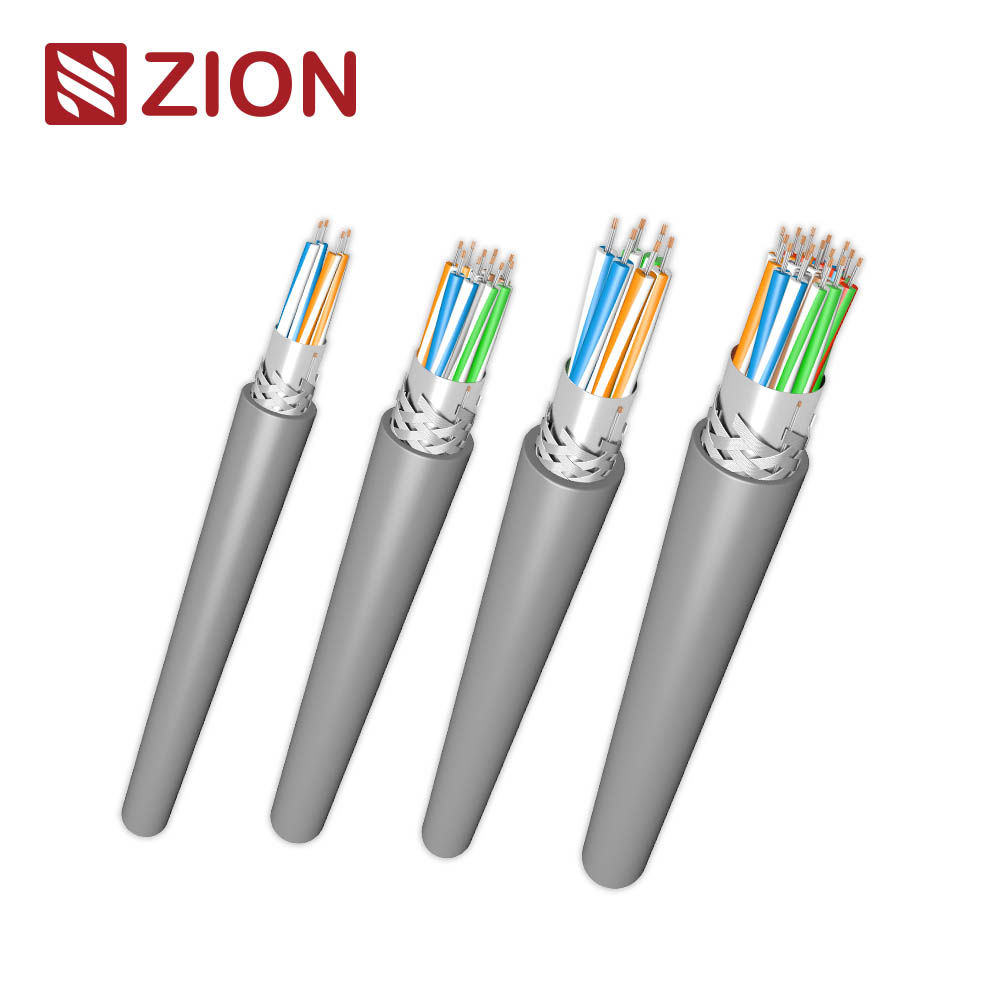

28AWG • 2–25 Pairs • Foil + Braid Shield • PVC Jacket • 120Ω
High-EMI Resistant Multi-Pair Data Cables for Industrial Automation & Serial Communication
Available Models:
73102 (2PR) · 73103 (3PR) · 73104 (4PR) · 73105 (5PR) · 73106 (8PR) · 73112 (12.5PR) · 73118 (18PR) · 73125 (25PR)
ZION COMMUNICATION’s RS485/RS232 Foil+Braid Shield Series is engineered for industrial-grade data transmission, offering excellent EMI/RFI protection, low signal loss, and high reliability in harsh electrical environments.
Using 28AWG stranded tinned copper conductors, Foam PE insulation, and double shielding (Aluminum Foil + Tinned Copper Braid), this series delivers 120Ω impedance, low capacitance, and stable differential signaling for RS485/RS422/RS232 communication systems.
Double Shielded Structure:
Aluminum Foil (100% coverage) + Tinned Copper Braid → superior EMI resistance, ideal for heavy industrial sites.
28AWG stranded tinned copper conductors ensure flexibility and strong signal integrity.
Foam PE insulation provides low capacitance for long-distance, high-speed communication.
120Ω characteristic impedance optimized for RS485/RS422/RS232 protocols.
Excellent crosstalk suppression for multi-pair high-density installations.
Durable PVC jacket, flame-retardant and suitable for indoor industrial environments.
Wide model range: 2–25 pairs for flexible system design.
Operating temperature: –20°C ~ +60°C.
Ideal for environments with motors, VFDs, inverters, relays, and switching power supplies.
RS485 / RS232 serial data transmission
PLC & DCS communication networks
Industrial automation and motion control
Factory instrumentation and monitoring systems
BMS / HVAC / Smart Building communication
Access control, security, alarm systems
Long-distance multi-pair control/monitoring cables
EMI-sensitive or electrically noisy industrial environments
| Component | Description |
|---|---|
| Conductor | 28AWG (7/0.127 mm) stranded tinned copper |
| Pair Structure | Twisted pairs with color-coded insulation |
| Insulation | Foam Polyethylene (FPE), low dielectric constant |
| Shield #1 | Overall aluminum/polyester foil, 100% coverage |
| Shield #2 | Tinned copper braid shield (typical 65–80% coverage) |
| Drain Wire | 28AWG stranded tinned copper |
| Jacket | Flame-retardant PVC, round |
| Color | Standard Gray (custom colors optional) |
| Ripcord | Included for easy stripping |
| Property | Value |
|---|---|
| Characteristic Impedance | 120 Ω |
| Conductor DC Resistance | ~73.5 Ω/1000 ft (241 Ω/km) @ 20°C |
| Capacitance (Cond–Cond) | ~12 pF/ft (40 pF/m)* |
| Capacitance (Cond–Shield) | ~20–25 pF/ft (65–82 pF/m)* |
| Velocity of Propagation | ~0.78 c |
| Voltage Rating | 150 V (CL2), 30 V (UL AWM 2919) |
| Max. Current | 0.9 A per conductor @ 30°C |
* Capacitance varies slightly depending on pair count.
| Property | Typical Value |
|---|---|
| Operating Temperature | –20°C to +60°C |
| Bend Radius (Installation) | ≥ 10 × cable O.D. |
| Bend Radius (Static) | ≥ 10 × cable O.D. |
| Environmental Suitability | Indoor / Dry / Damp Locations |
| Application Routing | Trays, conduits, raceways, control cabinets |
All models use identical materials and electrical design; outer diameter increases with pair count.
| SKU | Pairs | Conductors | Shielding | Nominal O.D. | Typical Use Case |
|---|---|---|---|---|---|
| 73102 | 2PR | 4 conductors | Foil + Braid | (from XLS) | Short point-to-point RS485 links |
| 73103 | 3PR | 6 conductors | Foil + Braid | (from XLS) | Multi-drop RS485 bus (3-channel) |
| 73104 | 4PR | 8 conductors | Foil + Braid | (from XLS) | PLC small control systems |
| 73105 | 5PR | 10 conductors | Foil + Braid | (from XLS) | Medium BMS/HVAC wiring |
| 73106 | 8PR | 16 conductors | Foil + Braid | (from XLS) | High-density RS485/RS422 networks |
| 73112 | 12.5PR | 25 conductors | Foil + Braid | (from XLS) | Industrial control cabinets |
| 73118 | 18PR | 36 conductors | Foil + Braid | (from XLS) | Multi-signal instrumentation |
| 73125 | 25PR | 50 conductors | Foil + Braid | (from XLS) | Large monitoring, I/O-intensive systems |
| Standard / Regulation | Details |
|---|---|
| UL AWM Style | 2919 |
| CL2 Rating | Class 2 Circuit Rated |
| RoHS | RoHS 2 (2011/65/EU) Compliant |
| CE Marking | Low Voltage Directive |
| Flame Performance | UL VW-1 or equivalent |
